Q1: Does the STW18 torque sensor support Modbus and CANopen communication?
Yes. The STW18 torque sensor supports optional Modbus RTU and CANopen communication protocols for industrial automation systems and remote data acquisition platforms.
Q2: What housing materials are available for the STW18 industrial torque sensor?
The STW18 industrial torque sensor is available in alloy steel or stainless steel housing, offering excellent mechanical strength and corrosion resistance for industrial environments.
Q3: What mounting method does the STW18 torque transducer use?
The STW18 torque transducer uses a dual-flange mounting structure, providing secure installation, high concentricity, and improved measurement stability for industrial equipment integration.
Q4: Is the STW18 static torque sensor suitable for continuous rotation applications?
The STW18 static torque sensor is mainly designed for static and intermittent rotary applications. It is not recommended for high-speed continuous dynamic torque measurement.

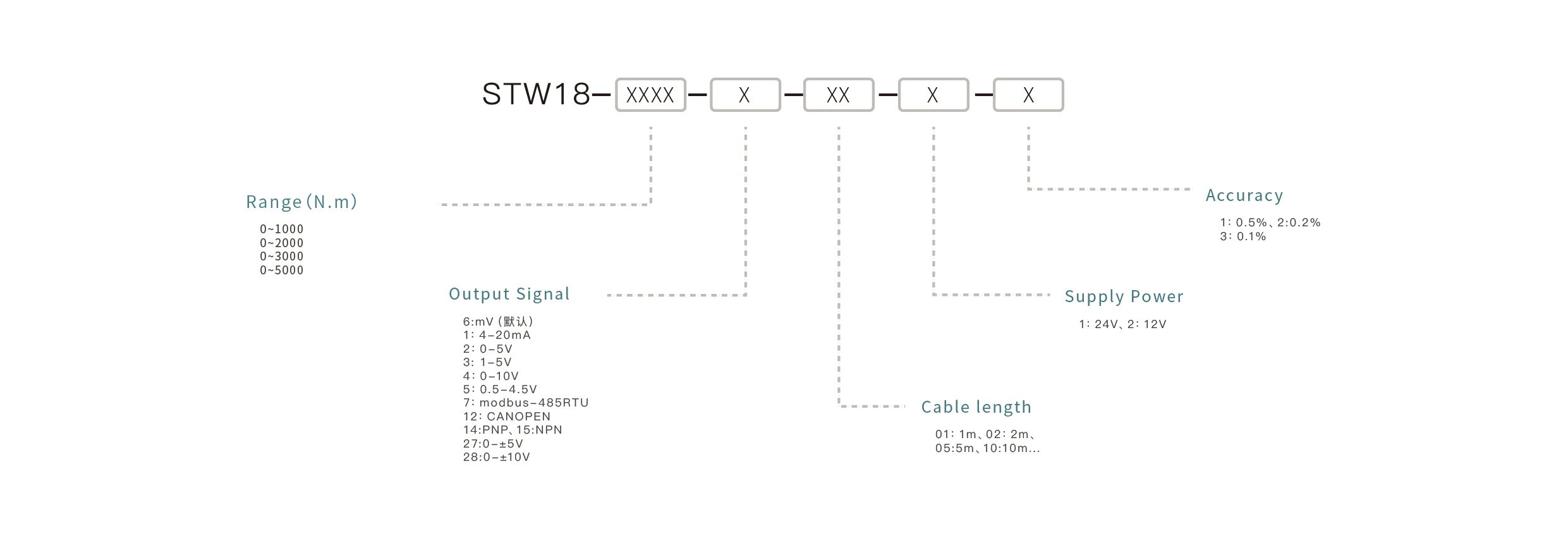

Q5: Can the STW18 torque sensor be customized for different ranges?
Yes. The STW18 torque sensor supports multiple ranges from 0~1000N·m to 0~5000N·m and can be customized according to specific application and output requirements.
Q6: What is the accuracy of the STW18 high accuracy torque sensor?
The STW18 high accuracy torque sensor offers comprehensive accuracy up to 0.1% F.S, with excellent repeatability, linearity, and long-term stability for demanding industrial measurement applications.
Q7: What output signals does the STW18 dual flange torque sensor support?
The STW18 dual flange torque sensor supports multiple analog and digital outputs, including mV, 4-20mA, 0-5V, 1-5V, 0-10V, ±5V, ±10V, Modbus RTU, CANopen, PNP, and NPN for easy integration with PLCs and industrial control systems.
Q8: What applications is the STW18 torque sensor suitable for?
The STW18 torque sensor is suitable for industrial automation, assembly line torque control, motor testing, gearbox monitoring, power transmission systems, robotic equipment, and laboratory testing applications involving static or intermittent rotary torque measurement.
