STW14 Column Type External Thread Tension Load Cell

The STW14 Column Type External Thread Tension Load Cell is designed with a high-strength alloy steel structure, offering wide measuring ranges, high accuracy, excellent stability, and reliable performance. It is widely used in electronic weighing systems, lifting equipment, industrial automation, force measurement, and process control applications. The capacity range covers 0~100KN to 0~2000KN, with multiple output options available, including mV, 4-20mA, 0-10V, Modbus-485RTU, and CANOPEN, meeting various industrial monitoring and control requirements. With comprehensive accuracy up to 0.05%F.S, the sensor provides excellent anti-interference capability, low temperature drift, and high overload resistance for long-term stable operation. STW14 supports flexible installation and signal configurations, making it an ideal solution for heavy-duty tension testing, machinery monitoring, and intelligent force measurement systems.

1. Key Features

High Accuracy Measurement
High stability and strong anti-interference capability
Column-type internal thread design for easy installation and strong compatibility
Various output signal options available

2. Technical Specifications

General Electrical Data

Capacity Range	0~100, 0~200, 0~300, 0~500, 0~700, 0~1000, 0~1500, 0~2000KN (all capacities available between 0~100KN and 0~2000KN)
Sensitivity	1.5mV/V
Bridge Excitation Voltage	5–12VDC(Recommended: 10 VDC)
Output Signal	mV/V (default), 4–20mA, 0–5V, 1–5V, 0–10V, 0.5–4.5V, RS485 Modbus RTU, CANopen, PNP, NPN

Performance Specifications

Comprehensive Accuracy	0.05%F.S, 0.1%F.S, 0.2%F.S (including linearity, hysteresis, and repeatability)
Creep Error
Zero Balance	±1%F.S
Zero Temperature Effect	±0.05%F.S/10°C
Output Temperature Effect	±0.05%F.S/10°C
Safe Overload	150%F.S
Operating Temperature Range	-20°C to +65°C

3. Applications

Industrial Automation Equipment
Warehousing and logistics
Electronic weighing and weighing systems
Tension testing and force measurement equipment
Warehouse Scales and Industrial Weighing Equipment
Other industrial applications

4. Selection Guide

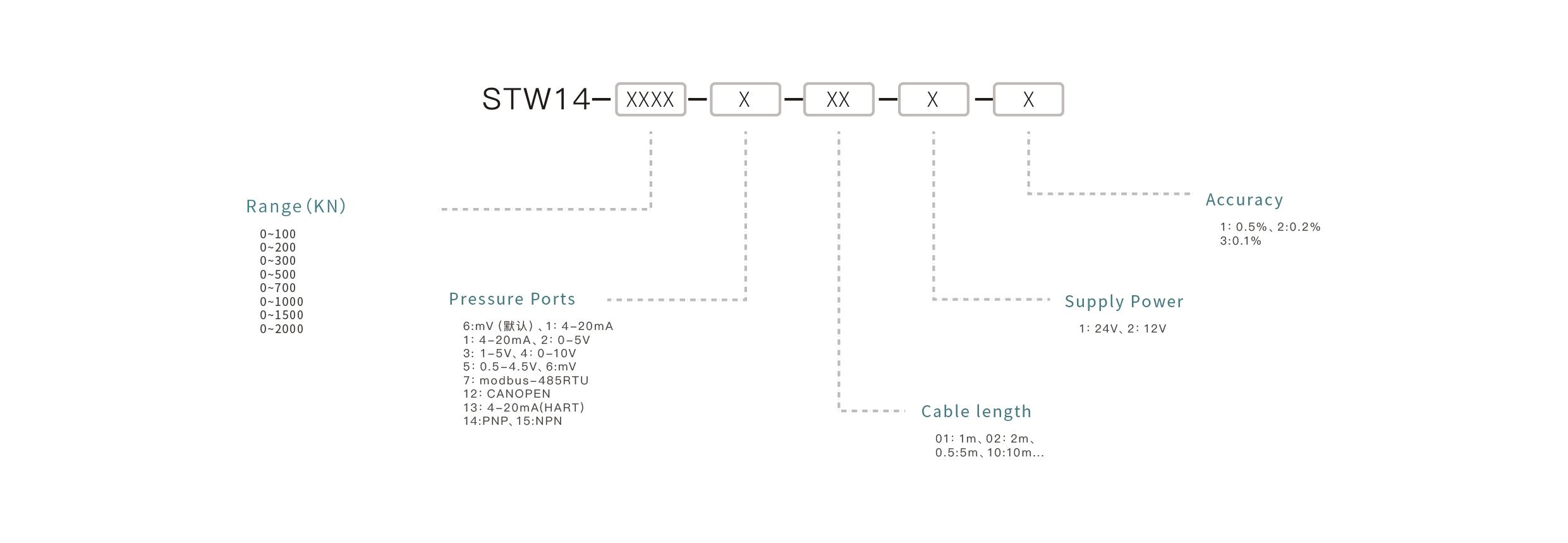

Pressure Sensor Selection Key Points: Confirm the measuring range, match the output signal, ensure media compatibility, select the appropriate mounting interface, and define the accuracy requirements.

5. FAQ (Frequently Asked Questions)

Q1: How to choose the correct capacity for the Yatan STW14 Column Type External Thread Tension Load Cell?

It is recommended to select the proper capacity based on the maximum working force, installation method, operating environment, and output requirements while keeping a safety margin for stable long-term performance.

Q2: Can the Yatan STW14 load cell connect to PLC and industrial automation systems?

Yes.The STW14 supports analog outputs as well as RS485 Modbus RTU and CANOPEN communication protocols, allowing easy integration with PLCs and industrial automation systems.

Q3: What material is used for the Yatan STW14 tension force sensor?

The STW14 is manufactured with high-strength alloy steel, providing excellent mechanical strength, impact resistance, and long-term operational stability.

Q4: How accurate is the Yatan STW14 Column Type External Thread Tension Load Cell?

The STW14 provides comprehensive accuracy up to 0.05%F.S, including linearity, hysteresis, and repeatability, ensuring stable and reliable force measurement performance.

Q5: What is the measuring range of the Yatan STW14 tension load cell?

The STW14 load cell offers capacities from 0~100KN to 0~2000KN, with customizable ranges available between 100KN and 2000KN for heavy-duty force measurement applications.

Q6: What output signals are available for the Yatan STW14 Column Type External Thread Tension Load Cell?

The STW14 supports multiple output options including mV, 4-20mA, 0-5V, 1-5V, 0-10V, 0.5-4.5V, Modbus-485RTU, CANOPEN, PNP, and NPN for various industrial applications.

Q7: What industries is the Yatan STW14 Column Type External Thread Tension Load Cell suitable for?

The Yatan STW14 load cell is widely used in electronic weighing systems, lifting equipment, port machinery, industrial automation, construction machinery, heavy-duty testing, and intelligent force monitoring systems.
