The STG14 RS485 Pressure Transmitter features a high-precision silicon sensing element combined with a fully welded stainless steel construction. It outputs a stable Modbus RTU RS485 signal with fast communication and networking capability. With IP67 protection, excellent EMC performance, and over-voltage protection, it is widely used in construction machinery, metallurgy, industrial automation, and process control applications.
| Pressure Range | 0–0.01 bar up to 1000 bar |
| Pressure Type | Gauge / Absolute |
| Output Signal | Modbus RS485 RTU |
| Supply Voltage | 5.5–30VDC |
| Accuracy | ±0.5% F.S., ±0.2% F.S., ±0.1% F.S. |
| Long-term Stability | ≤±0.05%F.S./year |
| Overpressure | 150%F.S. |
| Burst Pressure | 200%F.S. |
| Temperature Compensation Range(accuracy maintained within this range) | -35 to 100 °C |
| Operating temperature range | −40 to +125°C |
| Storage temperature range | −40 to +125°C |
| Media Temperature Range | -40°C to +125°C |
The STG14 pressure transmitter supports the standard Modbus RTU RS485 protocol, making it easy to integrate with PLCs, SCADA systems, and industrial automation networks.
It offers multiple accuracy options: ±0.5% F.S., ±0.2% F.S., and ±0.1% F.S., suitable for various industrial pressure measurement requirements.
Yes, it features a fully welded stainless steel construction with IP67 protection, ensuring excellent resistance to water, dust, and corrosion.
It is suitable for gases and liquids compatible with 304 and 316L stainless steel, widely used in hydraulic and industrial fluid systems.
The STG14 supports multiple standard connections, including G1/4, M14×1.5, 1/4NPT, and M12×1, with customization options available.
The operating temperature range is -40°C to +125°C, with compensated accuracy maintained within -35°C to +100°C.
Yes, it includes reverse polarity protection, over-voltage, and over-current protection, and complies with EMC standards for reliable operation.
It is widely used in construction machinery, metallurgy, industrial automation, process control, and research equipment.
📧 Email: sales@yatansensor.com, support@yatansensor.com
💬 WhatsApp:+86 185 1660 2370

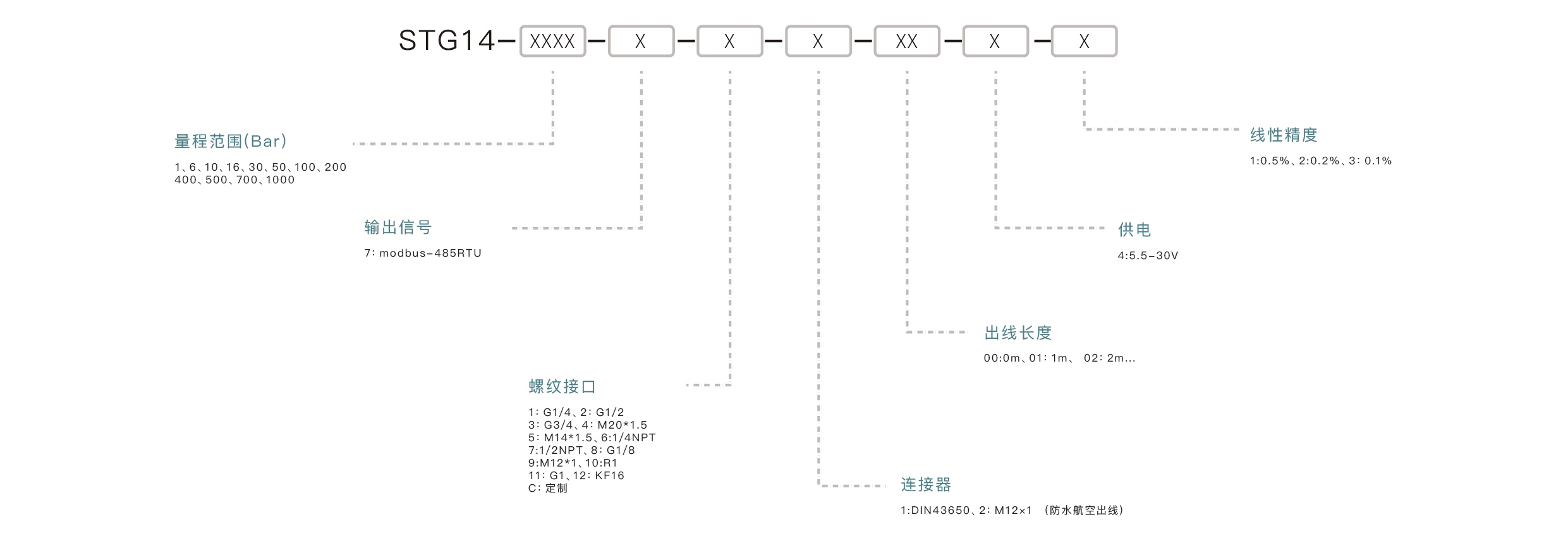

Please specify the full ordering code when requesting a quotation.
Model - Range - Output - Accuracy - Electrical Interface - Connector - Cable Length - Supply Voltage
Example:
STG14 - 0~100bar - 4-20mA - 0.5%- G1/4 - M12 - 1m - 24V
Our engineering team will help you select the right product based on your application requirements.
