Q1: Does the STW08 bellows load cell support customized output signals?
Yes, the STW08 load cell supports customized output options such as 4-20mA, 0-10V, RS485 Modbus, CANOPEN, and more, to meet different industrial integration requirements.
Q2: How do I choose the correct capacity for the STW08 bellows load cell?
It is recommended to select a capacity 1.2 to 1.5 times higher than the actual maximum load. For example, if the maximum force is 5KN, a 7KN or 10KN model is recommended to ensure accuracy and service life.
Q3: Can the STW08 bellows load cell be used in automated production line weighing systems?
Yes, the STW08 bellows load cell is suitable for real-time force measurement in automated production lines, including inline weighing, batching control, and quality inspection systems. It is compatible with PLC and industrial automation equipment.
Q4: Is the STW08 bellows load cell suitable for harsh industrial environments?
Yes, it is built with alloy steel or stainless steel housing, offering excellent anti-fatigue, anti-off-center load, and anti-interference performance, operating reliably in environments from -20°C to +65°C.

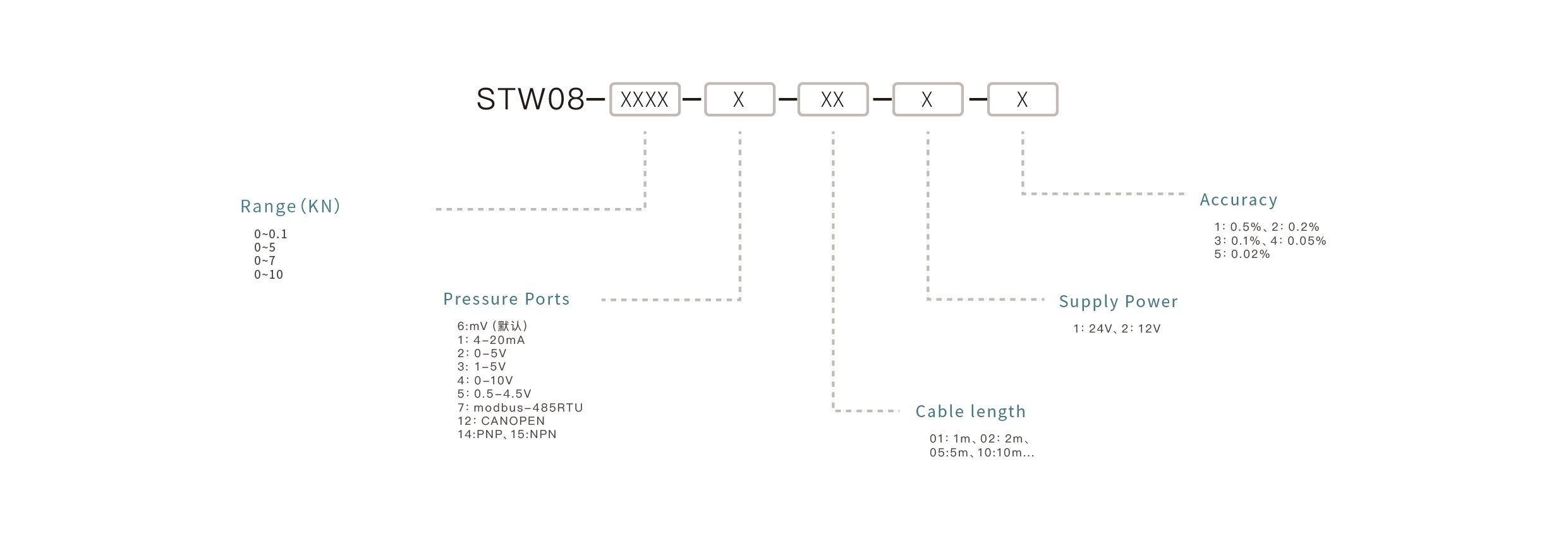

Q5: What output signals are available for the STW08 bellows load cell?
It supports multiple output options including mV, 4-20mA, 0-5V, 0-10V, RS485 Modbus RTU, CANOPEN, PNP/NPN, and more, ensuring compatibility with PLCs and industrial control systems.
Q6: How accurate is the STW08 bellows load cell for industrial weighing systems?
The STW08 load cell offers up to 0.02%F.S accuracy with excellent stability and low creep, making it highly suitable for precision industrial weighing and automation systems.
Q7: Can the STW08 bellows load cell measure both tension and compression forces?
Yes, the STW08 bellows load cell supports both tension and compression force measurement, making it suitable for a wide range of industrial force testing and weighing applications.
Q8: What applications are suitable for the STW08 bellows load cell?
The STW08 bellows load cell is widely used in electronic scales, belt scales, hopper weighing systems, batching systems, and industrial automation weighing control. It is ideal for high-precision force measurement applications in logistics, production lines, and process control systems.
