STG19 High Precision Micro Pressure Transmitter

The STG19 Micro Pressure Transmitter utilizes a titanium alloy sintered sensing element, combined with laser trimming and computer-based automatic testing, to achieve high-precision micro pressure measurement over a wide temperature range. It can measure both absolute and differential micro pressures, offering high resolution and strong anti-interference performance. STG19 is ideal for aerospace, precision testing, bioengineering, and various analytical instruments. The signal processing circuit is housed in a corrosion-resistant 304 stainless steel case, supporting multiple output signals (4-20mA, 0-5V, 0-10V, mV, Modbus-485RTU) and versatile pressure interfaces (G1/2, G1/4, M20*1.5, or custom), meeting diverse industrial requirements. With high reliability and long-term stability (<0.05% F.S/year), the STG19 can withstand overpressure up to 1000KPa and a burst pressure over 1600KPa. Its temperature compensation range is -30~+85°C, and operating temperature is -30~+125°C, ensuring stable performance in demanding environments. Vibration and shock resistance comply with IEC standards, and EMC anti-interference requirements are met, making it suitable for military and high-precision applications. Compatible with gases or liquids that work with 316 stainless steel, the STG19 is an ideal solution for precise micro pressure measurement.

1. Key Features

2. Technical Specifications

General Electrical Data

Pressure range 0-50Pa, 0-100Pa, 0-200Pa, 0-500Pa, 0-1000Pa, 0-2000Pa, 0-3000Pa, 0-5000Pa, 0-10000Pa
Pressure Reference Gauge
Output signals 4-20mA, 0-5V, 0-10V, mV, Modbus-485RTU
Supply Voltage 12 VDC / 24 VDC

Performance Specifications

Accuracy ±0.5%F.S., ±0.2%F.S., ±0.1%F.S., ±0.07%F.S.
Long-term Stability ≤±0.05%F.S./year
Overpressure 1000KPa
Burst pressure >1600KPa
Temperature compensation range (accuracy remains unchanged) -30~+85°C
Operating temperature range -30~+125°C
Storage temperature range -30~+125°C
Medium temperature range -30~+125°C

3. Applications

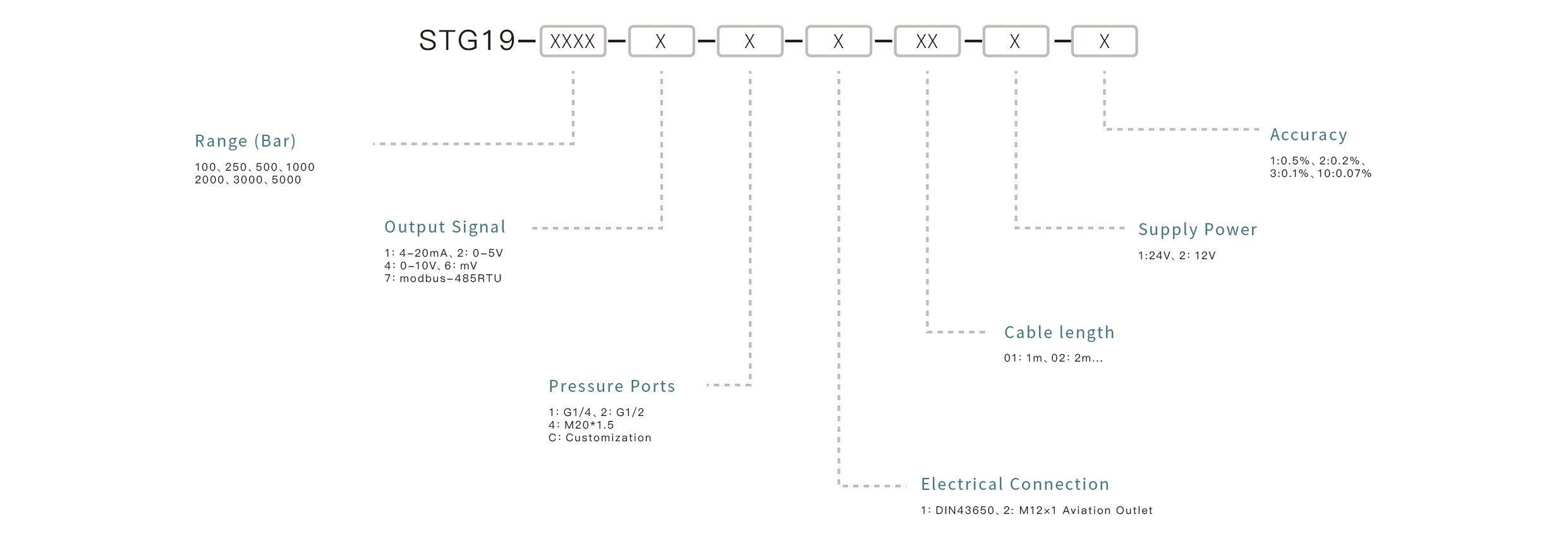

4. Selection Guide

Pressure Sensor Selection Key Points: Confirm the measuring range, match the output signal, ensure media compatibility, select the appropriate mounting interface, and define the accuracy requirements.

5. FAQ (Frequently Asked Questions)

Q1: What are the key features of the STG19 Micro Pressure Transmitter?

The STG19 Micro Pressure Transmitter uses a titanium alloy sintered sensing element with laser trimming, offering high resolution and strong anti-interference performance. It can measure both absolute and differential micro pressures. Its corrosion-resistant 304 stainless steel housing is ideal for aerospace, precision testing, and bioengineering applications. As a Chinese factory direct supply, it offers competitive pricing, stable delivery, and reliable performance.

Q2: What output signals does the STG19 support?

It supports multiple output signal types including 4-20mA, 0-5V, 0-10V, mV, and Modbus-485RTU, meeting a wide range of industrial control and data acquisition needs.

Q3: What is the measurement range and accuracy of STG19?

The pressure range is from 0-50Pa to 0-10000Pa, with overall accuracy of 0.07%F.S, 0.1%F.S, 0.2%F.S, or 0.5%F.S. Long-term stability is less than 0.05% F.S/year, ensuring reliable measurements over time.

Q4: Which applications are suitable for the STG19?

It is suitable for aerospace equipment, precision testing, bioengineering, 316L-compatible gas equipment, and various analytical instruments that require high-precision micro pressure measurement.

Q5: What are the advantages of Chinese factory direct supply?

Factory-direct production eliminates intermediaries, providing more competitive pricing. It also offers fast customization, stable supply, and high cost-performance ratio for different projects, ensuring reliable performance and value.

Q6: What environmental conditions can the STG19 Micro Pressure Transmitter withstand?

The STG19 can operate in temperatures from -30°C to +125°C, with a temperature compensation range of -30°C to +85°C. It withstands overpressure up to 1000KPa and burst pressure over 1600KPa. It is vibration- and shock-resistant, compliant with IEC and EMC standards, ensuring stable performance in harsh industrial and military-grade applications.

Q7: How can I customize the STG19 Micro Pressure Transmitter’s pressure interface and output signals?

The STG19 offers multiple pressure interfaces (G1/2, G1/4, M20*1.5, or custom) and various output signal options (4-20mA, 0-5V, 0-10V, mV, Modbus-485RTU). As a Chinese factory direct supply, we provide fast customization and mass production to meet diverse project requirements.

6. Related Products

7. Contact Us

📧 Email: sales@yatansensor.com,   support@yatansensor.com

💬 WhatsApp:+86 185 1660 2370

8. Model Selection / Ordering Code

Please specify the full ordering code when requesting a quotation.

        Model - Range - Output - Accuracy - Electrical Interface - Connector - Cable Length - Supply Voltage

        Example:
        STG19 -  0~100bar - 4-20mA - 0.5%- G1/4 - M12 - 1m - 24V
