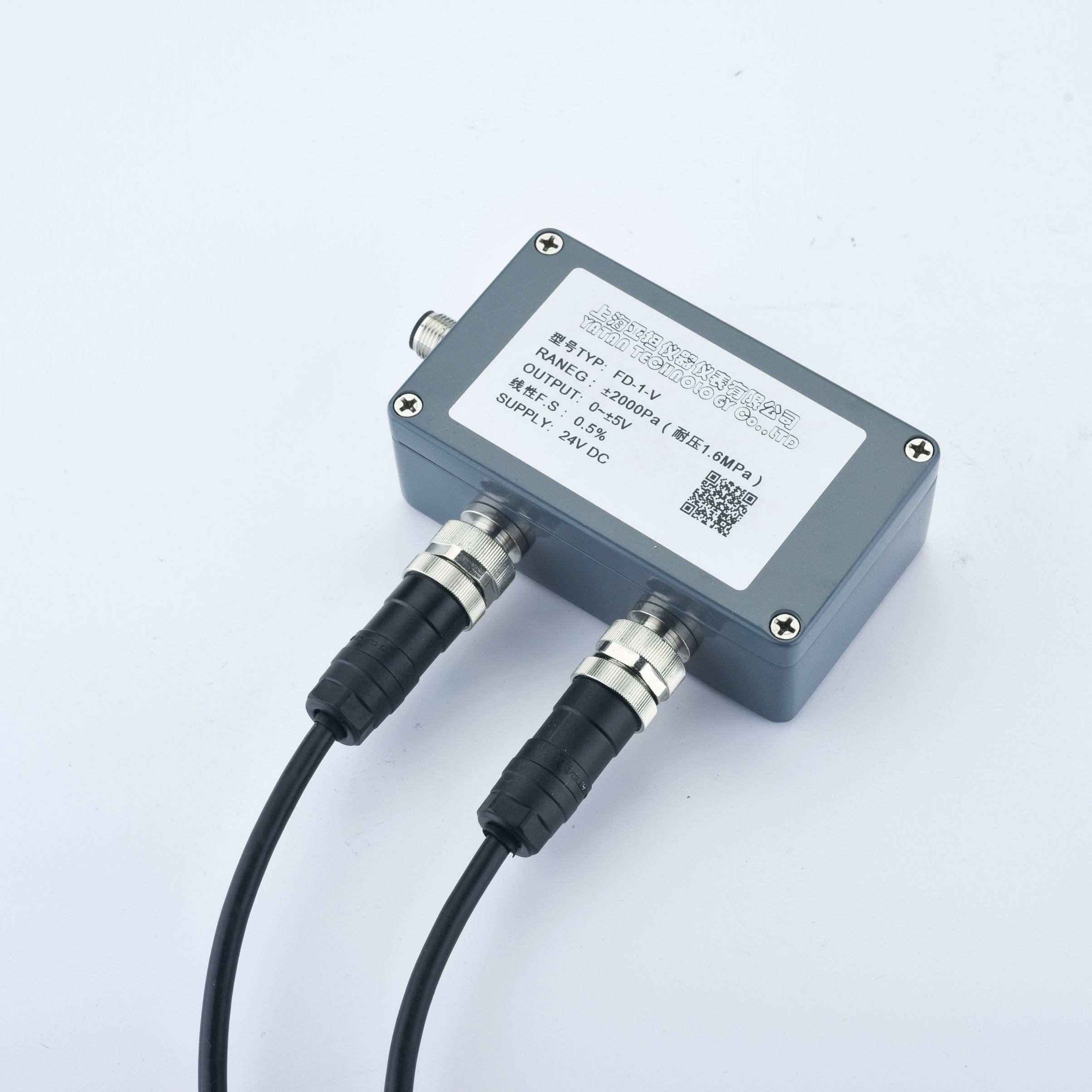

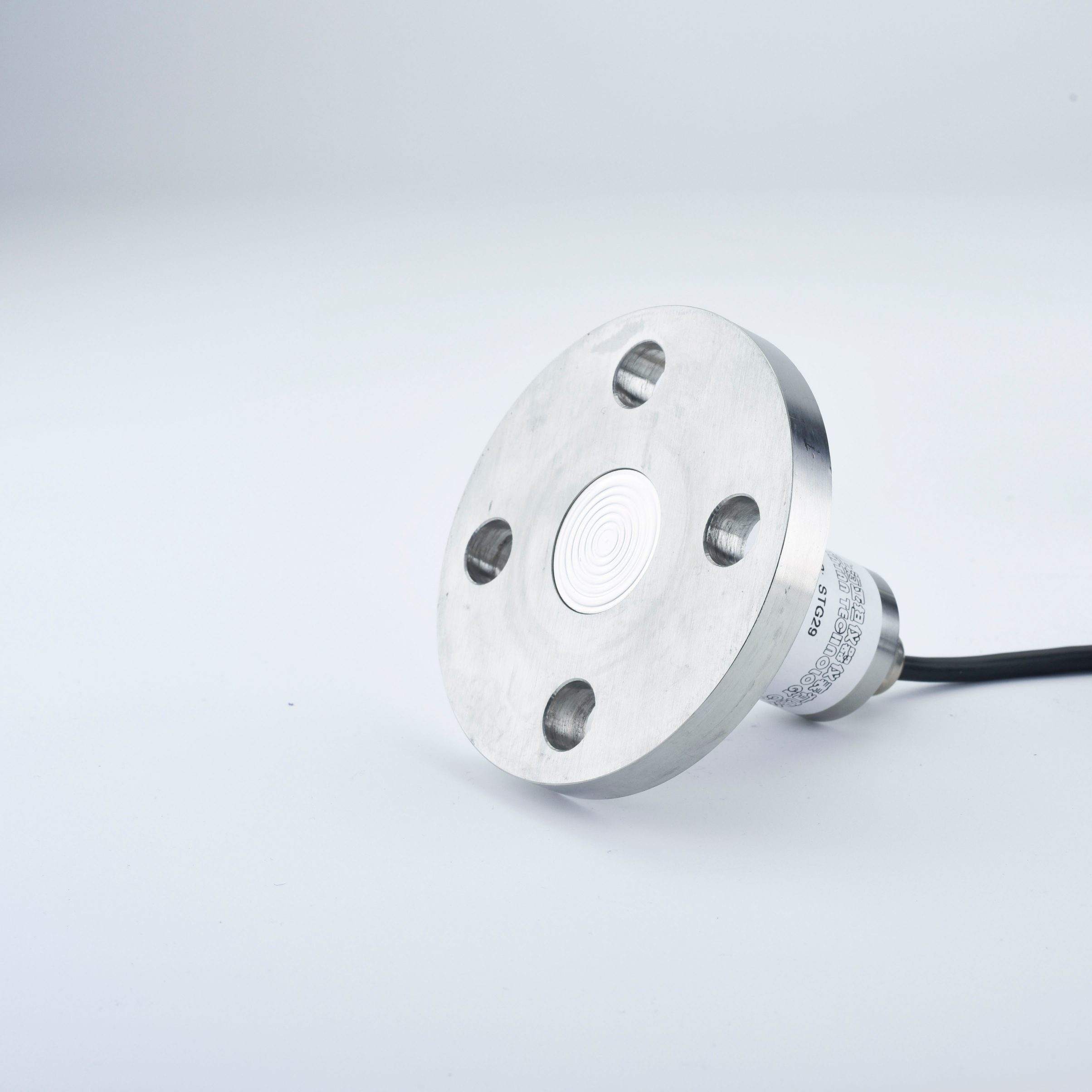

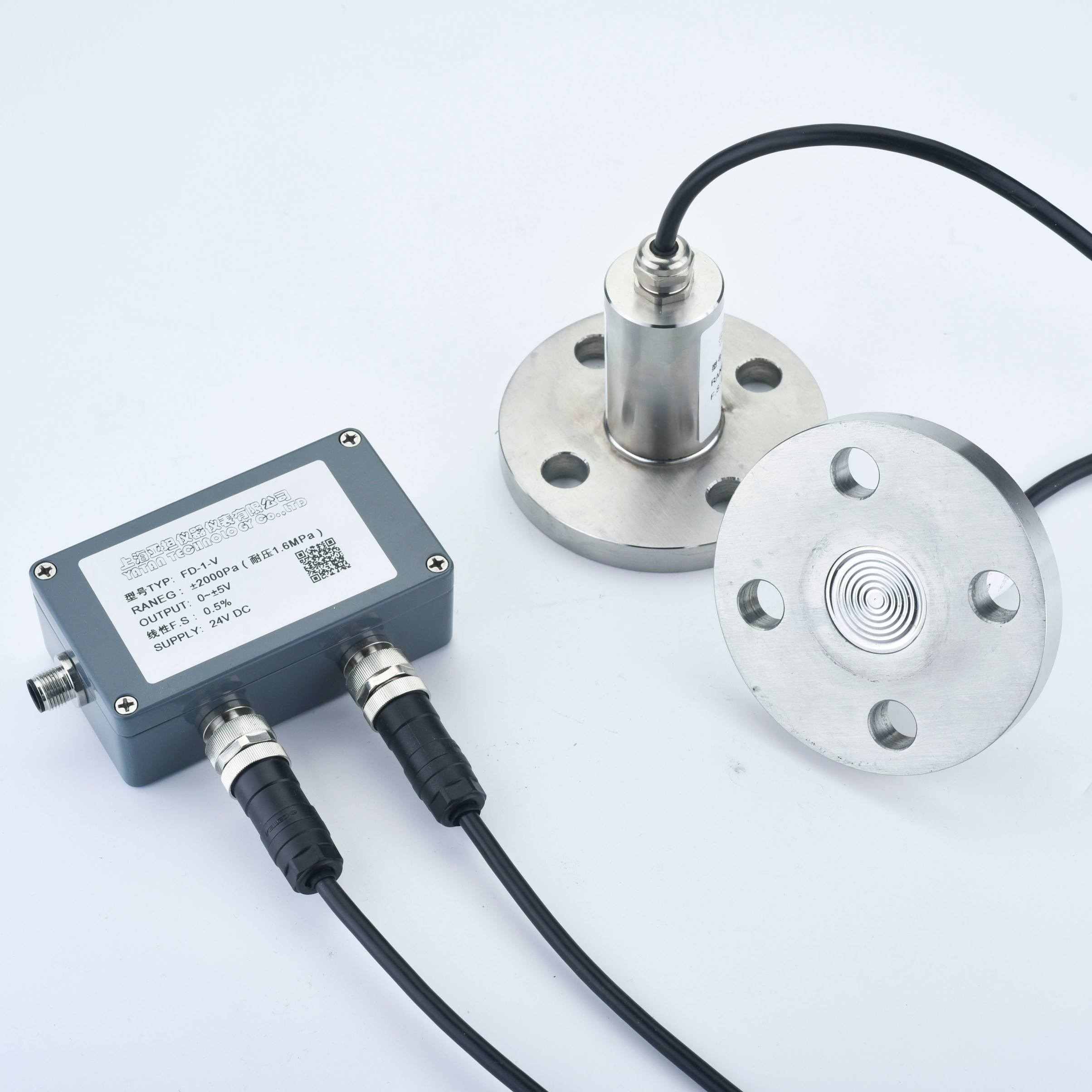

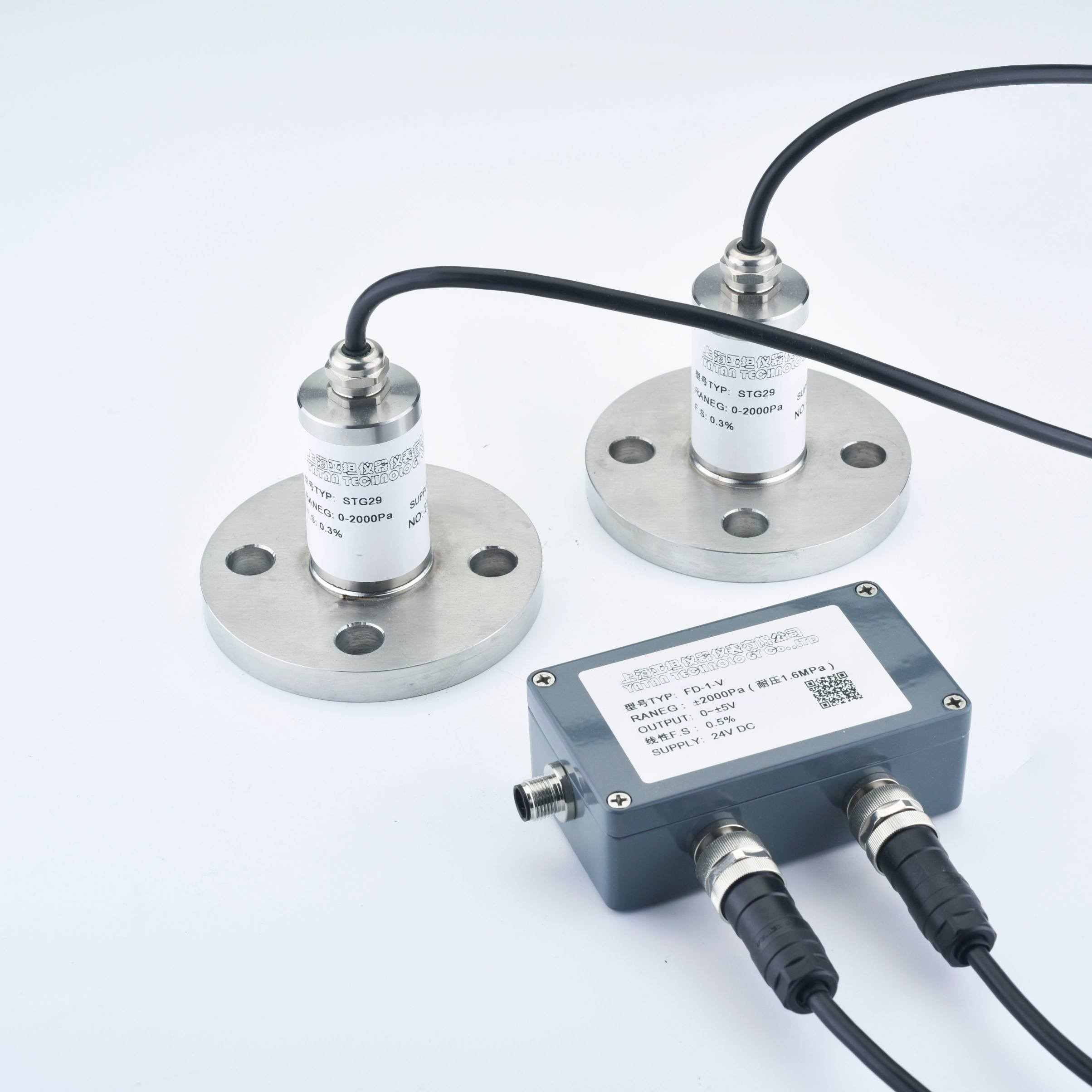

Q1: What is the STG44 Micro Differential Pressure Transmitter?
The STG44 Micro Differential Pressure Transmitter is a high-precision device based on solid-state silicon piezoresistive technology, designed to convert small differential pressure into stable electrical signals for industrial applications.
Q2: What output signals does the STG44 Micro Differential Pressure Transmitter support?
The STG44 supports multiple industrial outputs, including 4–20mA, 0–5V, 0–10V, Modbus RS485, and CANopen, ensuring easy integration into various control systems.
Q3: What applications is the STG44 Micro Differential Pressure Transmitter suitable for?
It is widely used in pneumatic conveying, filtration pressure monitoring, leak detection systems, air tightness testing, medical equipment, and other high-precision industrial applications.
Q4: How accurate is the STG44 Micro Differential Pressure Transmitter?
The STG44 offers high accuracy up to ±0.2% F.S with excellent linearity and long-term stability, making it ideal for precision measurement tasks.
Q5: Is the STG44 Micro Differential Pressure Transmitter suitable for harsh environments?
Yes, it features strong resistance to vibration, shock, and electromagnetic interference, along with high overpressure and overload protection, ensuring reliable performance in demanding environments.
Q6: What media can the STG44 Micro Differential Pressure Transmitter measure?
It is compatible with gases, liquids, and certain viscous media, providing flexible measurement capabilities.

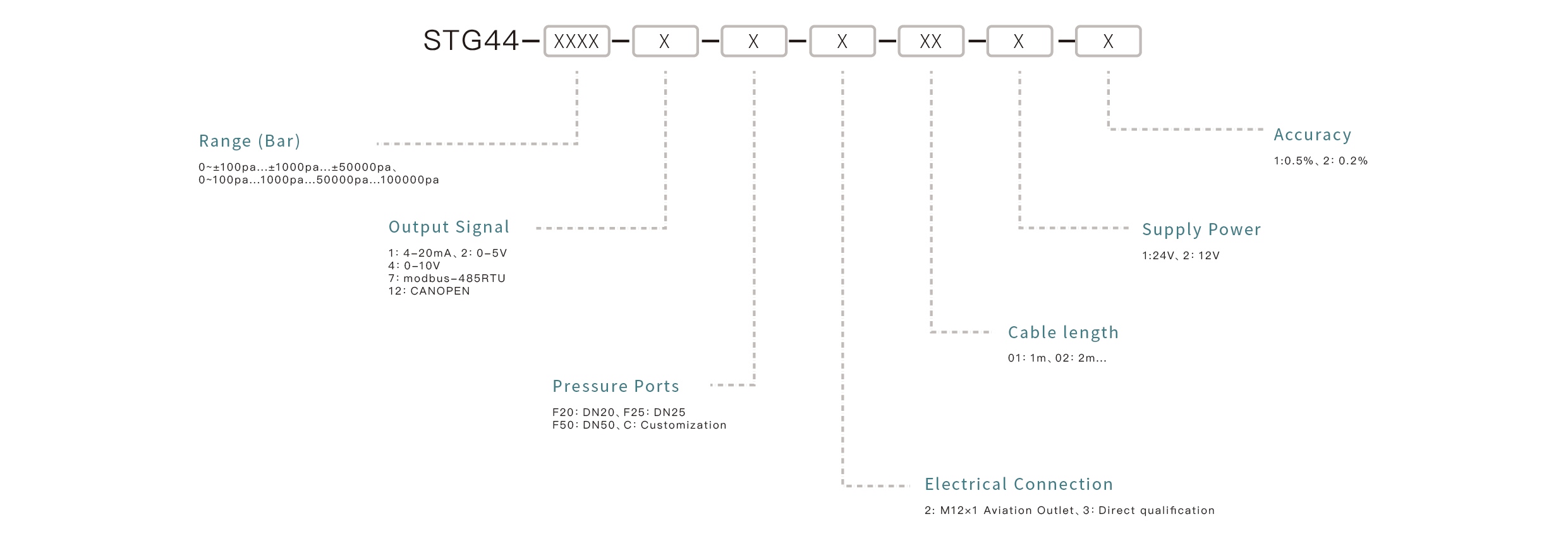

Q7: Can the STG44 Micro Differential Pressure Transmitter be customized?
Yes, customization options are available, including pressure range, mechanical connections (DN20/DN25/DN50), and output signals to meet specific application requirements.
Q8: What is the operating temperature range of the STG44 Micro Differential Pressure Transmitter?
The STG44 Micro Differential Pressure Transmitter features a wide temperature range, with compensation from -35°C to 85°C and an operating range from -35°C to 125°C, ensuring stable performance in extreme environments.
Q9: Is the STG44 Micro Differential Pressure Transmitter easy to install and maintain?
Yes, the STG44 Micro Differential Pressure Transmitter supports standard DN connections and customizable installation options. Its compact design allows easy installation, while its high reliability minimizes maintenance requirements and reduces long-term costs.
