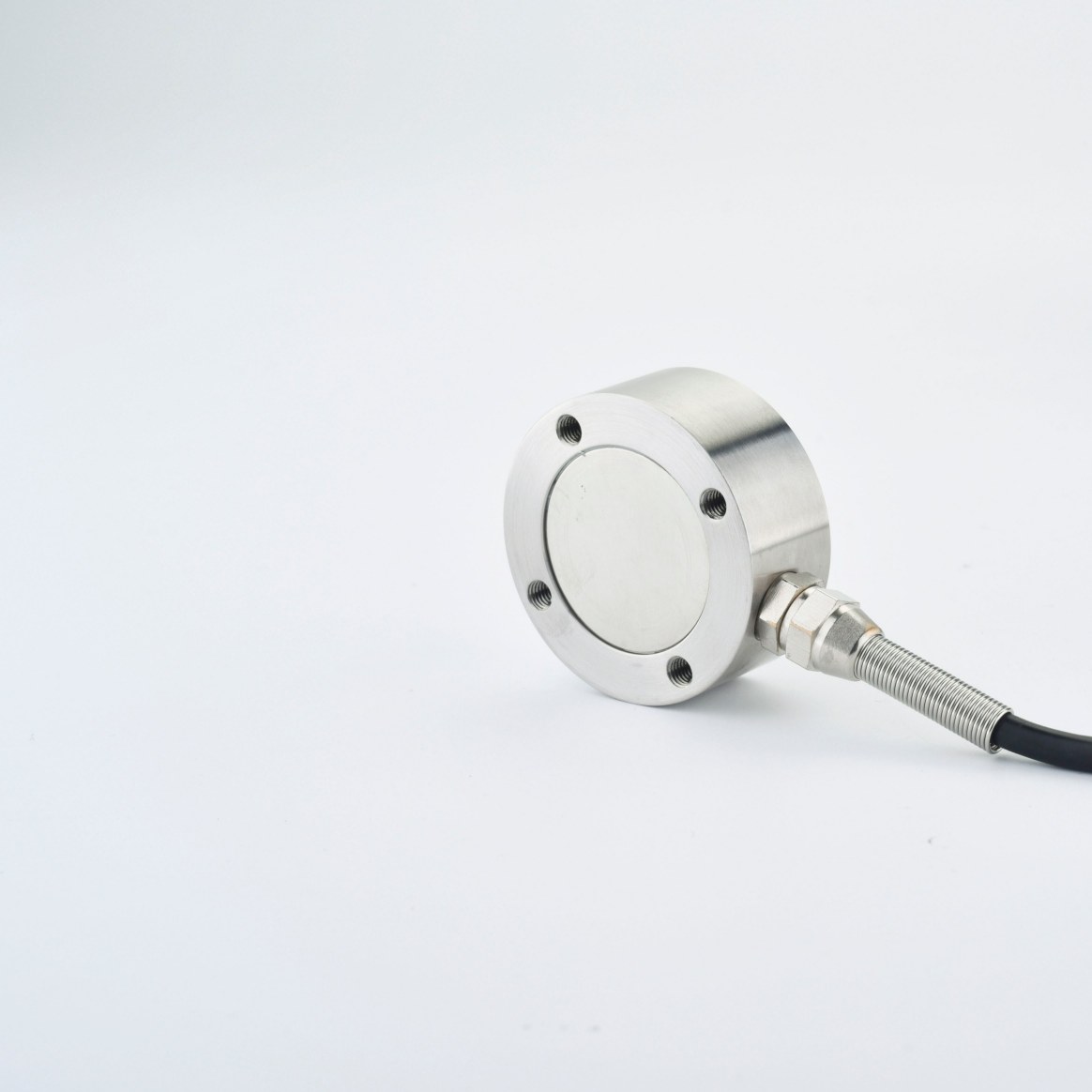

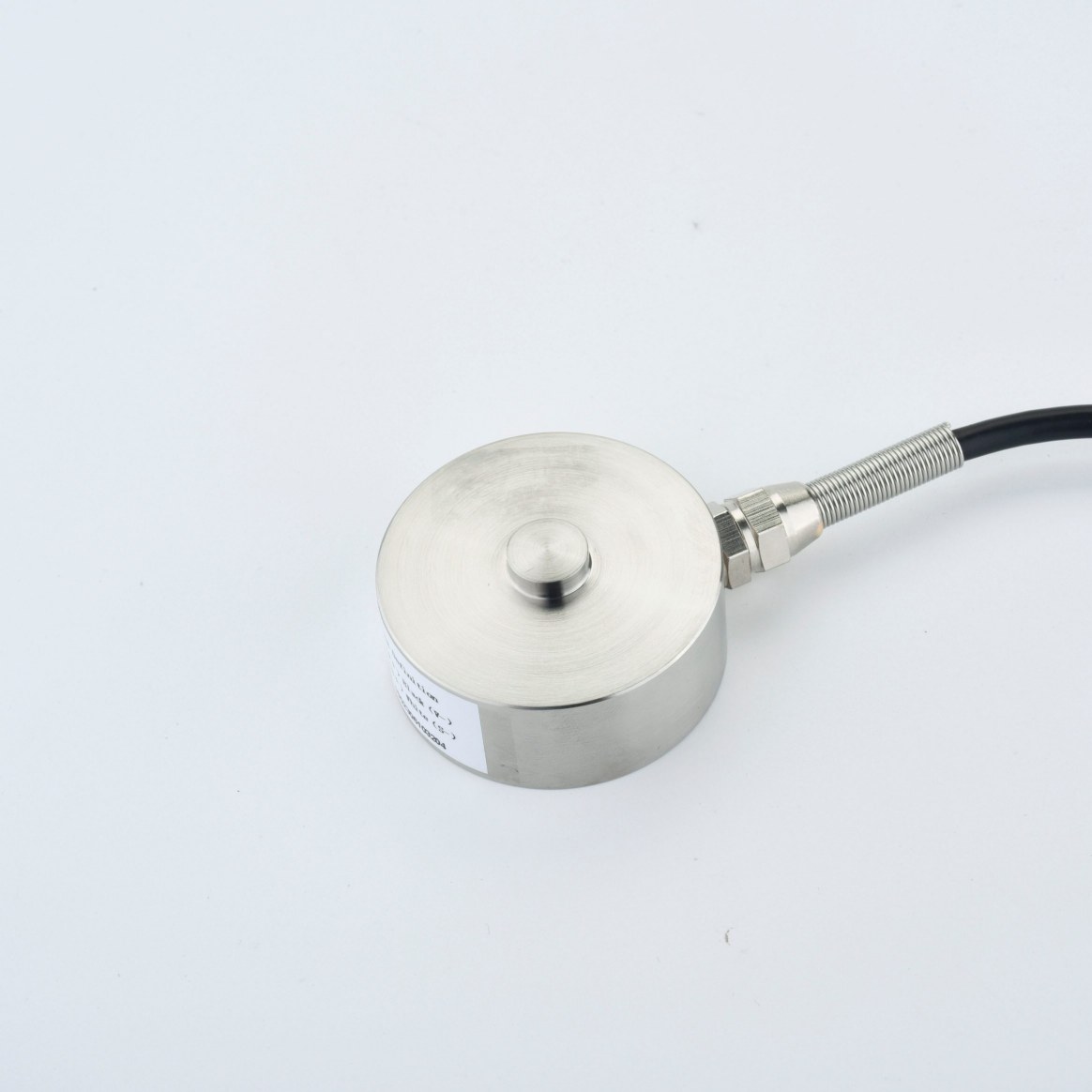

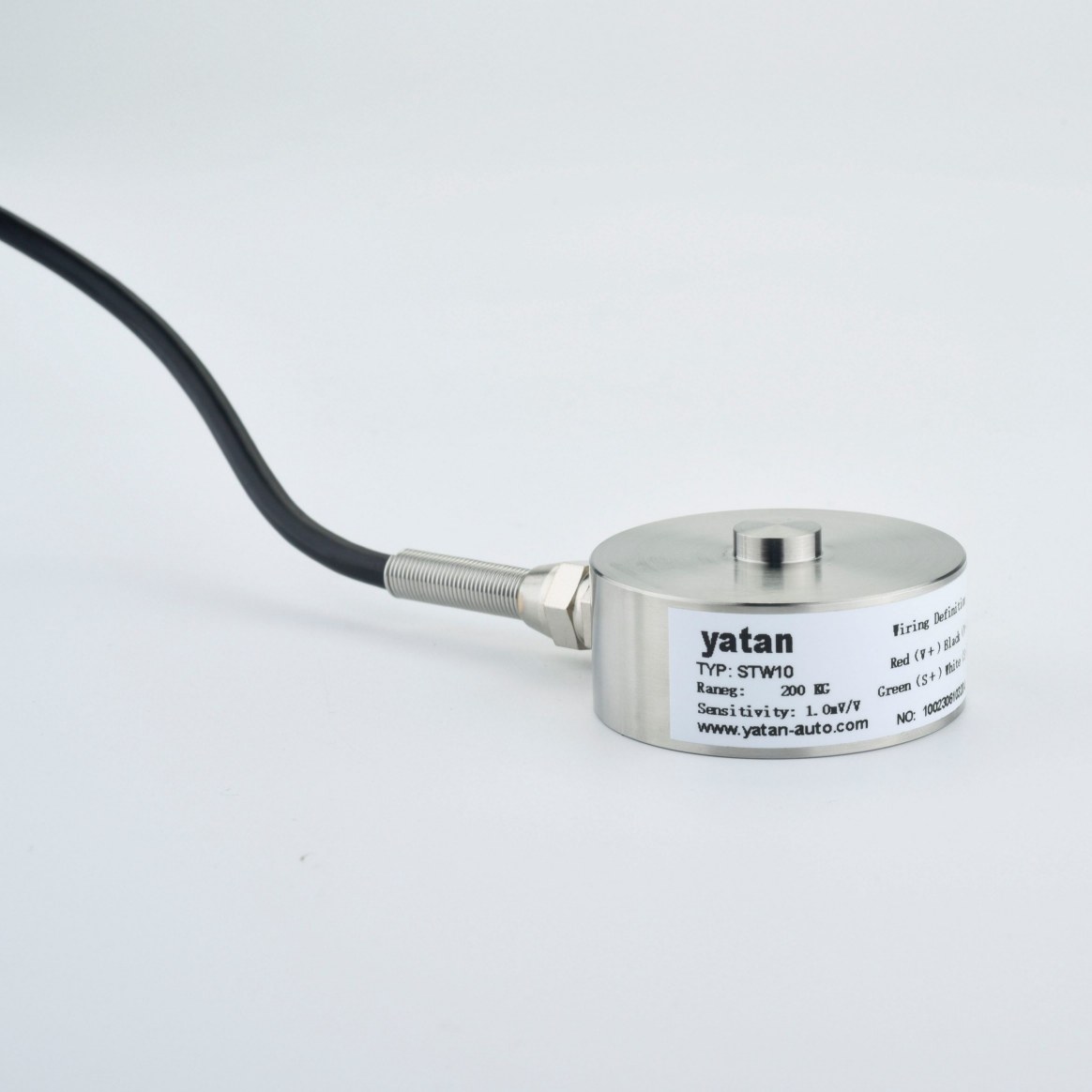

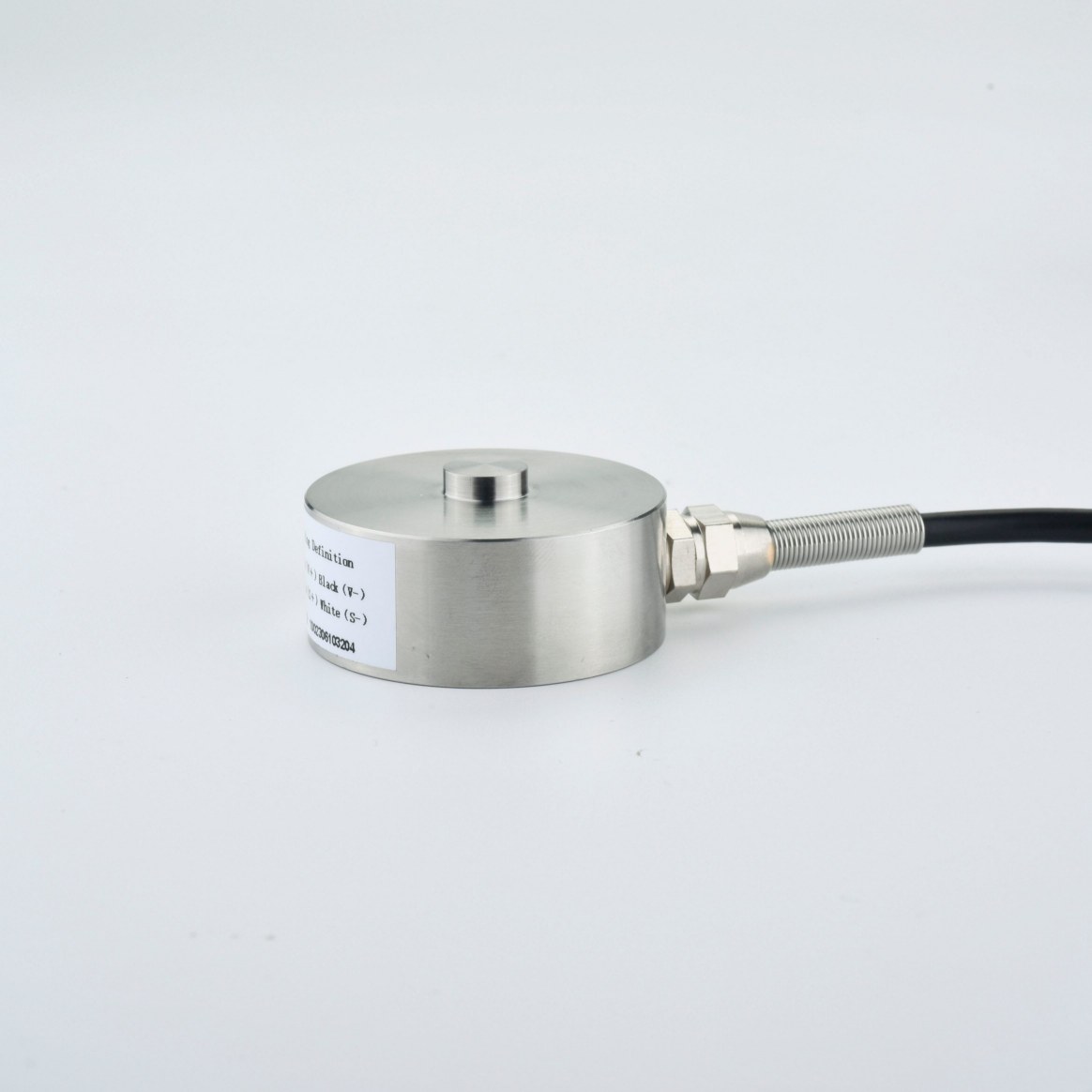

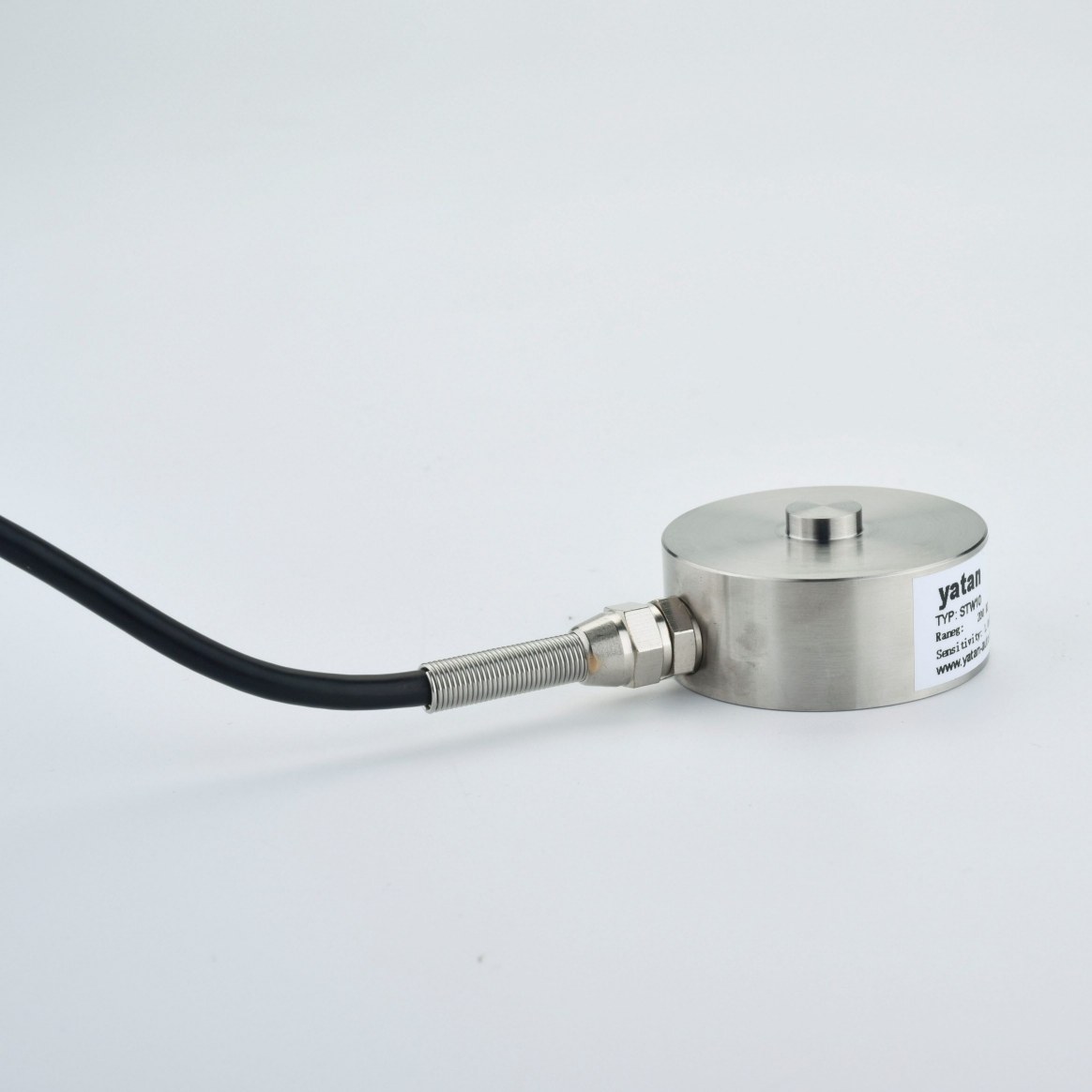

High Precision Industrial Force Sensor STW10 Series

The STW10 mini force sensor is made of stainless steel or alloy steel, featuring high accuracy, fast dynamic response, and excellent anti-eccentric loading performance, making it ideal for compact and precision force measurement applications. It offers a wide measurement range from 0~10KN to 0~300KN with customizable options available. Multiple output signals are supported, including mV, 4-20mA, 0-10V, 0-5V, 1-5V, 0.5-4.5V, RS485 Modbus-RTU, CANopen, PNP/NPN, ensuring seamless integration with various industrial automation systems. With strong stability and anti-interference capability, its non-linearity, hysteresis, and repeatability are all ≤±0.5% F.S. It is widely used in laminating machines, testing equipment, packaging scales, warehouse weighing systems, and industrial automation control, making it an ideal solution for high-precision force measurement applications.

1. Key Features

High Accuracy Measurement
Compact size and easy installation
Ideal for limited-space installations
High strength, fast response
High stability and strong anti-interference capability
Various output signal options available

2. Technical Specifications

General Electrical Data

Measuring Range	0–10, 0–20, 0–100, 0–150, 0–300 (All ranges available between 0–20 to 300 kN)
Sensitivity	1.0–2.0 mV/V
Output Signal	mV/V (default), 4–20mA, 0–5V, 1–5V, 0–10V, 0.5–4.5V, RS485 Modbus RTU, CANopen, PNP, NPN
Bridge Excitation Voltage	5–12VDC(Recommended: 10 VDC)

Performance Specifications

Non-linearity	≤±0.5% F.S
Hysteresis	≤±0.5% F.S
Temperature Effect on Zero Balance	≤±0.05%F.S / 10°C
Creep Error
Sensitivity Temperature Drift	≤±0.05%F.S / 10°C

Safe Overload	150%F.S
Operating Temperature Range	-20°C to +65°C

3. Applications

Precision assembly and pressure measurement applications
Force control in laminating and forming machines
Logistics and warehouse weighing equipment
Robotics & Mechanical Systems
Industrial Automation Equipment
Other industrial applications

4. Selection Guide

Pressure Sensor Selection Key Points: Confirm the measuring range, match the output signal, ensure media compatibility, select the appropriate mounting interface, and define the accuracy requirements.

5. FAQ (Frequently Asked Questions)

Q1: Can Shanghai YATAN STW10 Force Sensor be customized?

Yes, customization is available for measuring range, output signals, and mechanical structure based on customer requirements.

Q2: How strong is the anti-eccentric load capability of the STW10 sensor?

The sensor is designed with optimized structure, providing strong resistance to eccentric loading conditions.

Q3: Is the STW10 suitable for dynamic force measurement?

Yes, the STW10 features fast dynamic response, making it suitable for real-time and high-speed force measurement.

Q4: Which industries use the YATAN STW10 Mini Force Sensor?

It is widely used in packaging scales, warehouse weighing systems, material testing machines, pressing equipment, and industrial automation systems.

Q5: What is the measuring range of the STW10 Force Sensor?

The STW10 covers a wide range from 0~10KN to 0~300KN, with customization options available for different applications.

Q6: What output signals does the STW10 Miniature Force Sensor support?

It supports multiple industrial outputs including mV, 4-20mA, 0-10V, 0-5V, RS485 Modbus-RTU, CANopen, PNP/NPN, and more.

Q7: What is the accuracy of the YATAN STW10 Mini Force Sensor?

The STW10 offers a comprehensive accuracy of up to ±0.5% F.S, ensuring stable and precise force measurement performance.

Q8: Can the YATAN STW10 Miniature Force Sensor be installed in small spaces?

The STW10 miniature force sensor features a compact structure, making it ideal for space-limited applications such as laminating machines, testing equipment, and automation systems.

6. Related Products

7. Contact Us

📧 Email: sales@yatansensor.com, support@yatansensor.com

💬 WhatsApp:+86 185 1660 2370

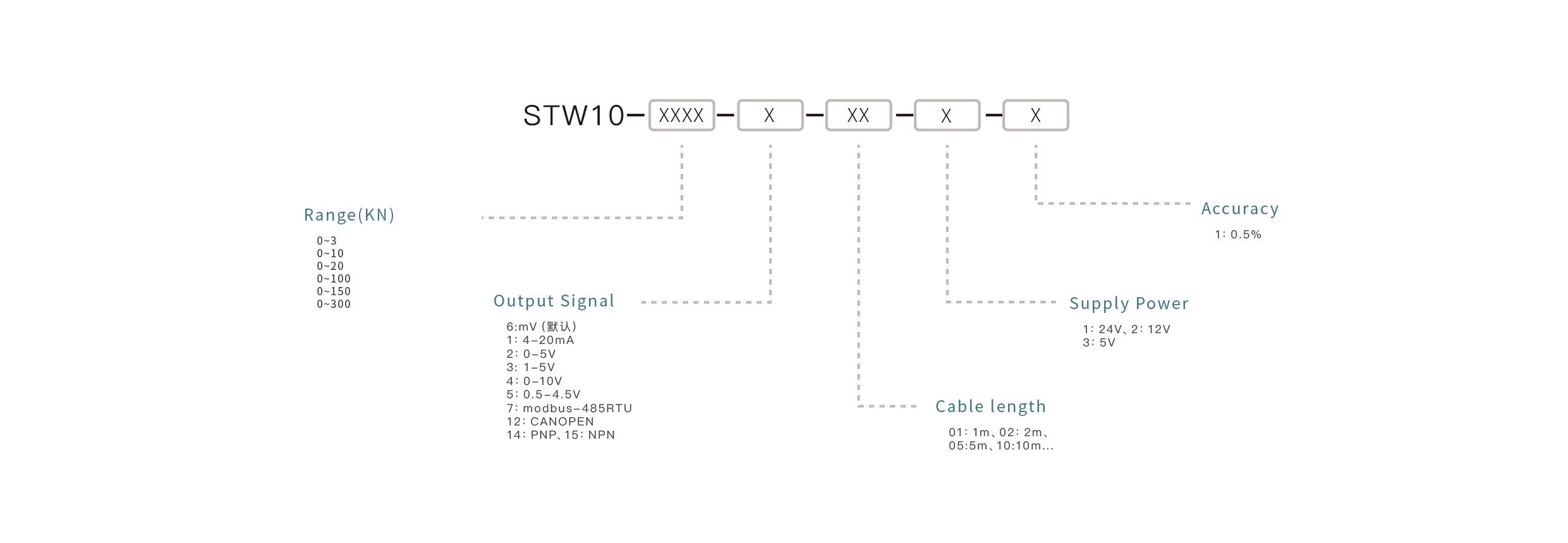

8. Model Selection / Ordering Code

Please specify the full ordering code when requesting a quotation.

        Model - Measuring Range - Output Signal - Cable Length - Power Supply - Linearity Accuracy

        Example:
        STW10 - 100N - 4-20mA - 2m - 12V  - 0.2%
