STD10 Intelligent Digital Temperature Switch

The STD10 Intelligent Temperature Switch is an industrial-grade digital temperature control device integrating measurement, display, and control functions. Equipped with a high-precision PT100 sensor and advanced microprocessor technology, it ensures fast response and stable performance. The device supports multiple output options including 4-20mA, NPN, and PNP, enabling flexible integration into various automation systems. Featuring an OLED display with user-friendly button operation, it allows quick zero calibration and unit switching. With an accuracy of ±0.5% F.S and excellent long-term stability, it is suitable for temperature ranges from -50°C to 150°C (customizable up to 400°C). Built with a robust 304 stainless steel housing and IP67 protection rating, it offers strong resistance to vibration, shock, and electromagnetic interference. Widely used in water treatment, petrochemical, machinery, and hydraulic/pneumatic systems for reliable temperature monitoring and control.

1. Key Features

2. Technical Specifications

General Electrical Data

Temperature range -50°C to +150°C (customizable from -50°C to +400°C)
Measuring Method Immersion type
Output signals 4–20mA, NPN, PNP
Supply Voltage 24VDC

Performance Specifications

Accuracy ±0.5%F.S.
Long-term Stability ≤ ±0.2%F.S./year
Overpressure limit 25MPa
Burst Pressure 200%F.S.
Operating temperature range -50°C to +150°C
Storage temperature range -50°C to +150°C

3. Applications

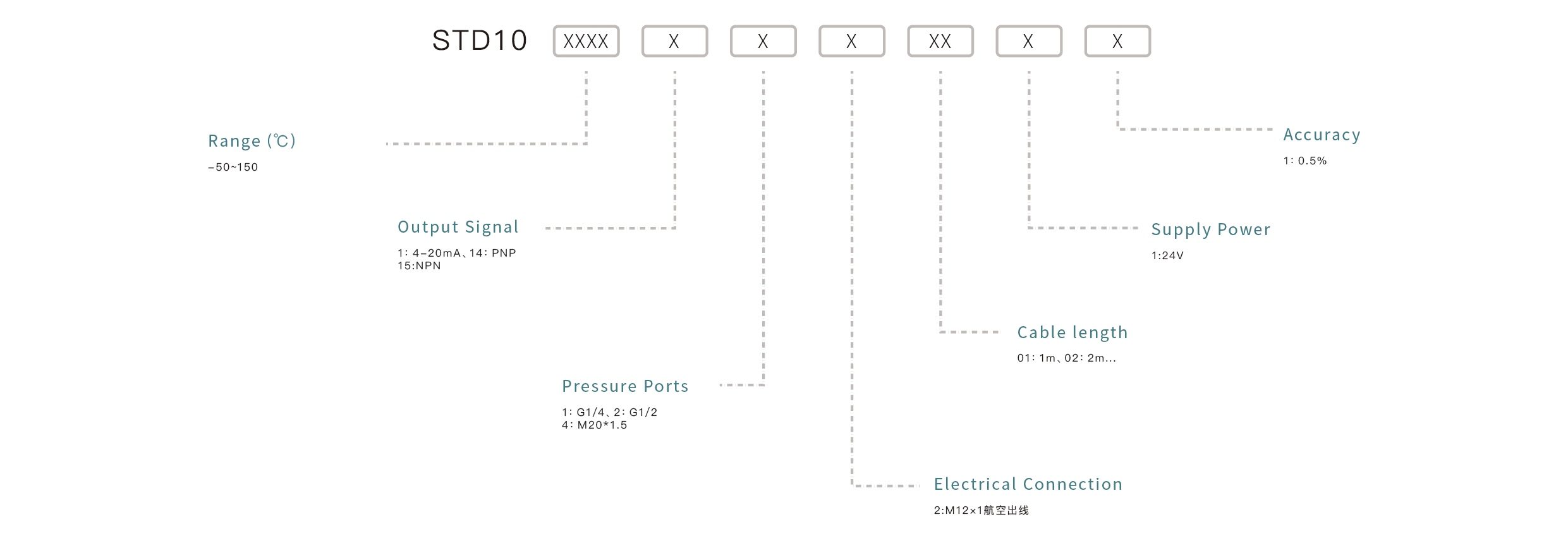

4. Selection Guide

Pressure Sensor Selection Key Points: Confirm the measuring range, match the output signal, ensure media compatibility, select the appropriate mounting interface, and define the accuracy requirements.

5. FAQ (Frequently Asked Questions)

Q1: What applications is the STD10 Intelligent Temperature Switch suitable for?

The STD10 Intelligent Temperature Switch is widely used in water treatment, petrochemical, hydraulic, pneumatic, and industrial automation systems for accurate temperature monitoring and control of gases and liquids.

Q2: What output signals does the STD10 Intelligent Temperature Switch support?

The STD10 Intelligent Temperature Switch supports 4-20mA analog output as well as NPN and PNP switching outputs, making it compatible with PLC and DCS systems.

Q3: How accurate is the STD10 Intelligent Temperature Switch?

The STD10 Intelligent Temperature Switch offers high accuracy up to ±0.5% F.S and long-term stability of ≤±0.2% F.S per year, ensuring reliable performance in industrial environments.

Q4: What is the temperature range of the STD10 Intelligent Temperature Switch?

The standard temperature range is -50°C to +150°C, with customizable options up to +400°C for high-temperature applications.

Q5: Is the STD10 Intelligent Temperature Switch easy to install and configure?

Yes, the STD10 Intelligent Temperature Switch features a user-friendly interface with button operation, quick zero calibration, and unit switching for easy installation and setup.

Q6: What is the protection rating of the STD10 Intelligent Temperature Switch?

The device has an IP67 protection rating, providing excellent resistance to dust and water in harsh industrial environments.

Q7: What sensor type is used in the STD10 Intelligent Temperature Switch?

The STD10 Intelligent Temperature Switch uses a high-precision PT100 sensor, known for its fast response and high stability.

Q8: Can the STD10 Intelligent Temperature Switch be used in harsh or corrosive environments?

It is constructed with 304 stainless steel and suitable for non-corrosive media compatible with 304/316L. Custom solutions are available for special conditions.

6. Related Products

7. Contact Us

📧 Email: sales@yatansensor.com,   support@yatansensor.com

💬 WhatsApp:+86 185 1660 2370

8. Model Selection / Ordering Code

Please specify the full ordering code when requesting a quotation.

        Model - Measuring Range - Output Signal - Thread Connection - Electrical Connector - Cable Length - Power Supply - Linearity Accuracy

        Example:
        STD01 - 150℃ - 4-20mA - G1/4 - M12*1 - 1m - 24VDC - 0.5%
