STP10 Adjustable Mechanical Pressure Switch

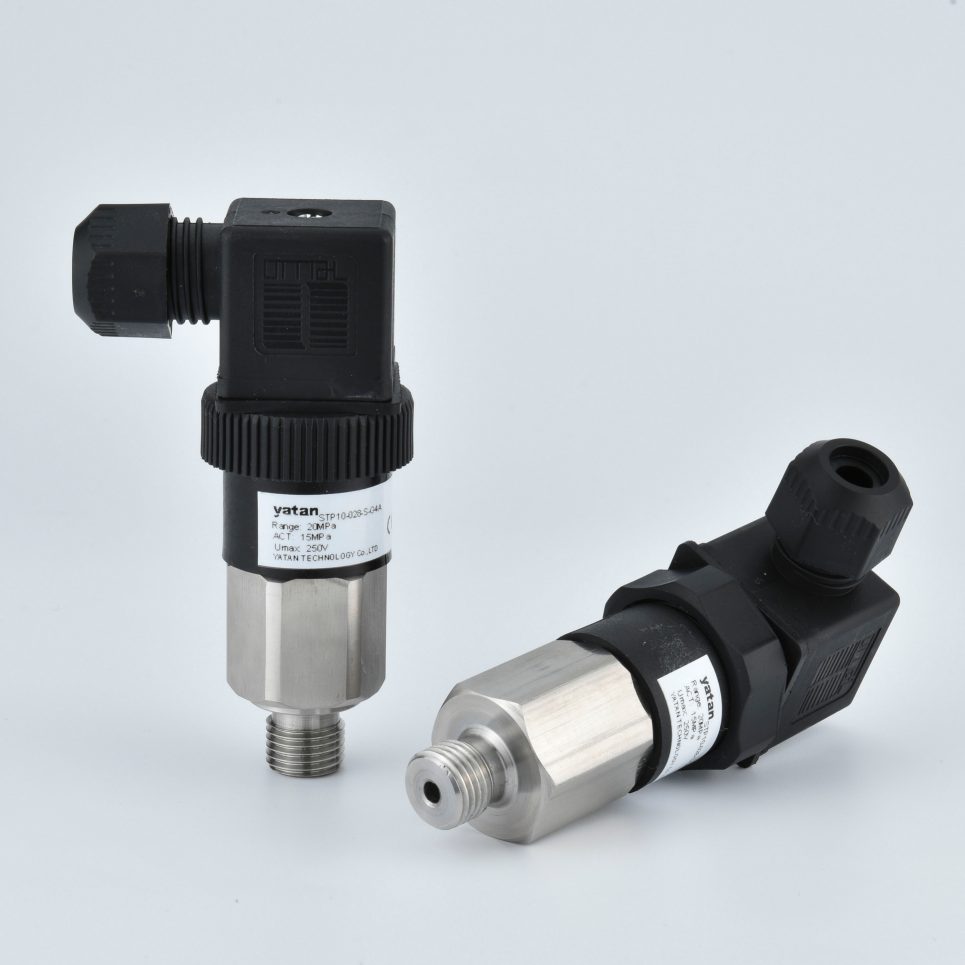

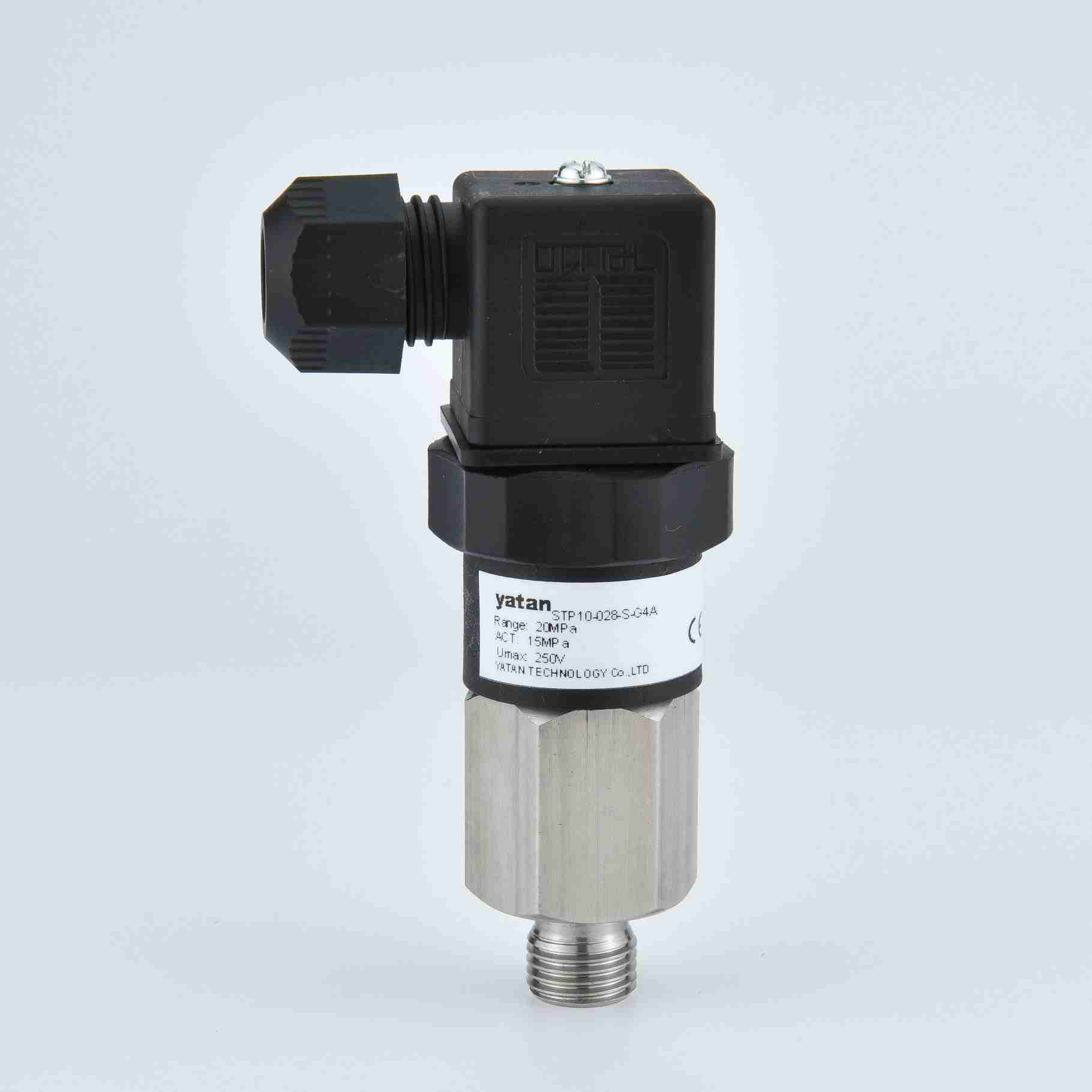

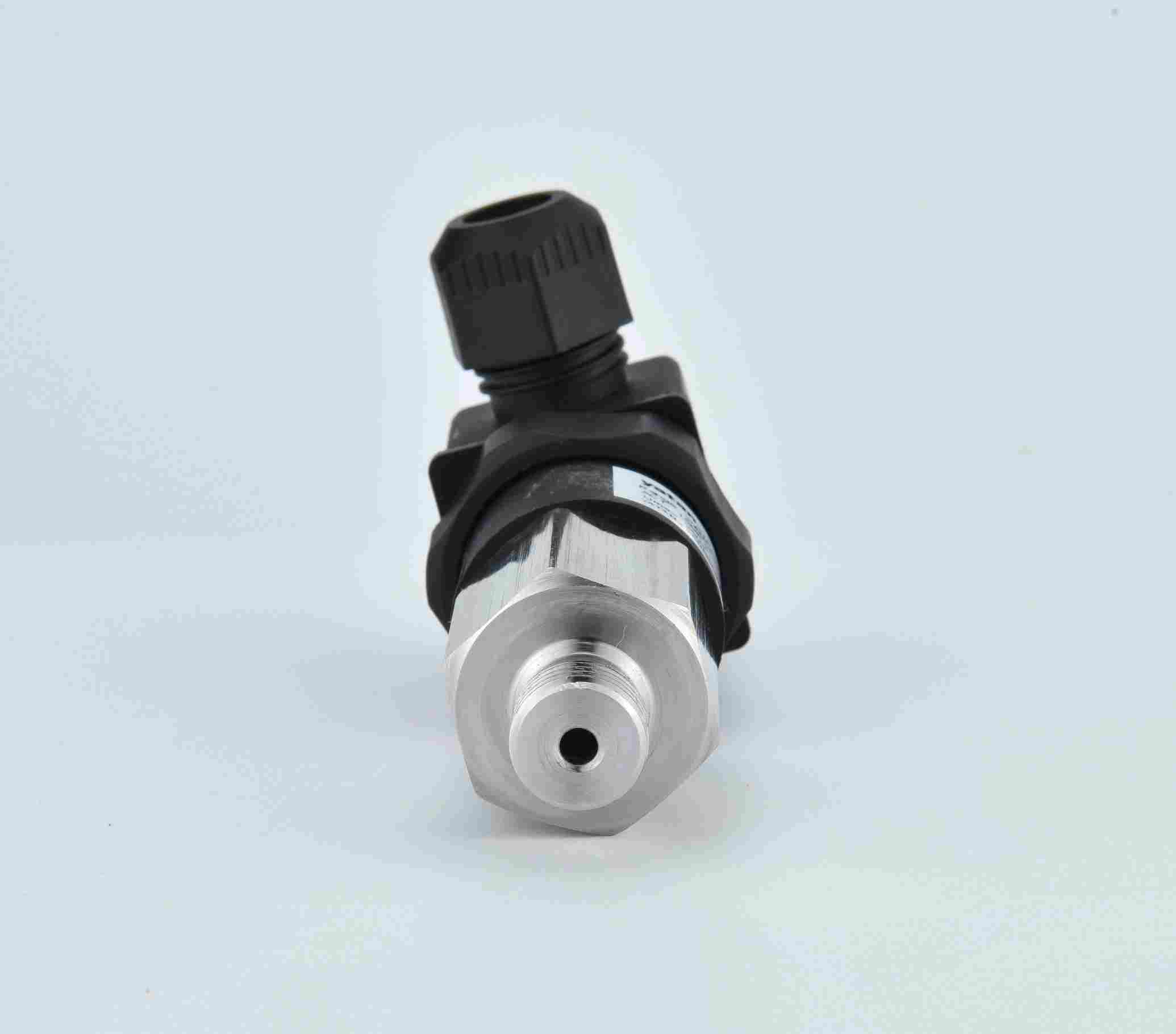

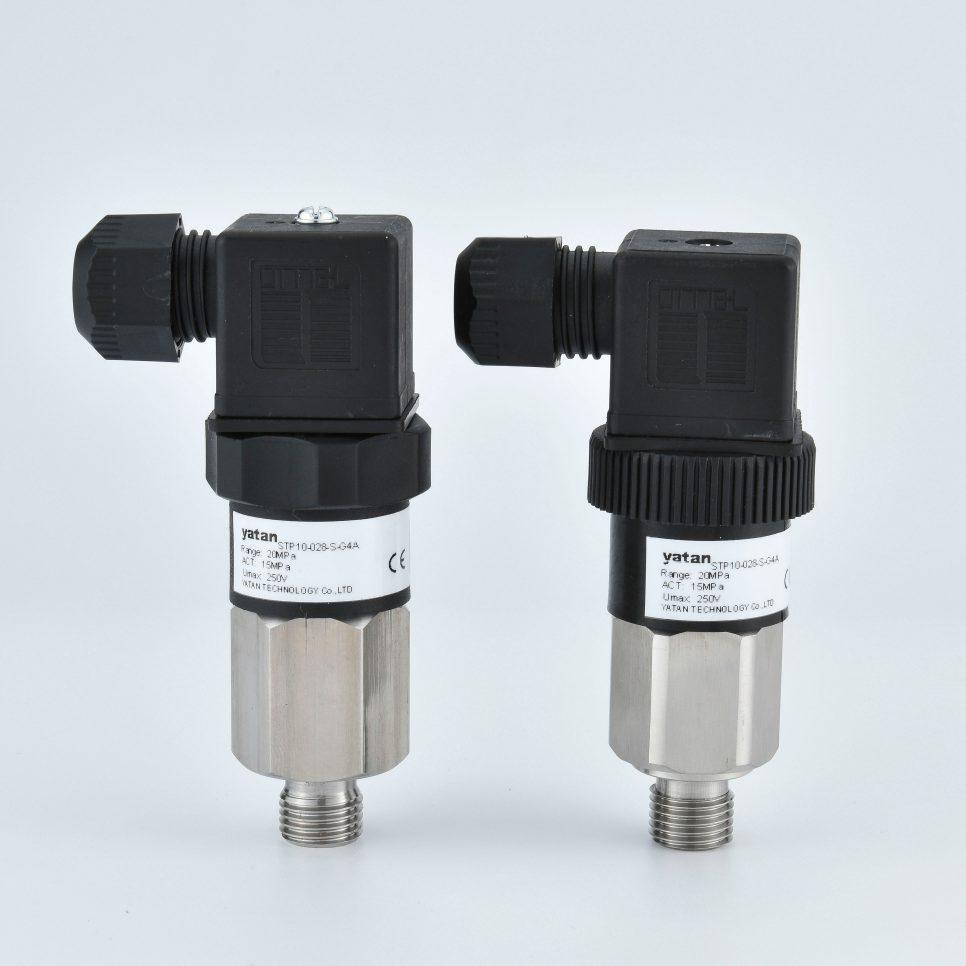

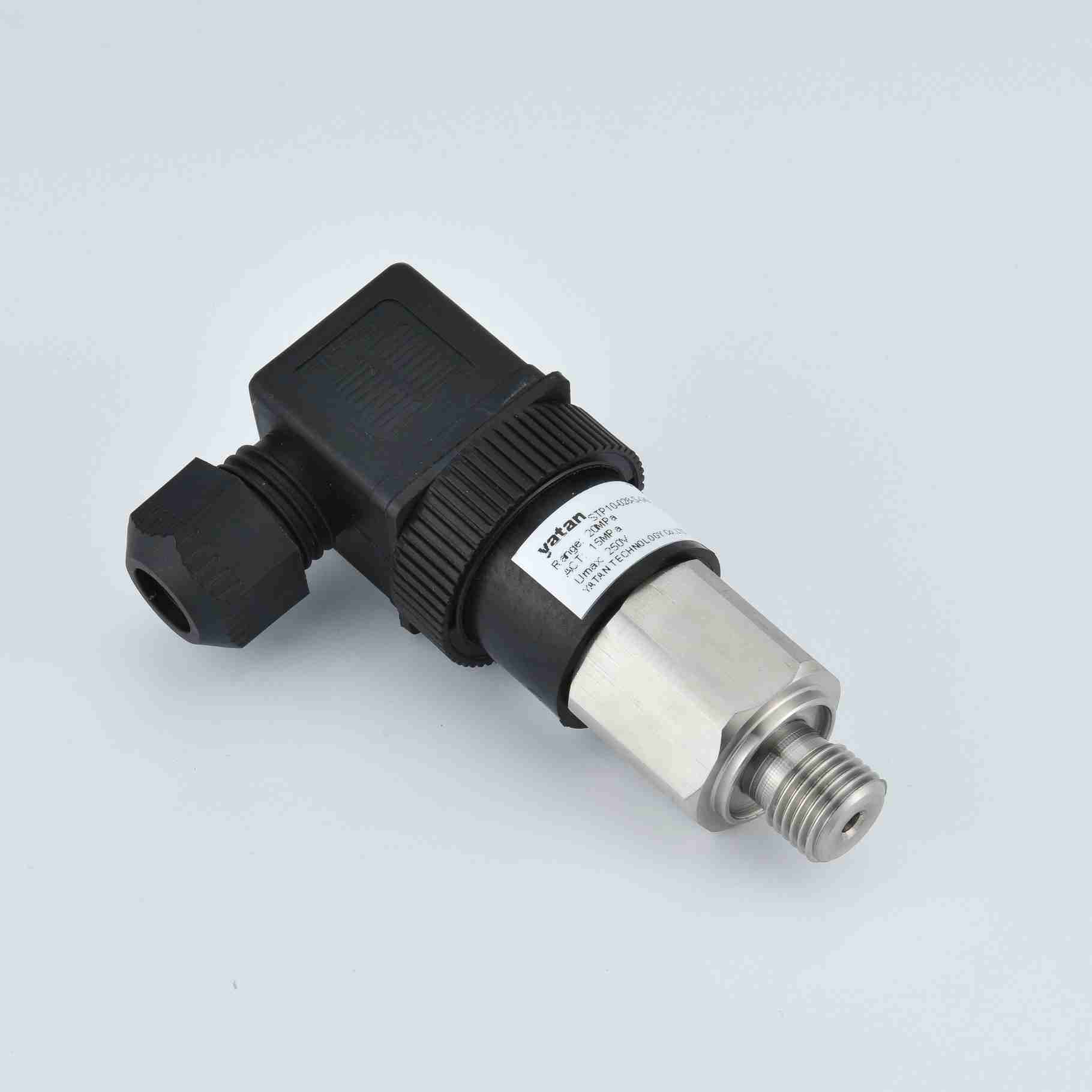

The STP10 series mechanical pressure switch uses a diaphragm or piston sensing element to convert pressure changes into fast and reliable contact switching control. The switch setpoint is adjustable, covering a wide range from 0.2 to 420 bar, suitable for water, oil, and gas media. It features a stainless-steel housing with IP65 protection, ensuring stable operation in harsh industrial environments with high or low temperatures. The internal changeover contact design provides fast response, high precision, and long-term stability. Multiple process connections (G1/4, G1/2, NPT, etc.) and DIN43650 electrical interfaces are available for flexible installation. Widely used in rail braking systems, wind power hydraulics, construction machinery, presses, medical equipment, and semiconductor equipment, the STP10 is an ideal solution for reliable pressure monitoring and safety control.

Request a Quote

1. Key Features

Adjustable switching point for flexible pressure setting
Stainless steel housing for enhanced durability and corrosion resistance
SPDT changeover contact output for reliable signal switching
High switching accuracy with excellent long-term stability

2. Technical Specifications

General Electrical Data

Model A	2.5, 003, 004, 005, 006, 012, 013, 015, 028, 040, 050, 100, 420
Adjustment Range A(bar)	0.2–0.25, 0.3–3, 1–4, 0.8–5, 0.6–6, 1–12, 1–13, 5–15, 4–28, 6–40, 5–50, 10–100, 100–420
Measuring Principle	Diaphragm type(overpressure resistance up to 250 bar), piston type(overpressure resistance up to 600 bar)
Model B	028, 040, 050, 100, 160, 250, 420
Adjustment Range B (bar)	4–28, 6–40, 5–50, 10–100, 100–420 (bar)
Switch Type	Mechanical pressure switch (SPDT contact mechanism)
Switching Range	0.2–420 bar

Performance Specifications

Pressure resistance	600bar
Accuracy	±2% of full scale (FS)
Medium temperature range	-40 to +80°C (0 to +100°C with FKM / Fluororubber sealing)
Operating temperature range	-40 to +80°C

3. Applications

Railway braking systems
Wind power hydraulic systems
Construction machinery
Hydraulic presses
Medical equipment
Semiconductor equipment
Other industrial applications

4. Selection Guide

Pressure Sensor Selection Key Points: Confirm the measuring range, match the output signal, ensure media compatibility, select the appropriate mounting interface, and define the accuracy requirements.

5. FAQ (Frequently Asked Questions)

Q1: What process and electrical connections are available for the STP10 switch?

It supports multiple process connections such as G1/4, G1/2, NPT, and M20×1.5, and uses a standard DIN43650-A electrical connector for easy installation and system integration.

Q2: What is the protection rating of the STP10 pressure switch?

The device is rated IP65, providing strong protection against dust and water ingress, making it suitable for harsh industrial environments.

Q3: Is the STP10 pressure switch suitable for long-term industrial use?

Yes, it is designed with a stainless-steel housing and high-quality sensing components, offering ±2% full-scale accuracy and excellent vibration resistance for long-term stable operation.

Q4: What sensing technologies are used in the STP10 pressure switch?

The STP10 features diaphragm-type and piston-type sensing elements. The diaphragm version is ideal for general applications, while the piston version supports high-pressure systems with overpressure resistance up to 600 bar.

Q5: What is the pressure range of the STP10 industrial pressure switch?

The STP10 adjustable pressure switch covers a wide range from 0.2 to 420 bar depending on the model, making it suitable for both low-pressure and high-pressure industrial systems with precise setpoint adjustment.

Q6: What industries use the STP10 Mechanical Pressure Switch by Shanghai Yatan?

The STP10 mechanical pressure switch by Shanghai Yatan (Yatan) is widely used in rail braking systems, wind power hydraulics, construction machinery, presses, medical equipment, and semiconductor equipment for reliable pressure monitoring and safety control in water, oil, and gas applications.

6. Related Products

7. Contact Us

📧 Email: sales@yatansensor.com, support@yatansensor.com

💬 WhatsApp:+86 185 1660 2370

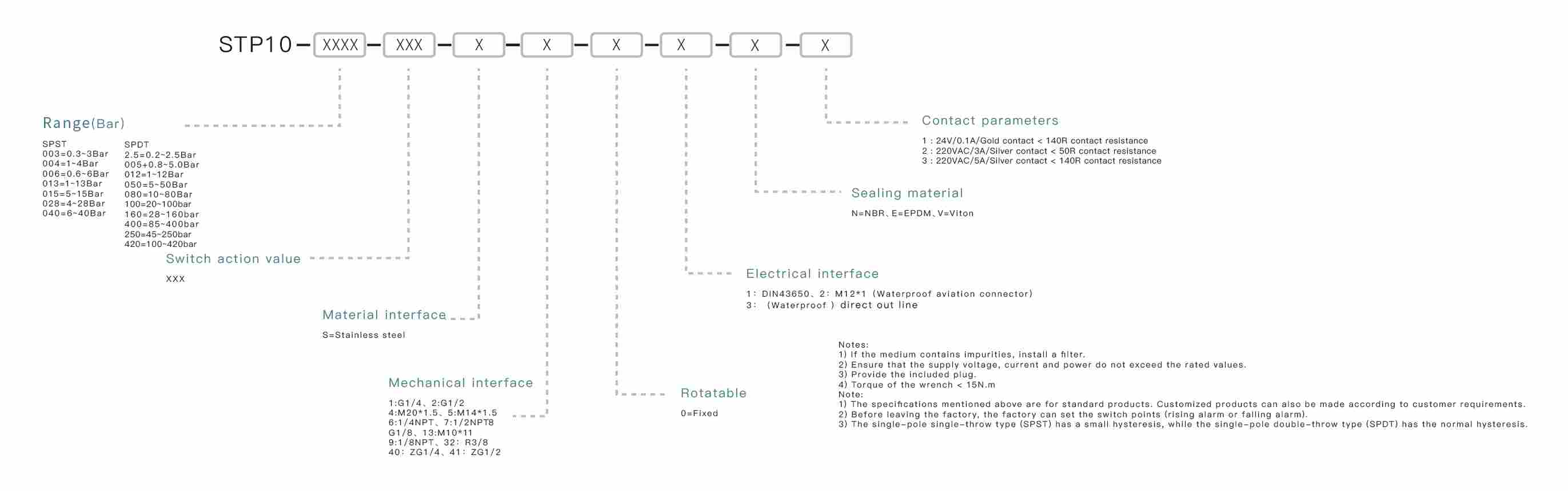

8. Model Selection / Ordering Code

Please specify the full ordering code when requesting a quotation.

        Quantity - Model – Measuring Range – Output Signal – Process Connection (Thread) – Electrical Connection – Insertion Length – Supply Voltage – Linearity

        Example:
        1 pcs - STP10 - 600Bar - PNP - G1/4 - Cable Output- 1m - 12VDC - 0.5%
