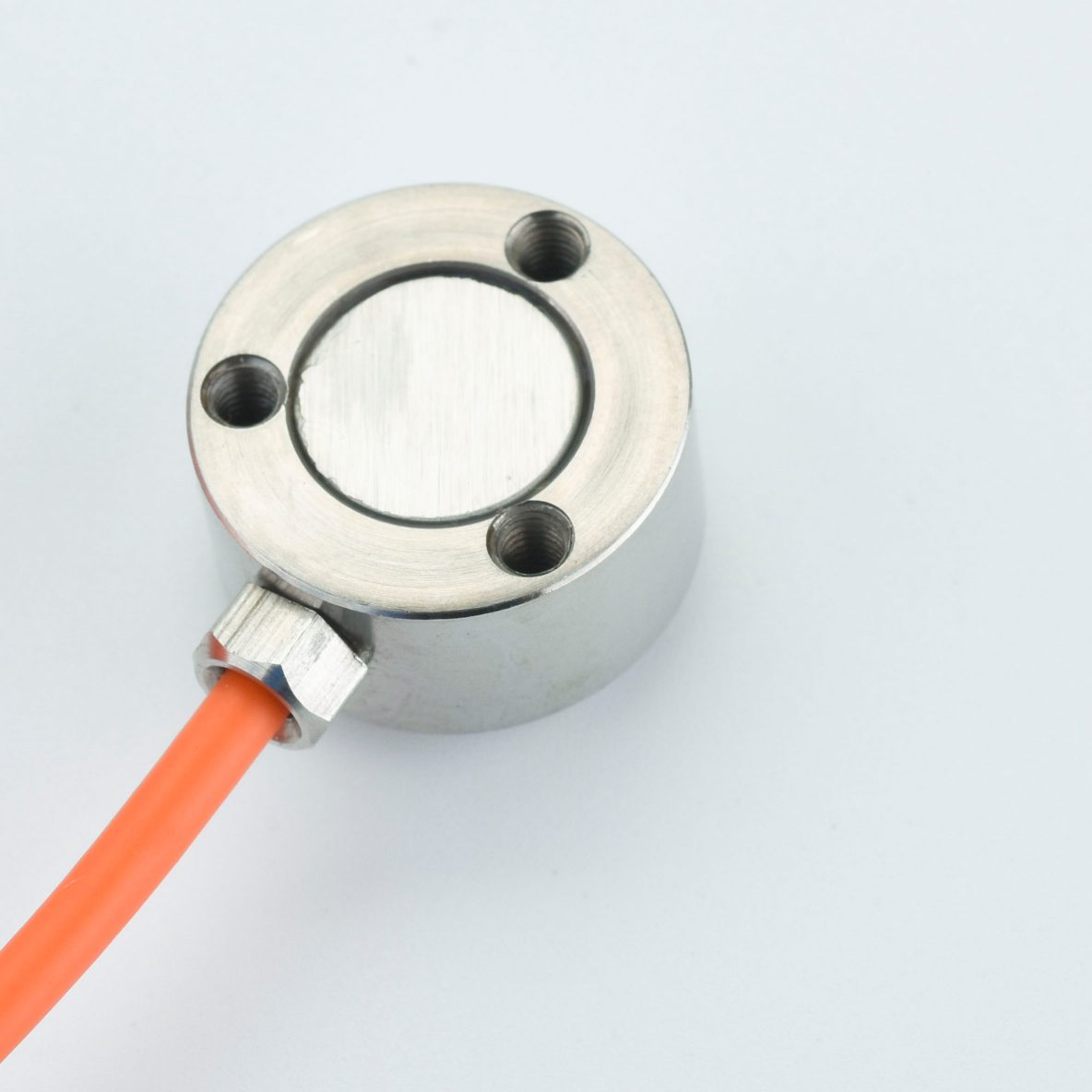

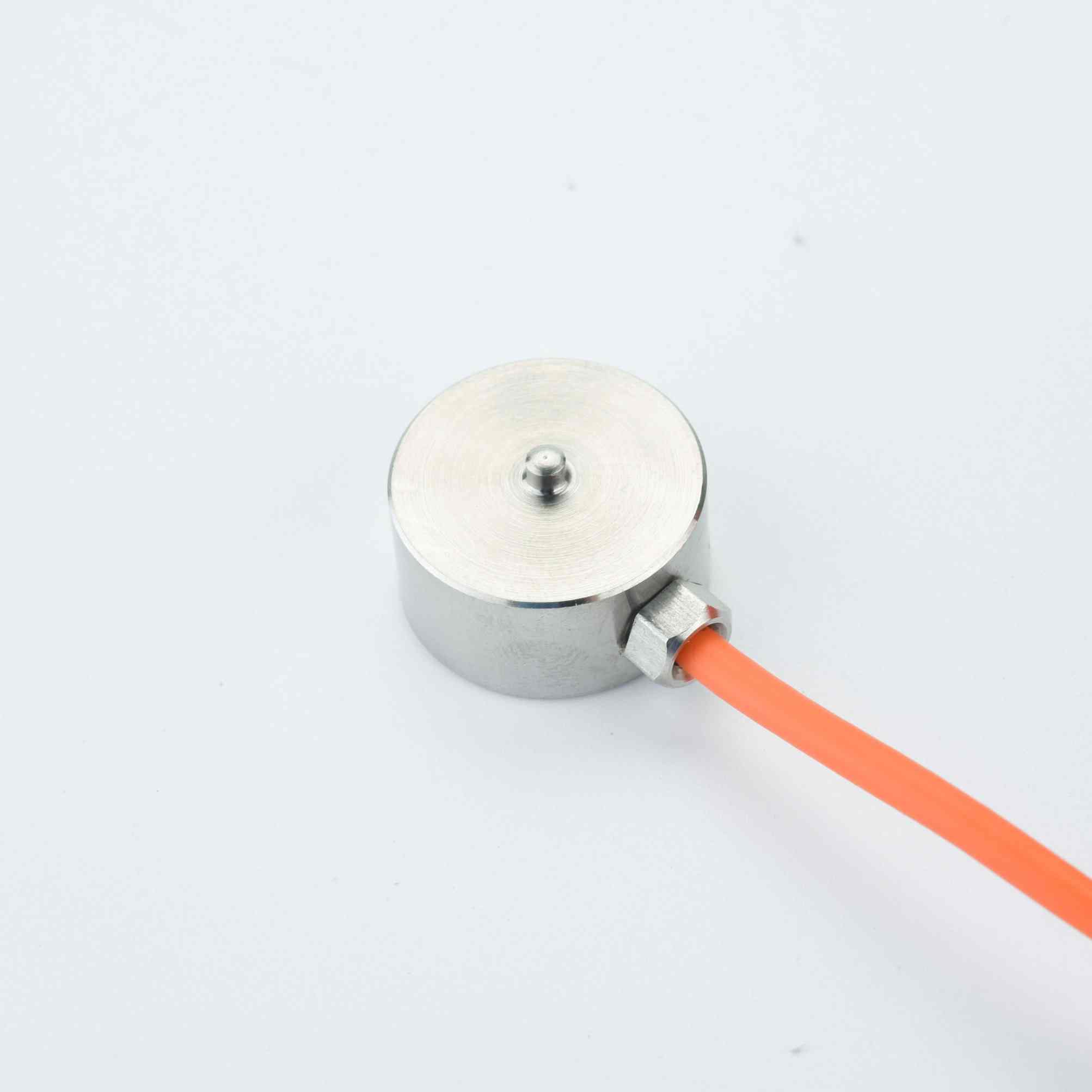

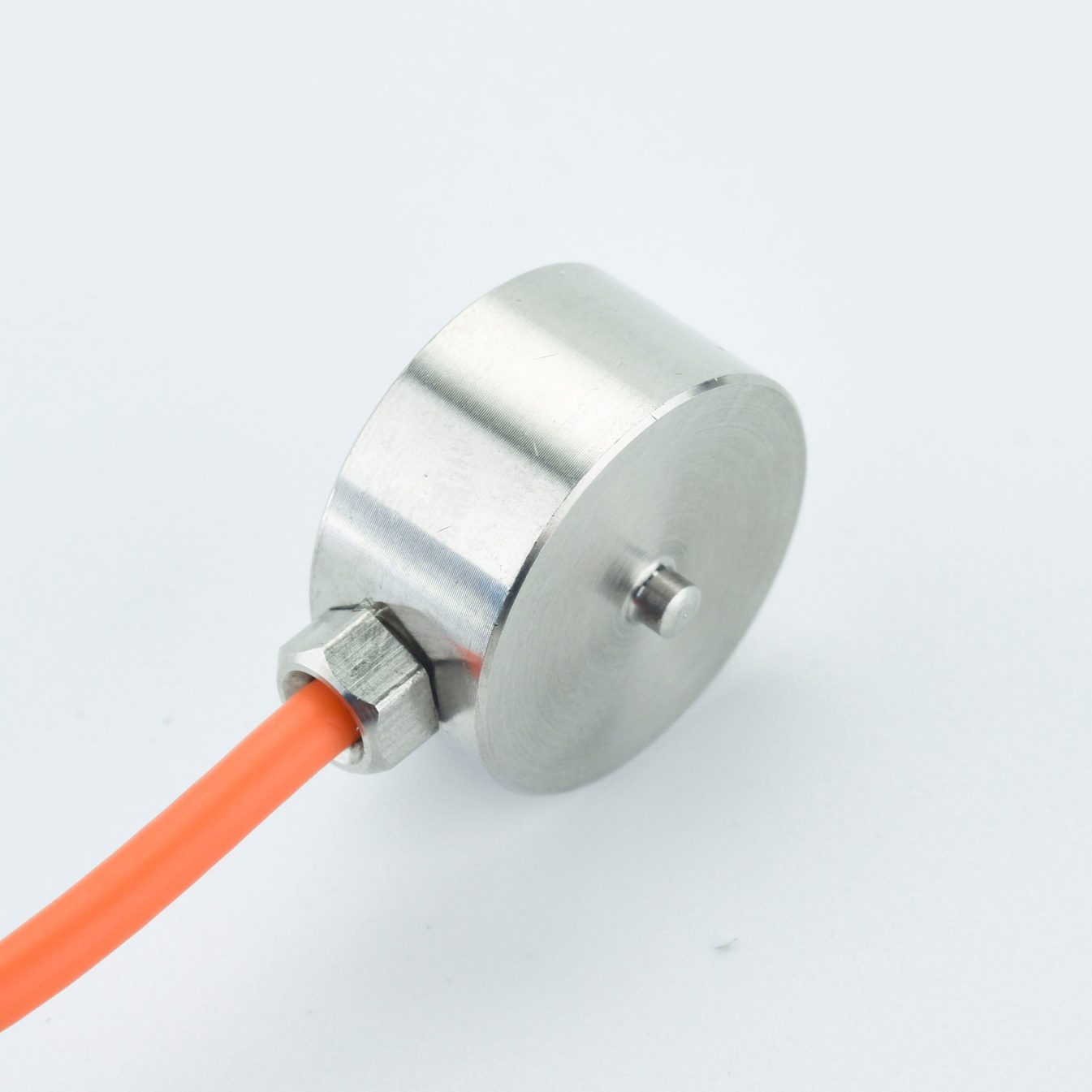

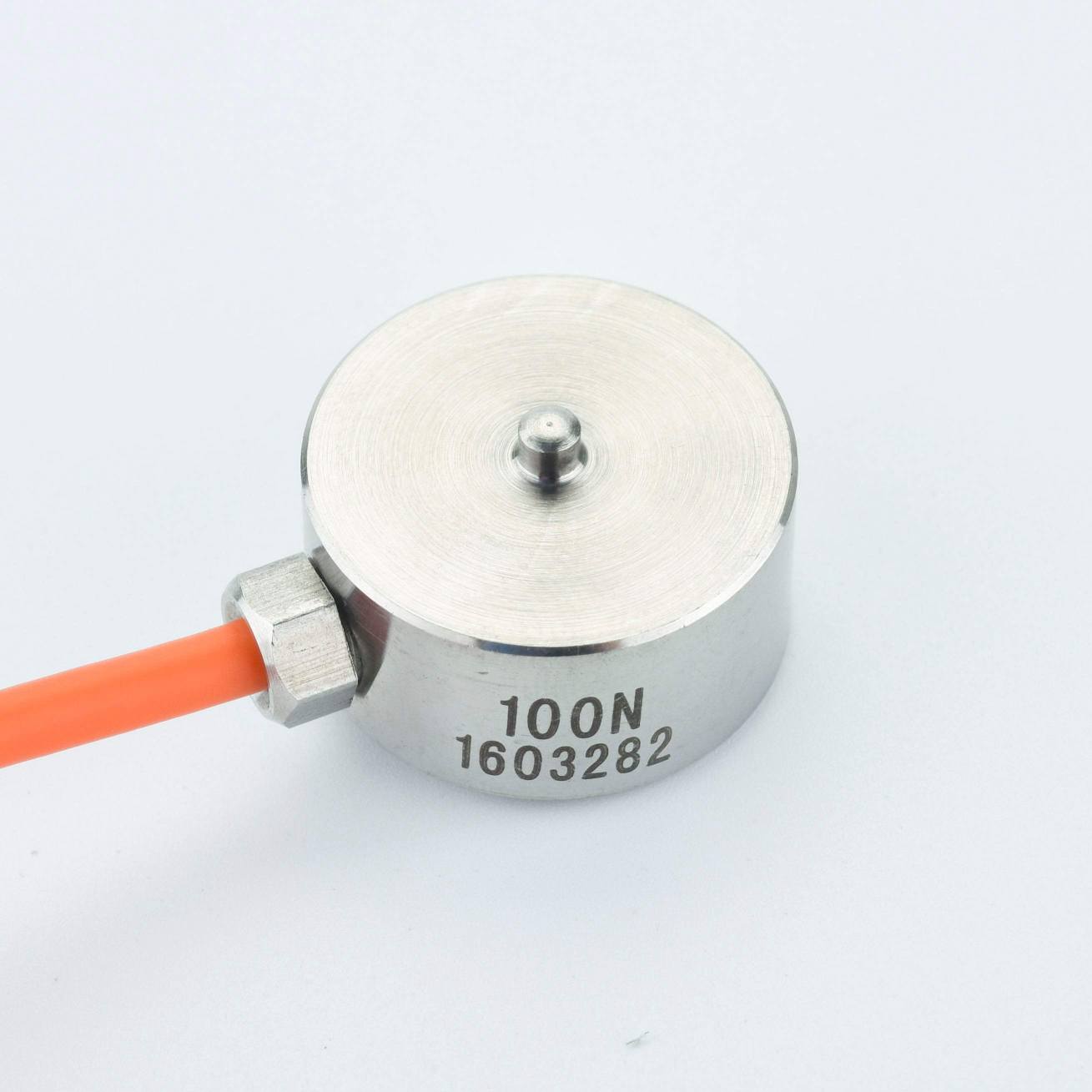

STW09 Compact Compression Load Cell

The STW09 Miniature Load Cell is a compact high-precision force sensor designed for compression force measurement in limited installation spaces. Featuring a small size and easy mounting structure, it is widely used in automation equipment, press-fit testing, industrial control systems, force monitoring, and load measurement applications. The sensor supports multiple measuring ranges from 0 to 20KN and offers fast response, high stability, and excellent anti-interference performance. Available output options include mV, 4-20mA, 0-10V, RS485 Modbus RTU, CANOPEN, PNP, and NPN, making it compatible with PLCs, industrial controllers, and intelligent systems. Constructed with alloy steel or stainless steel housing, the STW09 provides reliable durability and corrosion resistance for long-term industrial use, making it an ideal solution for miniature force sensing and compact load measurement applications.

1. Key Features

High Accuracy Measurement
Various output signal options available
Compact size and easy installation
High stability and strong anti-interference capability
Ideal for limited-space installations

2. Technical Specifications

General Electrical Data

Capacity Range	0~0.1KN, 0~2KN, 0~3KN, 0~10KN, 0~20KN (all capacities available within 0~20KN)
Sensitivity	1.0~1.5mV/V
Output Signal	mV/V (default), 4–20mA, 0–5V, 1–5V, 0–10V, 0.5–4.5V, RS485 Modbus RTU, CANopen, PNP, NPN
Supply Voltage	12 VDC / 24 VDC

Performance Specifications

Comprehensive Accuracy	0.5%F.S.(including non-linearity, hysteresis, and repeatability)
Creep Error
Zero Balance	±1%F.S
Zero Temperature Effect	±0.05%F.S/10°C
Output Temperature Effect	±0.05%F.S/10°C
Safe Overload	150%F.S
Operating Temperature Range	-20°C to +65°C

3. Applications

Robotics & Mechanical Systems
Industrial Automation Equipment
Medical equipment
Industrial equipment
Scientific research and laboratory applications
Laboratory and testing equipment
Other industrial applications

4. Selection Guide

Pressure Sensor Selection Key Points: Confirm the measuring range, match the output signal, ensure media compatibility, select the appropriate mounting interface, and define the accuracy requirements.

5. FAQ (Frequently Asked Questions)

Q1: Does the STW09 Miniature Force Sensor support customization?

Yes. The STW09 Miniature Force Sensor can be customized in measuring range, output signal, power supply, and mounting structure according to specific application requirements.

Q2: What housing materials are available for the STW09 Miniature Load Cell?

The sensor housing is available in alloy steel or stainless steel, providing excellent durability, corrosion resistance, and long service life in industrial environments.

Q3: How accurate is the STW09 Miniature Force Transducer?

The STW09 Miniature Force Transducer offers comprehensive accuracy up to 0.5% F.S with good linearity, repeatability, and long-term stability for industrial force measurement applications.

Q4: Can the STW09 Miniature Load Cell be installed in limited spaces?

Yes. The STW09 Miniature Load Cell features a compact structure and easy installation, making it ideal for confined installation environments such as automation equipment and press systems.

Q5: What is the maximum capacity of the STW09 Miniature Load Cell?

The STW09 Miniature Load Cell supports customized measuring ranges up to 20KN, including 0.1KN, 2KN, 3KN, 10KN, and 20KN options.

Q6: What output signals does the STW09 Miniature Force Sensor support?

The STW09 Miniature Force Sensor supports multiple output options including mV, 4-20mA, 0-5V, 1-5V, 0-10V, 0.5-4.5V, Modbus RS485 RTU, CANOPEN, PNP, and NPN for easy integration with PLCs and industrial control systems.

Q7: What industries is the STW09 Miniature Load Cell suitable for?

The STW09 Miniature Load Cell is widely used in automation equipment, industrial force measurement, press-fit testing, robotics, medical devices, laboratory systems, and smart manufacturing applications, especially where installation space is limited.

6. Related Products

7. Contact Us

📧 Email: sales@yatansensor.com, support@yatansensor.com

💬 WhatsApp:+86 185 1660 2370

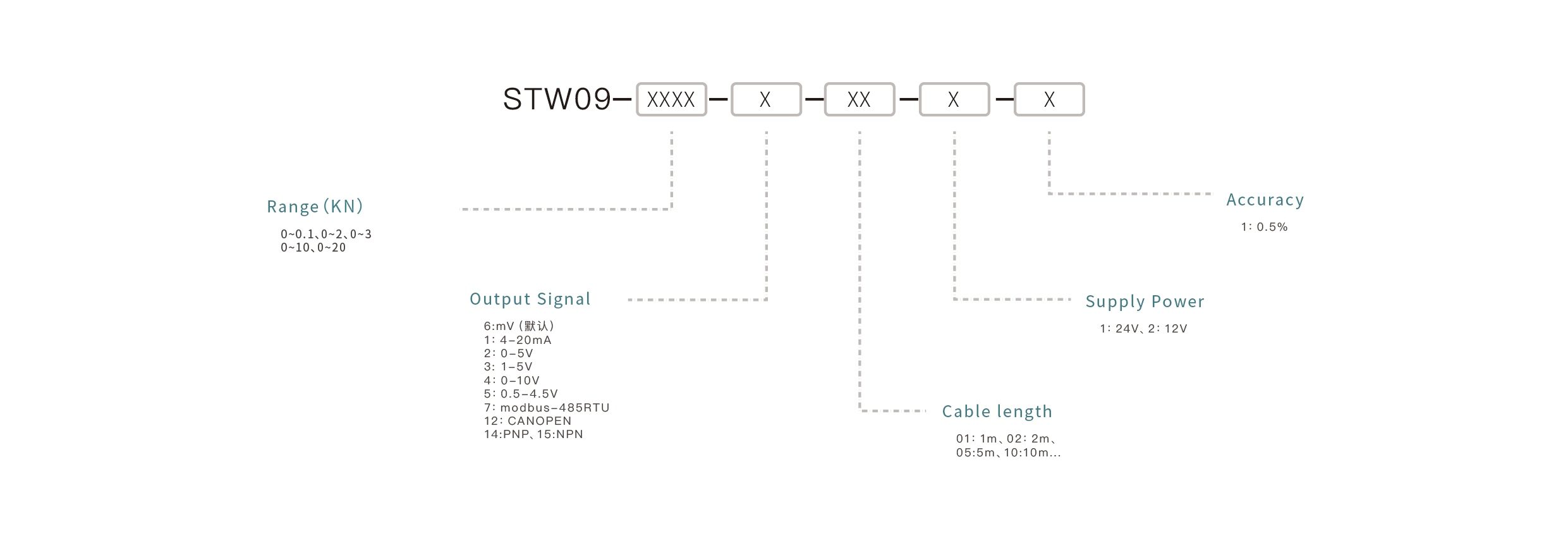

8. Model Selection / Ordering Code

Please specify the full ordering code when requesting a quotation.

        Model - Measuring Range - Output Signal - Cable Length - Power Supply - Linearity Accuracy

        Example:
        STW09 - 100N - 4-20mA - 2m - 12V  - 0.2%
