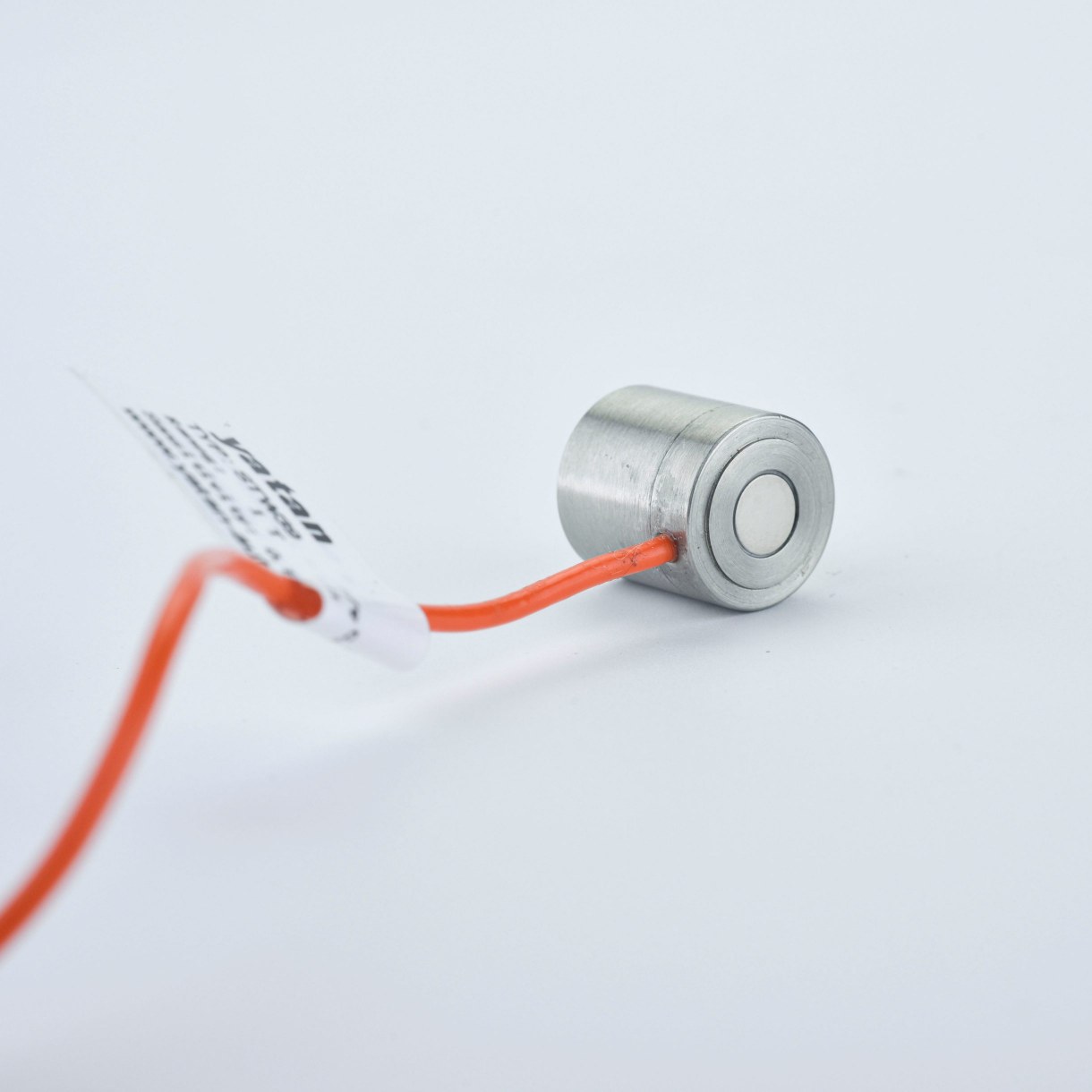

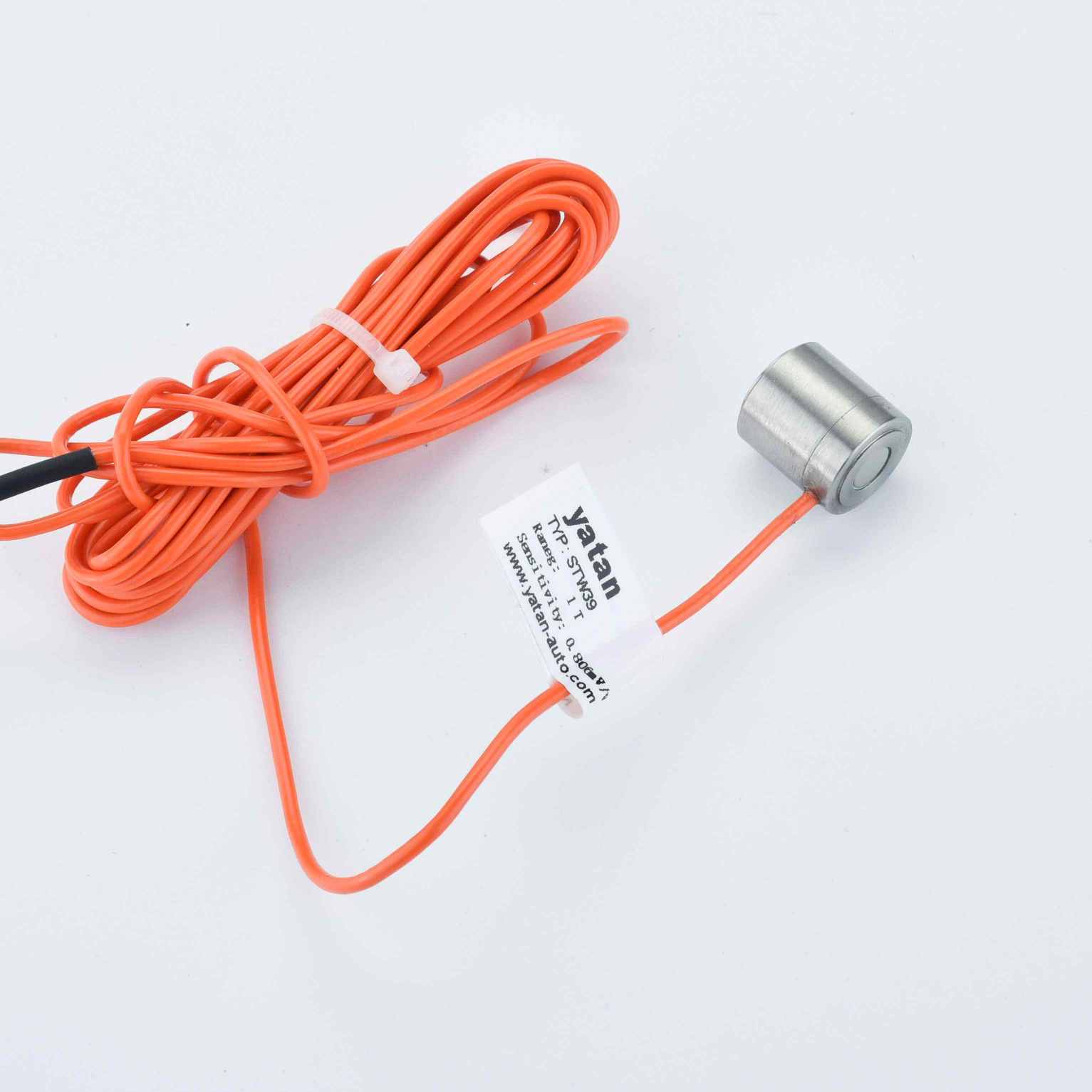

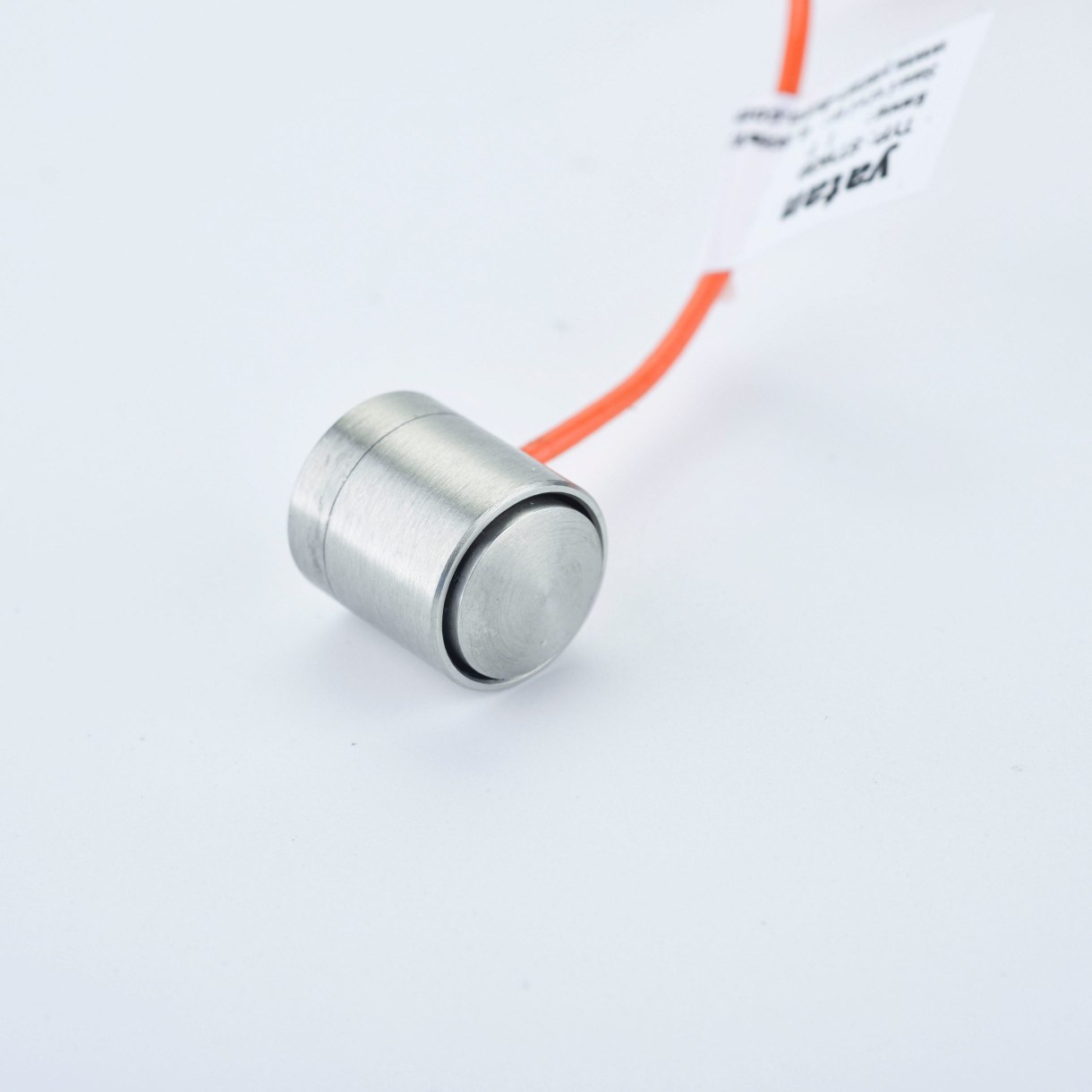

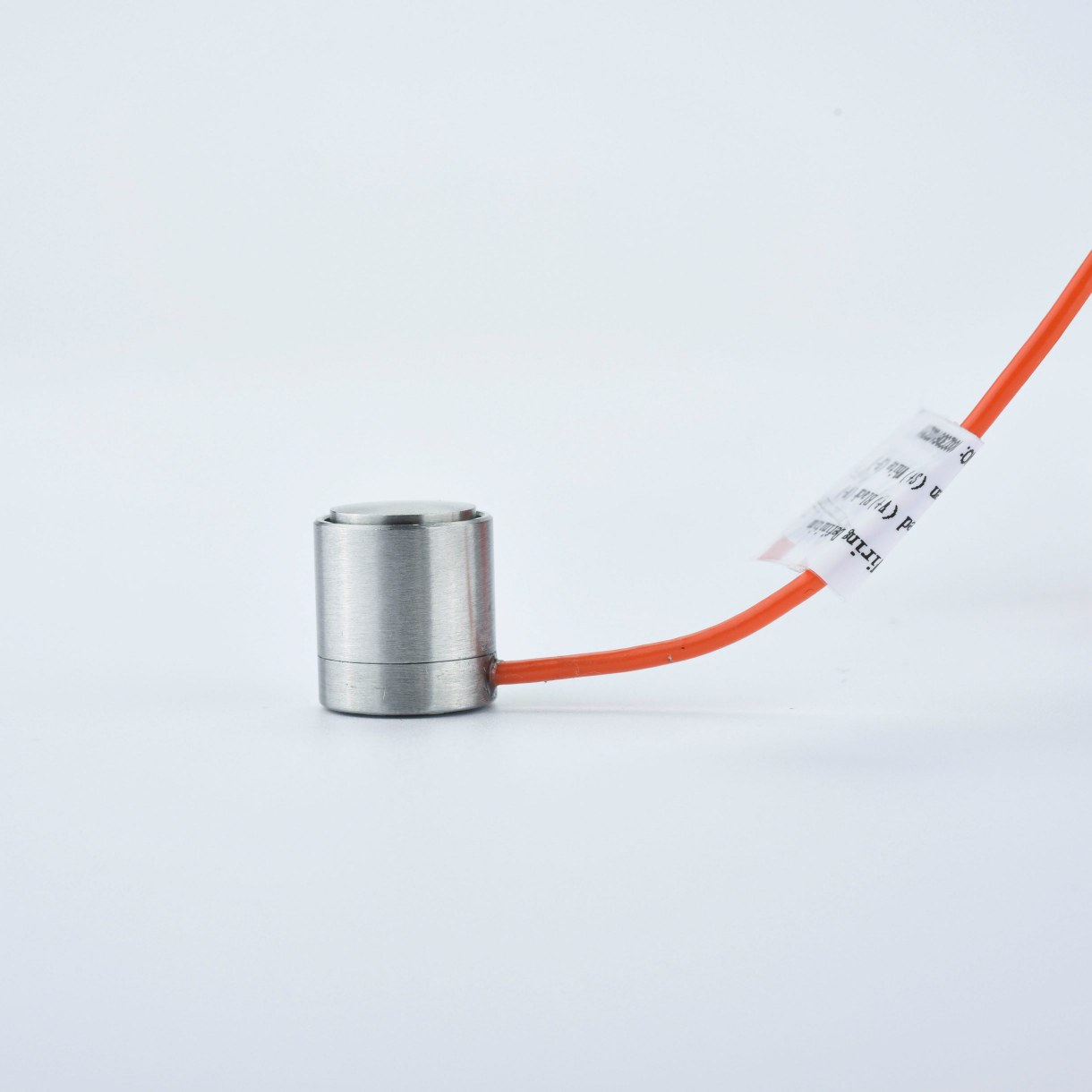

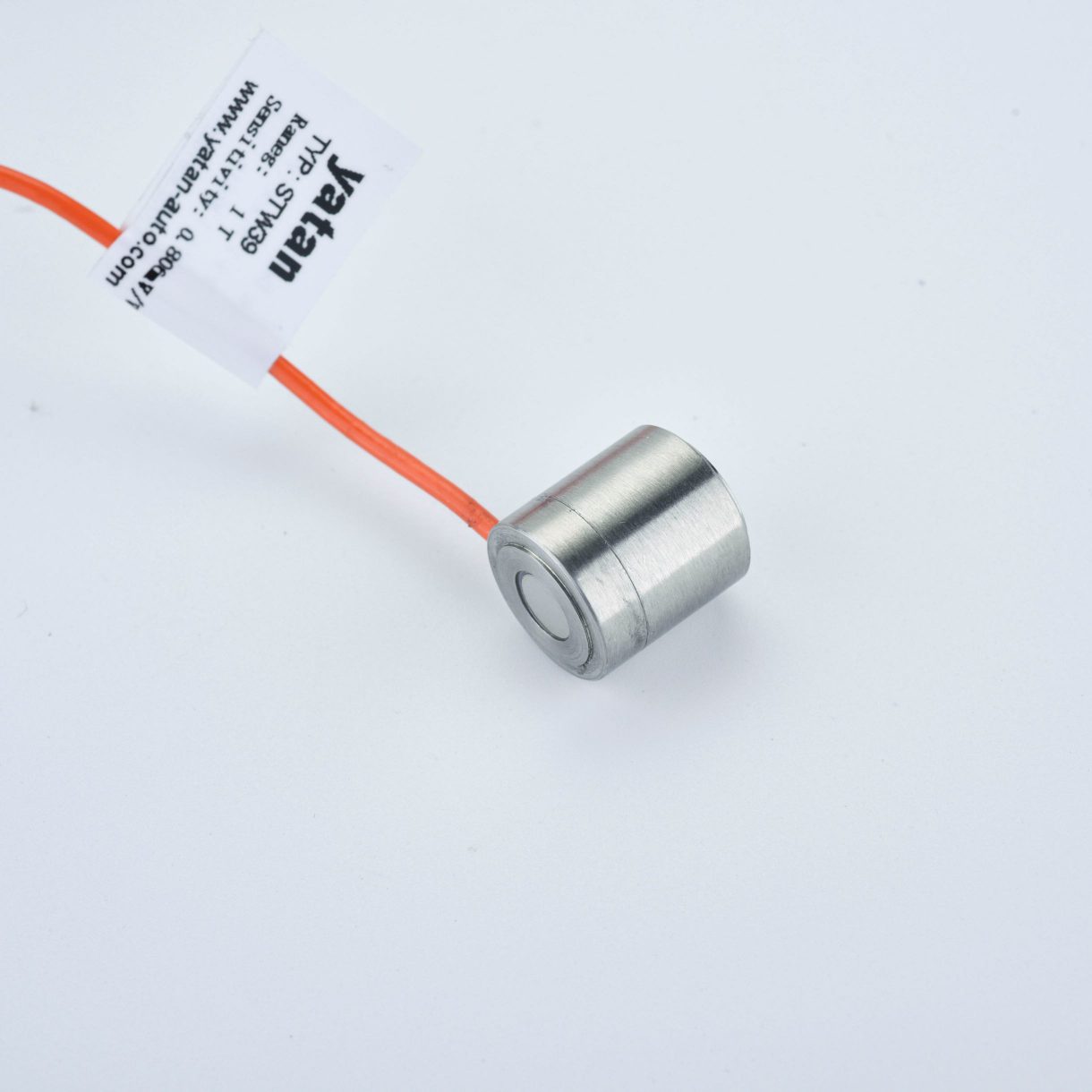

STW39 Micro High Capacity Compression Load Cell (Column Type)

The STW39 Micro High-Capacity Load Cell features a robust column-type compression design, specifically engineered for high-force measurement in compact spaces. With a wide measurement range from 1T to 15T, fast dynamic response, and stable performance, it is ideal for applications such as stamping equipment, automation systems, and industrial force monitoring. The STW39 supports multiple output options, including mV, 4-20mA, 0-10V, RS485 Modbus, and CANopen, ensuring seamless integration with various control systems. Built with alloy steel or stainless steel housing, it offers excellent durability, mechanical strength, and resistance to environmental factors. Its high accuracy and temperature stability make it a reliable solution for industrial automation, system integration, and precision force measurement tasks.

Request a Quote

1. Key Features

Miniature structure design for space-limited installation
Column-type design with high load capacity
Fast dynamic response for high-speed measurement
Various output signal options available
Strong anti-interference capability

2. Technical Specifications

General Electrical Data

Measuring Range	0–1T, 0–2.5T, 0–5T, 0–7.5T, 0–10T, 0–15T (all ranges available from 0–1T to 0–15T)
Sensitivity	1.0–2.0 mV/V
Bridge Excitation Voltage	5–12VDC(Recommended: 10 VDC)
Output Signal	mV/V (default), 4–20mA, 0–5V, 1–5V, 0–10V, 0.5–4.5V, RS485 Modbus RTU, CANopen, PNP, NPN

Performance Specifications

Comprehensive Accuracy	0.5%F.S.(including non-linearity, hysteresis, and repeatability)
Creep	±0.3%F.S/30 min
Zero Balance	±1%F.S
Zero Temperature Effect	±0.05% F.S / 10℃
Sensitivity Temperature Drift	≤±0.05%F.S / 10°C
Overload pressure	120% F.S.
Operating Temperature Range	-20°C to +65°C

3. Applications

High-load measurement in limited spaces
Load measurement in industrial machinery
Force monitoring in stamping equipment
Force measurement for packaging machinery
Robotic force control systems
Other industrial applications

4. Selection Guide

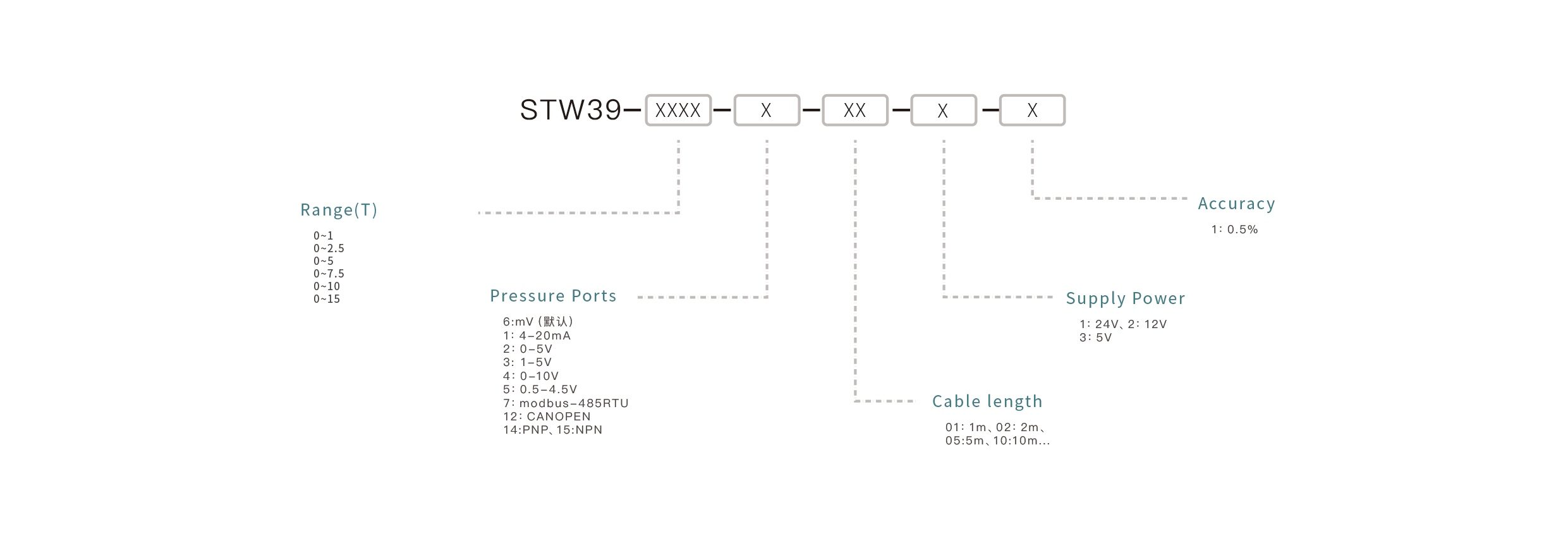

Pressure Sensor Selection Key Points: Confirm the measuring range, match the output signal, ensure media compatibility, select the appropriate mounting interface, and define the accuracy requirements.

5. FAQ (Frequently Asked Questions)

Q1: Can the STW39 Micro High Capacity Load Cell be used for dynamic force measurement?

Yes, the STW39 Micro High Capacity Load Cell offers fast dynamic response, making it suitable for high-speed and dynamic force measurement applications.

Q2: How to install the STW39 Micro High Capacity Load Cell? Is it easy to integrate?

The STW39 Micro High Capacity Load Cell features a compact structure for flexible installation and easy integration into industrial systems and machinery.

Q3: Is the STW39 Micro High Capacity Load Cell suitable for harsh environments?

Yes, the STW39 Micro High Capacity Load Cell is built with alloy steel or stainless steel housing and operates reliably in temperatures from -20°C to +65°C.

Q4: What is the accuracy of the STW39 Micro High Capacity Load Cell?

The STW39 Micro High Capacity Load Cell provides an accuracy of up to ±0.5% F.S, ensuring reliable repeatability and stable performance for industrial applications.

Q5: What output signals does the STW39 Micro High Capacity Load Cell support?

The STW39 Micro High Capacity Load Cell supports multiple outputs including mV, 4-20mA, 0-10V, RS485 Modbus, and CANopen for easy integration into various systems.

Q6: What is the capacity range of the STW39 Micro High Capacity Load Cell? Is customization available?

The STW39 Micro High Capacity Load Cell offers a range from 1T to 15T, with multiple selectable capacities and customization options available upon request.

Q7: What applications is the STW39 Micro High Capacity Load Cell suitable for?

The STW39 Micro High Capacity Load Cell is ideal for stamping machines, automated production lines, press-fitting systems, and industrial force measurement, especially in compact spaces with high load requirements.
