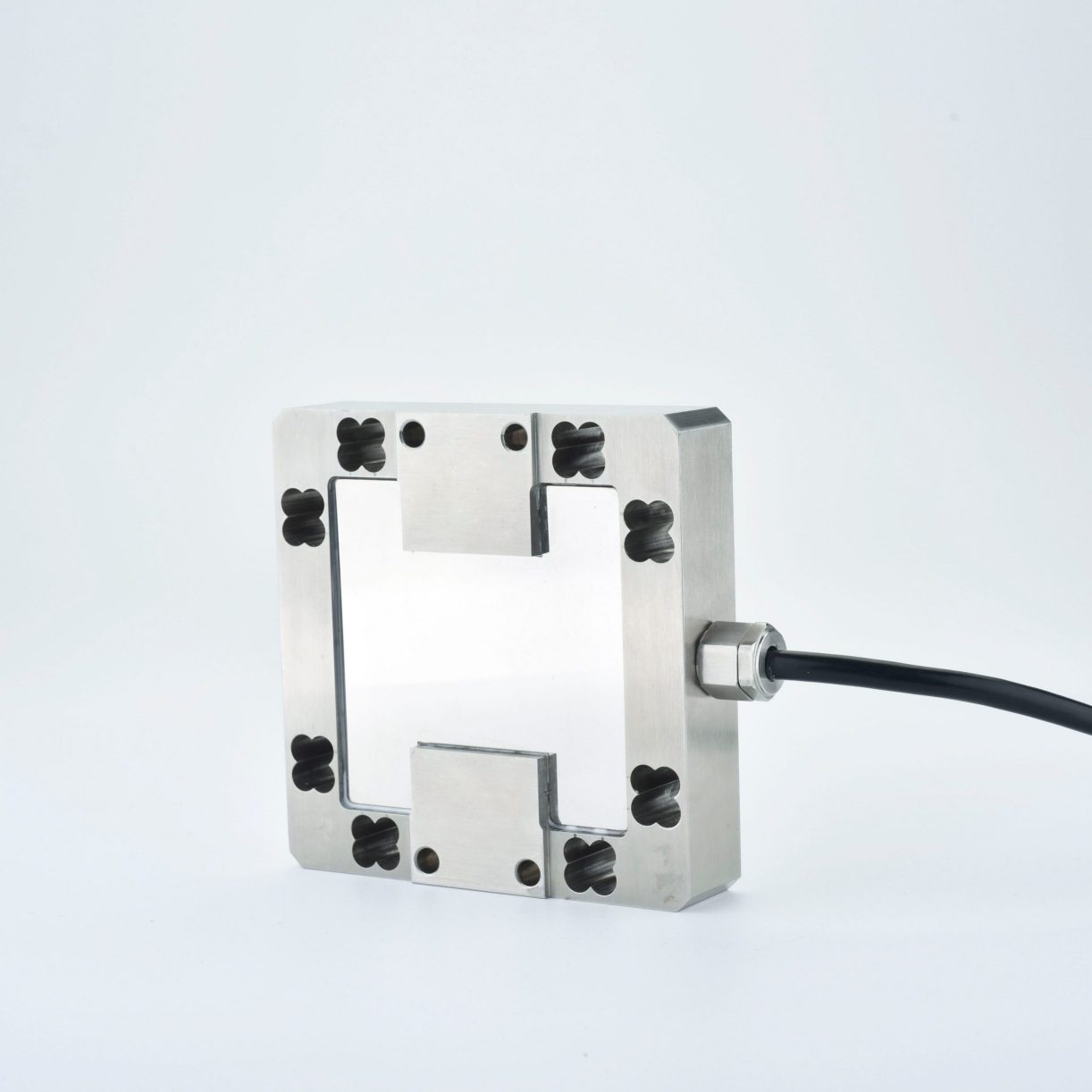

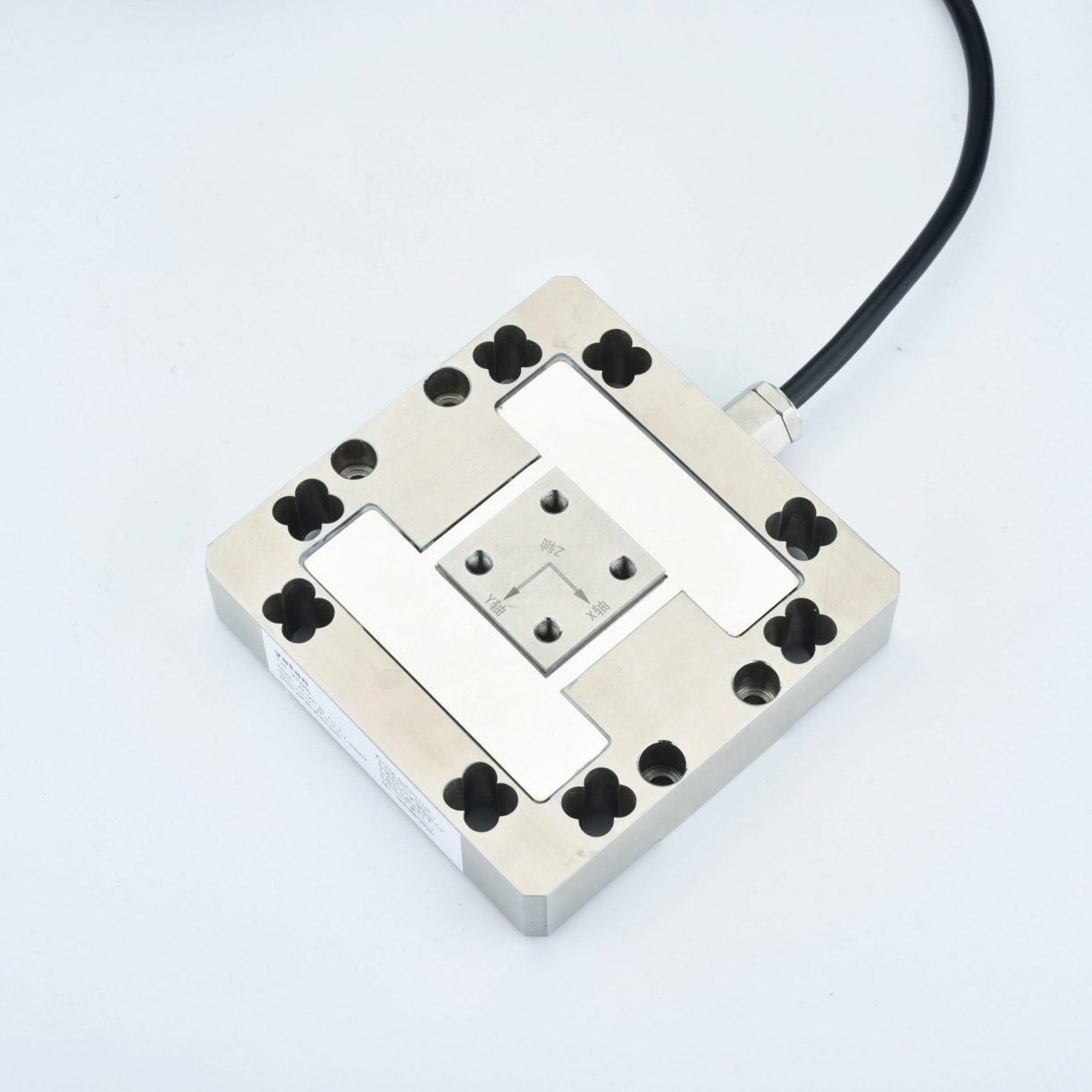

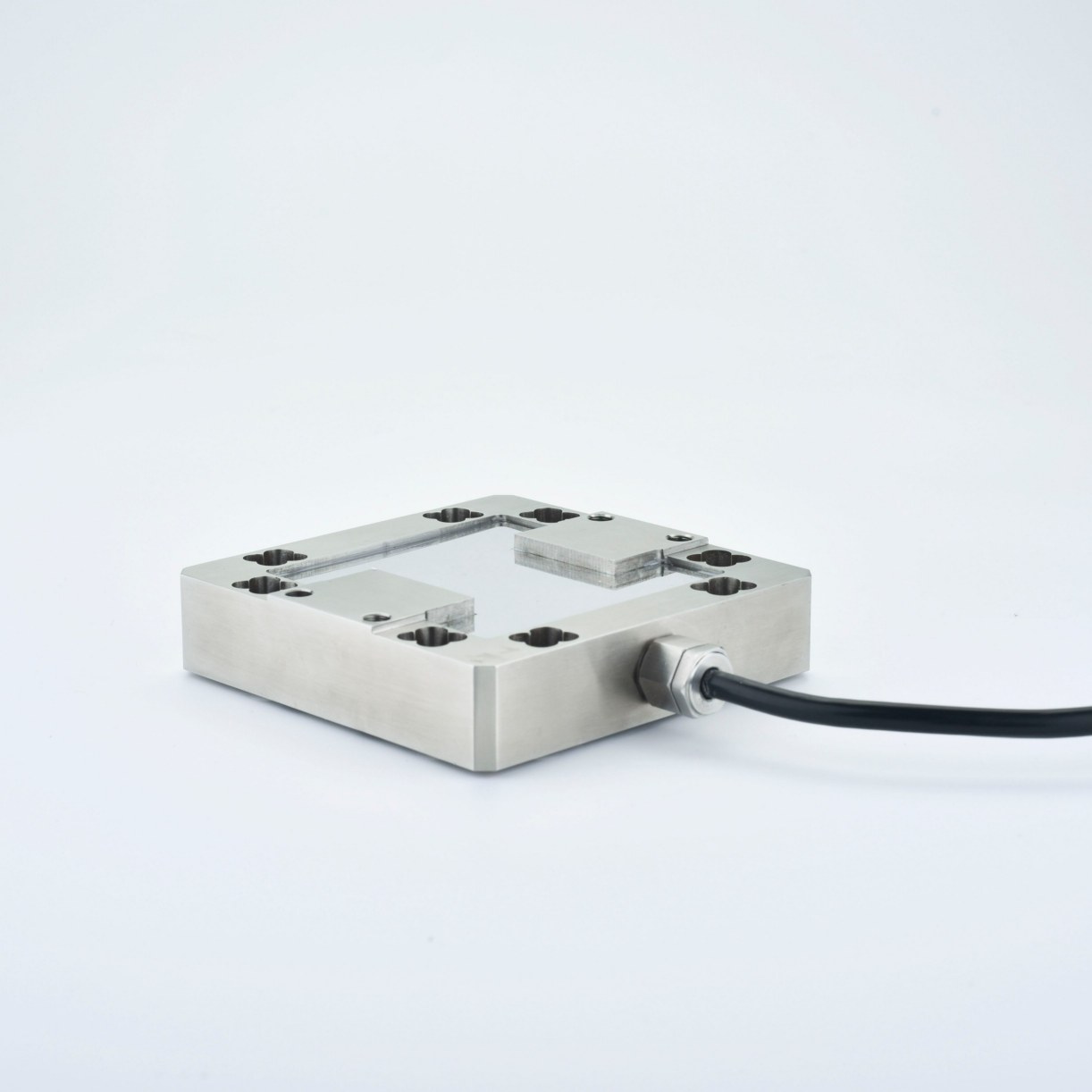

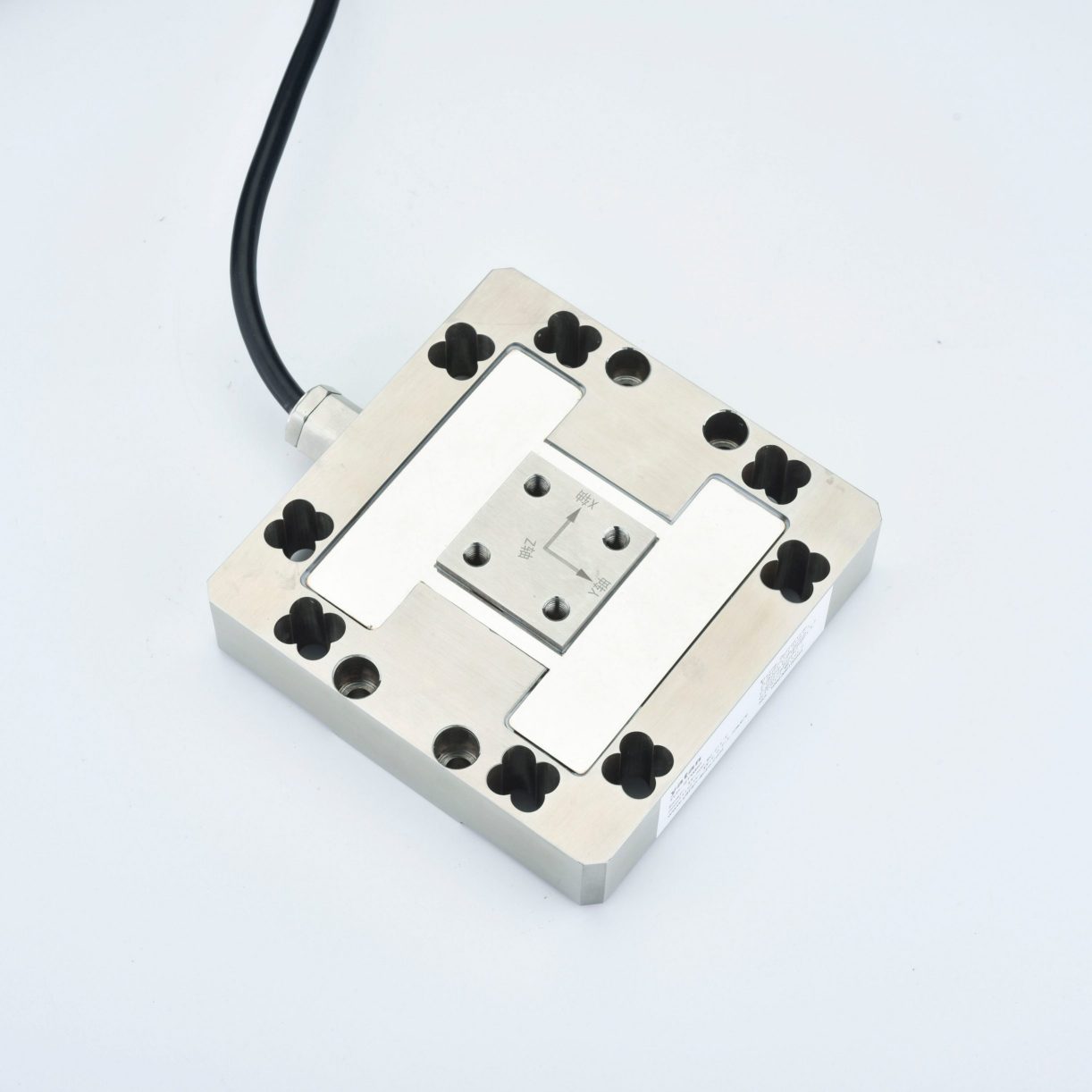

STW60 Industrial 3-Axis Force Sensor(X/Y/Z Multi-Axis Force Measurement)

STW60 Industrial 3-Axis Force Sensor (X/Y/Z Multi-Axis Force Measurement) is a high-precision robotic force sensor designed to simultaneously measure forces along the X, Y, and Z axes. Featuring low cross-axis interference, high stability, and multiple industrial output options, it serves as an ideal robot end-effector force sensor for advanced force-control applications. Installed between the robot arm and end-of-arm tools such as robotic grippers, vacuum cups, and welding tools, the STW60 enables precise force feedback, contact detection, compliant control, constant-force control, and workpiece force analysis. It is widely used in robotic gripping, automated assembly, polishing systems, intelligent manufacturing, and industrial automation applications to improve robotic accuracy, stability, and operational efficiency.

Request a Quote

1. Key Features

Able to measure forces in X/Y/Z directions simultaneously for multi-axis force analysis
Low cross-axis interference ensures high measurement stability
Widely used in robotics, automation systems, and force analysis applications
Various output signal options available
Durable aluminum alloy structure

2. Technical Specifications

General Electrical Data

Measurement Range	X/Y(0–5kg, 0–500kg), Z(0–10kg, 0–1000kg); X/Y(0–300kg, 0–2.5t), Z(0–500kg, 0–4t)
Sensitivity	0.8–1.5 mV/V
Bridge Excitation Voltage	5–12VDC(Recommended: 10 VDC)
Output Signal	mV/V (default), 4–20mA, 0–5V, 1–5V, 0–10V, 0.5–4.5V, RS485 Modbus RTU, CANopen, PNP, NPN

Performance Specifications

Combined Accuracy	≤±0.3% F.S(including non-linearity, hysteresis, and repeatability)
Creep	±0.3%F.S/30 min
Zero Balance	±1%F.S
Temperature Effect on Zero Balance	±0.03% F.S./10°C
Sensitivity Temperature Drift	±0.03% F.S / 10℃
Cross-axis Interference	≤ ±2.5% F.S
Overload pressure	120% F.S.
Operating Temperature Range	-20°C to +65°C

3. Applications

Industrial automation and control systems
Component testing and working condition force analysis
Intelligent robots and multi-axis force feedback control systems
Force monitoring in polishing, grinding, and surface finishing equipment
Other industrial applications

4. Selection Guide

Pressure Sensor Selection Key Points: Confirm the measuring range, match the output signal, ensure media compatibility, select the appropriate mounting interface, and define the accuracy requirements.

5. FAQ (Frequently Asked Questions)

Q1: What is the overload capacity of the STW60 3-Axis Force Sensor?

The STW60 has a 120% F.S safe overload capacity, allowing short-term overload conditions and improving industrial safety.

Q2: Is the STW60 3-Axis Force Sensor suitable for robotic force control systems?

Yes, with low cross-axis interference and high stability, it is ideal for robotic gripping, force feedback control, and intelligent assembly systems.

Q3: What is the measurement accuracy of the STW60 3-Axis Force Sensor?

The STW60 offers a combined accuracy of ≤±0.3% F.S, including non-linearity, hysteresis, and repeatability, suitable for high-precision industrial applications.

Q4: Does the STW60 3-Axis Force Sensor support multiple output signals?

Yes, the STW60 supports various industrial output signals including mV, 4–20mA, 0–10V, RS485 (Modbus RTU), and CANopen for different control systems.

Q5: What industrial applications is the STW60 3-Axis Force Sensor suitable for?

The STW60 3-Axis Force Sensor is widely used in robotic force control, automation production lines, smart manufacturing systems, polishing equipment, and component force analysis, ideal for multi-axis force measurement applications.

6. Related Products

7. Contact Us

📧 Email: sales@yatansensor.com, support@yatansensor.com

💬 WhatsApp:+86 185 1660 2370

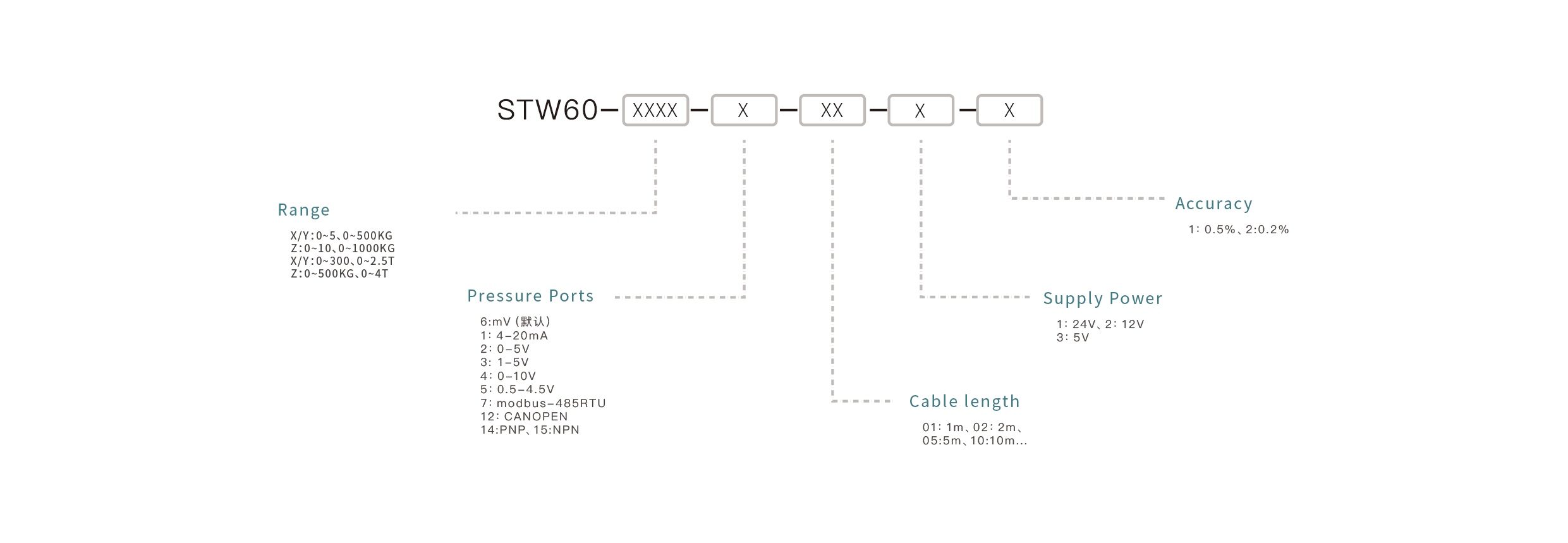

8. Model Selection / Ordering Code

Please specify the full ordering code when requesting a quotation.

        Quantity - Model - Measuring Range - Output Signal - Cable Length - Power Supply - Linearity Accuracy

        Example:
        1 pcs - STW60 - 100N - 4-20mA - 2m - 12V  - 0.2%
