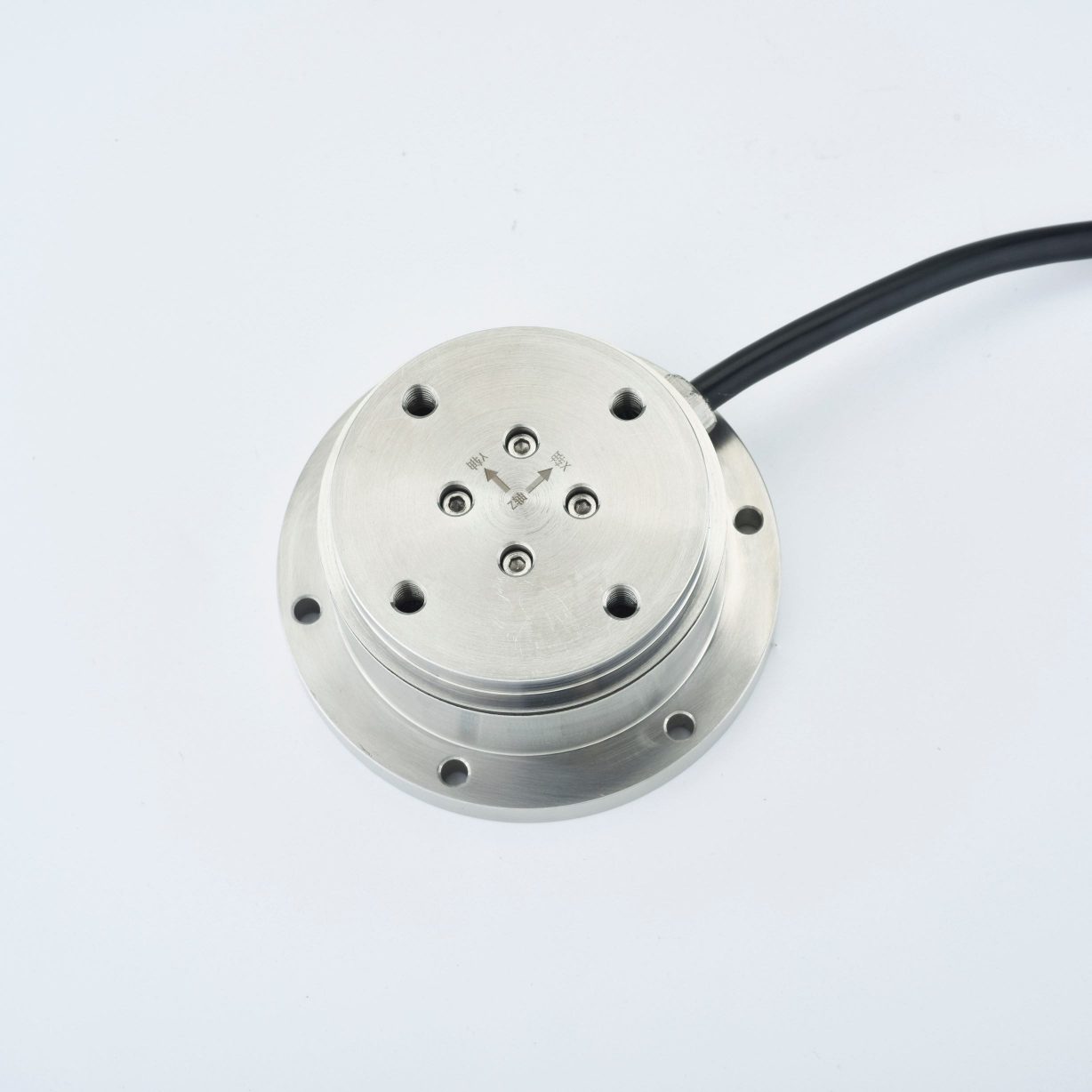

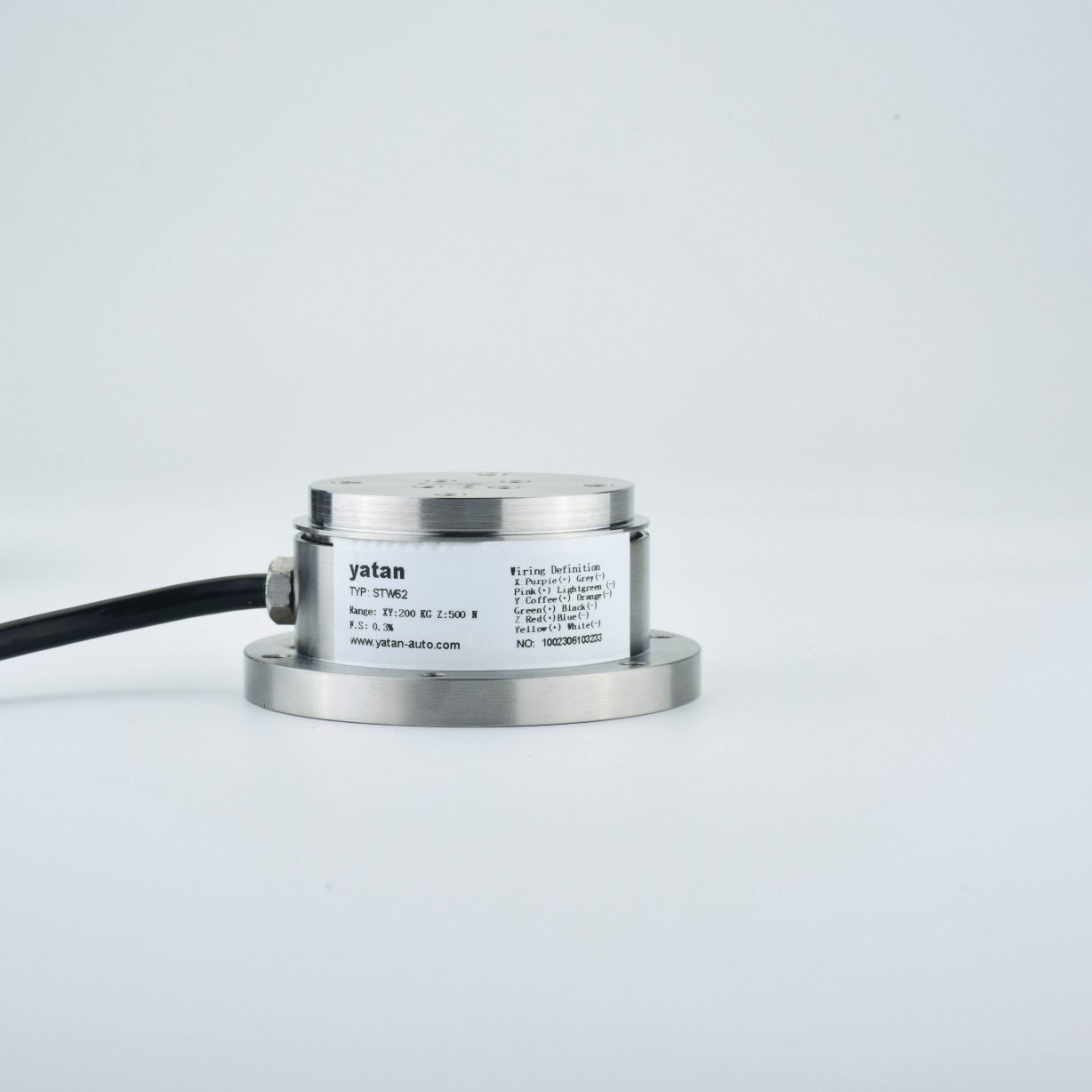

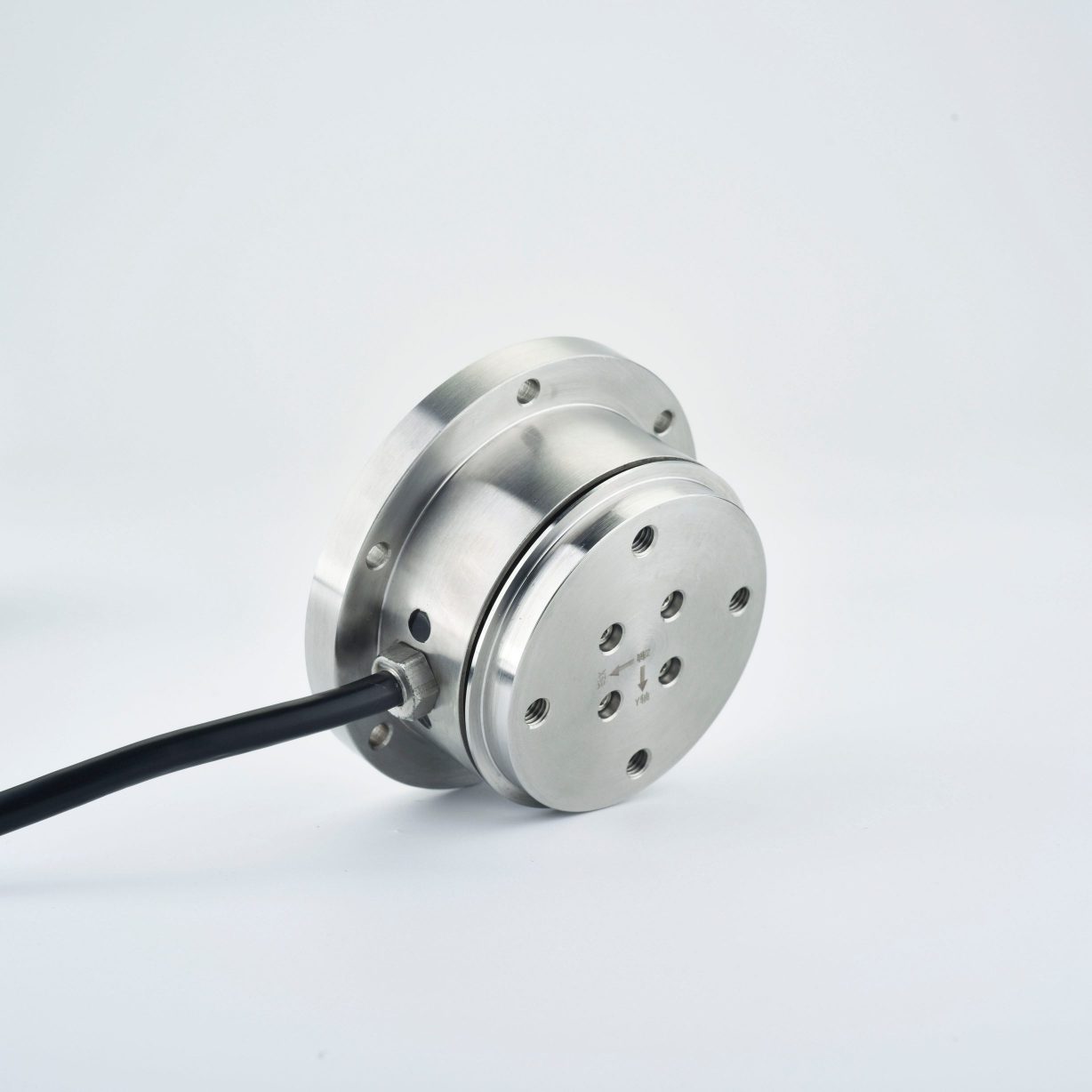

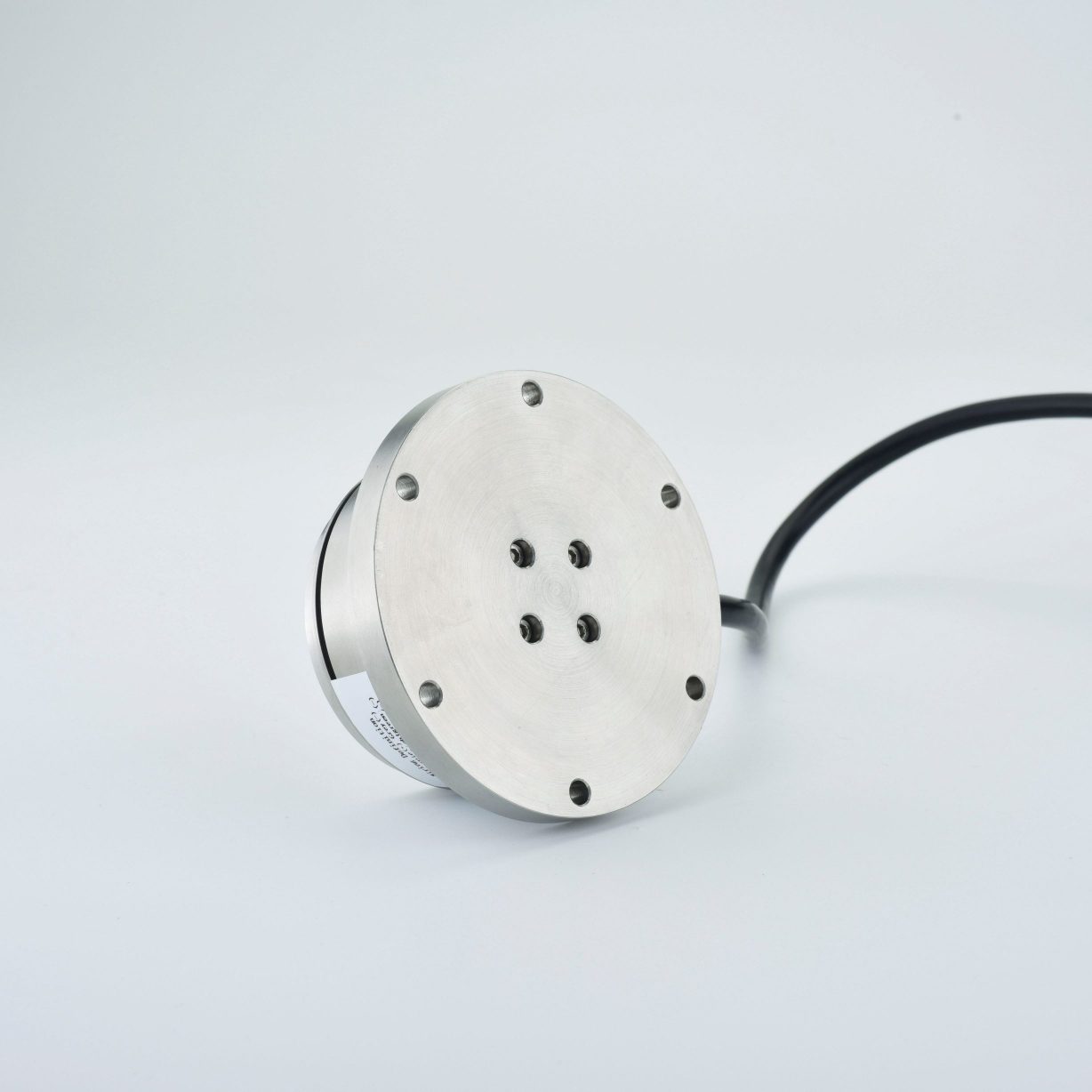

STW62 Multi-Axis Force Sensor(3-Axis Force Measurement)

The STW62 3-axis force sensor is a high-precision multi-axis load cell designed to measure forces simultaneously along the X, Y, and Z directions, making it ideal for complex force monitoring applications. Constructed from durable stainless steel or alloy steel, it offers compact size, excellent stability, and strong resistance to interference. The measuring range covers 0–10N to 0–200N for X/Y axes and 0–20N to 0–400N for the Z axis, with a comprehensive accuracy of ≤±0.3% F.S., ensuring reliable performance in both low and range force measurements. It supports multiple output signals, including mV, 4–20mA, 0–10V, RS485 (Modbus RTU), and CANopen, allowing seamless integration into industrial automation systems. This sensor is widely used in robotic polishing, force feedback control, material testing, and industrial measurement and control applications, making it an ideal solution for precision multi-axis force sensing.

Request a Quote

1. Key Features

High Accuracy Measurement
Compact size and easy installation
Able to measure forces in X/Y/Z directions simultaneously for multi-axis force analysis
High stability and strong anti-interference capability
Low cross-axis interference ensures high measurement stability
Widely used in robotics, automation systems, and force analysis applications
Various output signal options available

2. Technical Specifications

General Electrical Data

Measuring Range	X/Y Axes(0–10 N / 0–200 N),Z Axis(0–20 N / 0–400 N)
Rated Output(Sensitivity)	1.0mV/V
Bridge Excitation Voltage	5–12VDC(Recommended: 10 VDC)
Output Signal	mV/V (default), 4–20mA, 0–5V, 1–5V, 0–10V, 0.5–4.5V, RS485 Modbus RTU, CANopen, PNP, NPN

Performance Specifications

Combined Accuracy	≤±0.3% F.S(including non-linearity, hysteresis, and repeatability)
Creep	±0.3%F.S/30 min
Zero Balance	±1%F.S
Temperature Effect on Zero Balance	±0.03% F.S./10°C
Sensitivity Temperature Drift	±0.03% F.S / 10℃
Cross-axis Interference	≤ ±2.5% F.S
Overload pressure	120% F.S.
Operating Temperature Range	-20°C to +65°C

3. Applications

High-load measurement in limited spaces
Robot joint and drive system testing
Precision Machinery & CNC Machines
Intelligent robots and multi-axis force feedback control systems
Intelligent polishing and automated grinding equipment
Other industrial applications

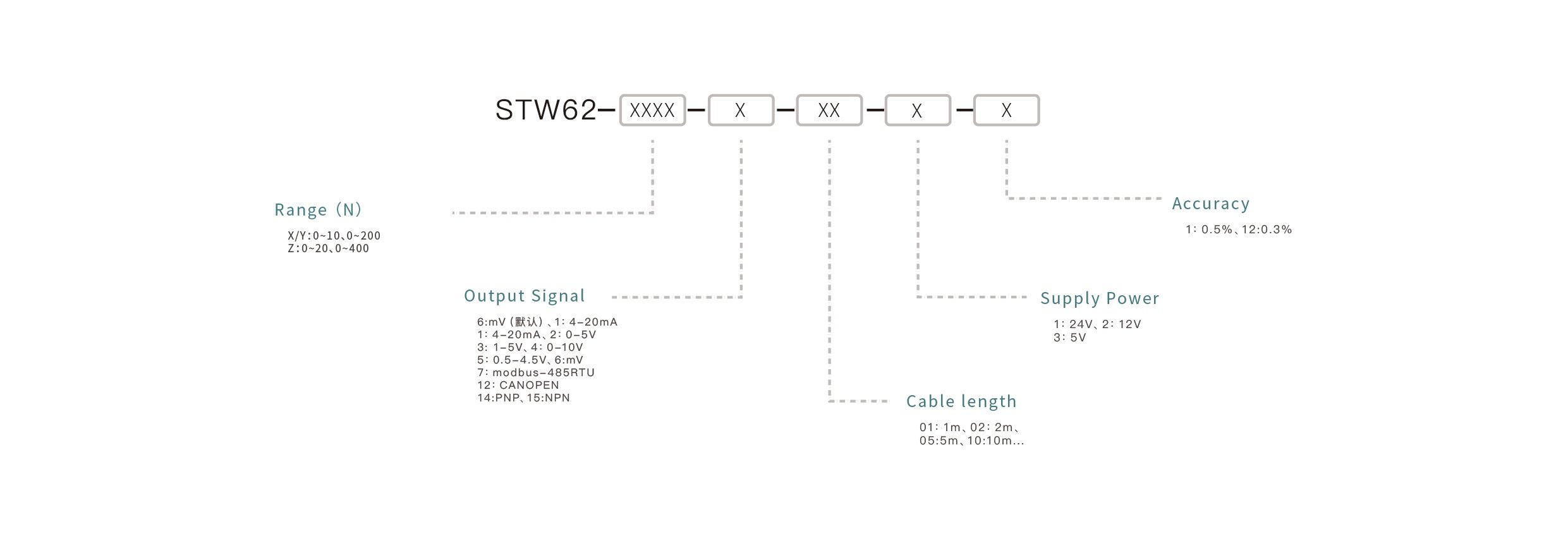

4. Selection Guide

Pressure Sensor Selection Key Points: Confirm the measuring range, match the output signal, ensure media compatibility, select the appropriate mounting interface, and define the accuracy requirements.

5. FAQ (Frequently Asked Questions)

Q1: Can the STW62 3-Axis Force Sensor be customized?

Yes, customization is available for measuring range, output signal, interface, and other specific requirements.

Q2: Does the STW62 3-Axis Force Sensor support industrial communication protocols?

Yes, it supports industrial communication protocols such as RS485 (Modbus RTU) and CANopen for seamless PLC and automation integration.

Q3: What is the operating temperature range of the STW62 3-Axis Force Sensor?

The operating temperature range of the STW62 3-Axis Force Sensor is -20°C to +65°C.

Q4: Is the STW62 3-Axis Force Sensor suitable for compact installations?

Yes, its compact design allows easy integration into space-constrained systems and high-density equipment setups.

Q5: Is the STW62 3-Axis Force Sensor suitable for robotic force control systems?

Yes, the STW62 3-Axis Force Sensor is designed for multi-axis force detection and is ideal for force feedback and control in robotic end-effectors.

Q6: What is the accuracy of the STW62 3-Axis Force Sensor?

The STW62 3-Axis Force Sensor provides a comprehensive accuracy of ≤±0.3% F.S., including non-linearity, hysteresis, and repeatability.

Q7: What output signals does the STW62 3-Axis Force Sensor support?

The STW62 3-Axis Force Sensor supports multiple output signals including mV, 4–20mA, 0–5V, 1–5V, 0–10V, 0.5–4.5V, RS485 (Modbus RTU), CANopen, PNP, and NPN.

Q8: What is the measuring range of the STW62 3-Axis Force Sensor?

The STW62 3-Axis Force Sensor offers a measuring range of 0–10N to 0–200N for X/Y axes and 0–20N to 0–400N for the Z axis.

Q9: What applications is the STW62 3-Axis Force Sensor suitable for?

The STW62 3-Axis Force Sensor is ideal for industrial robot force control, intelligent polishing systems, automated assembly, material testing, and multi-axis force measurement applications.
