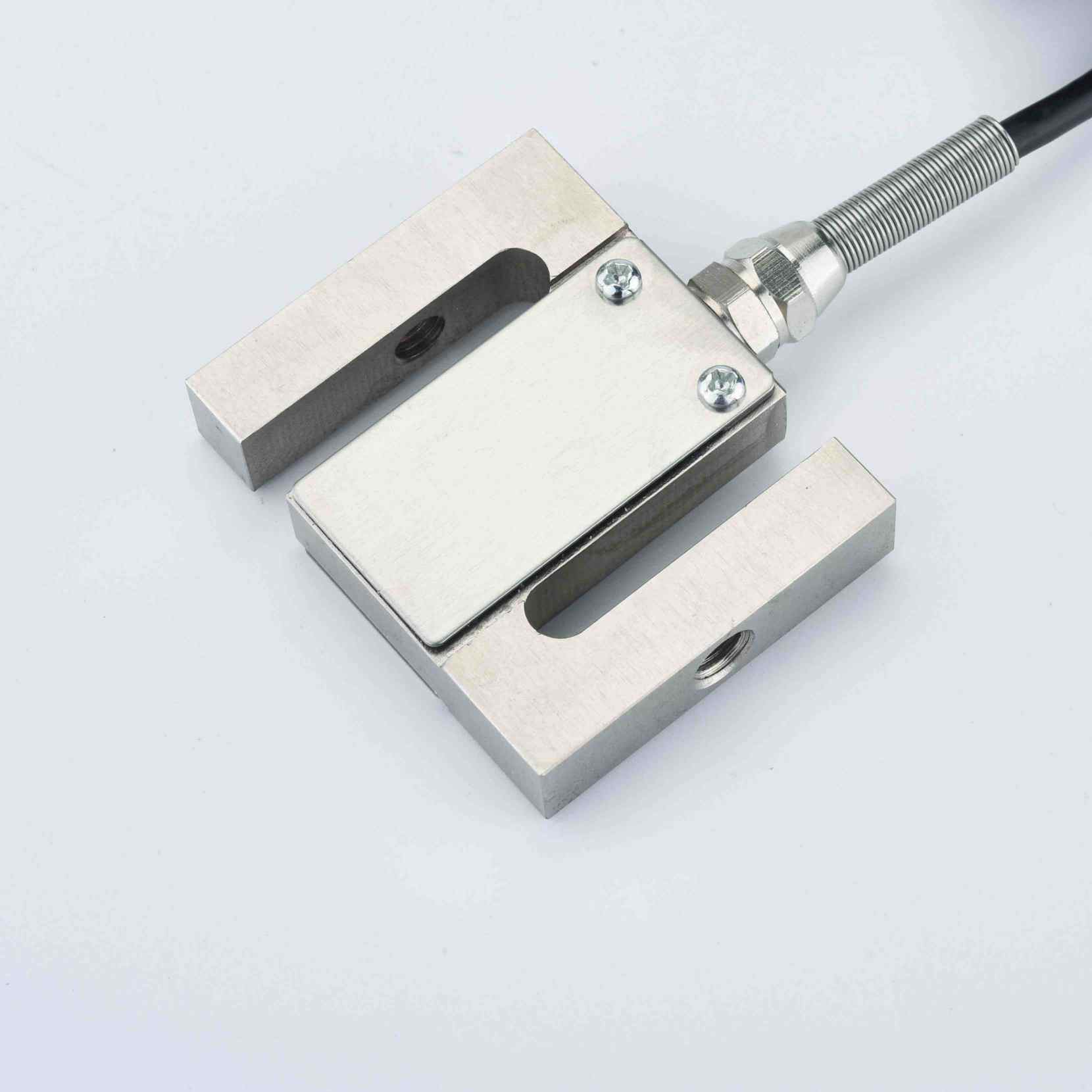

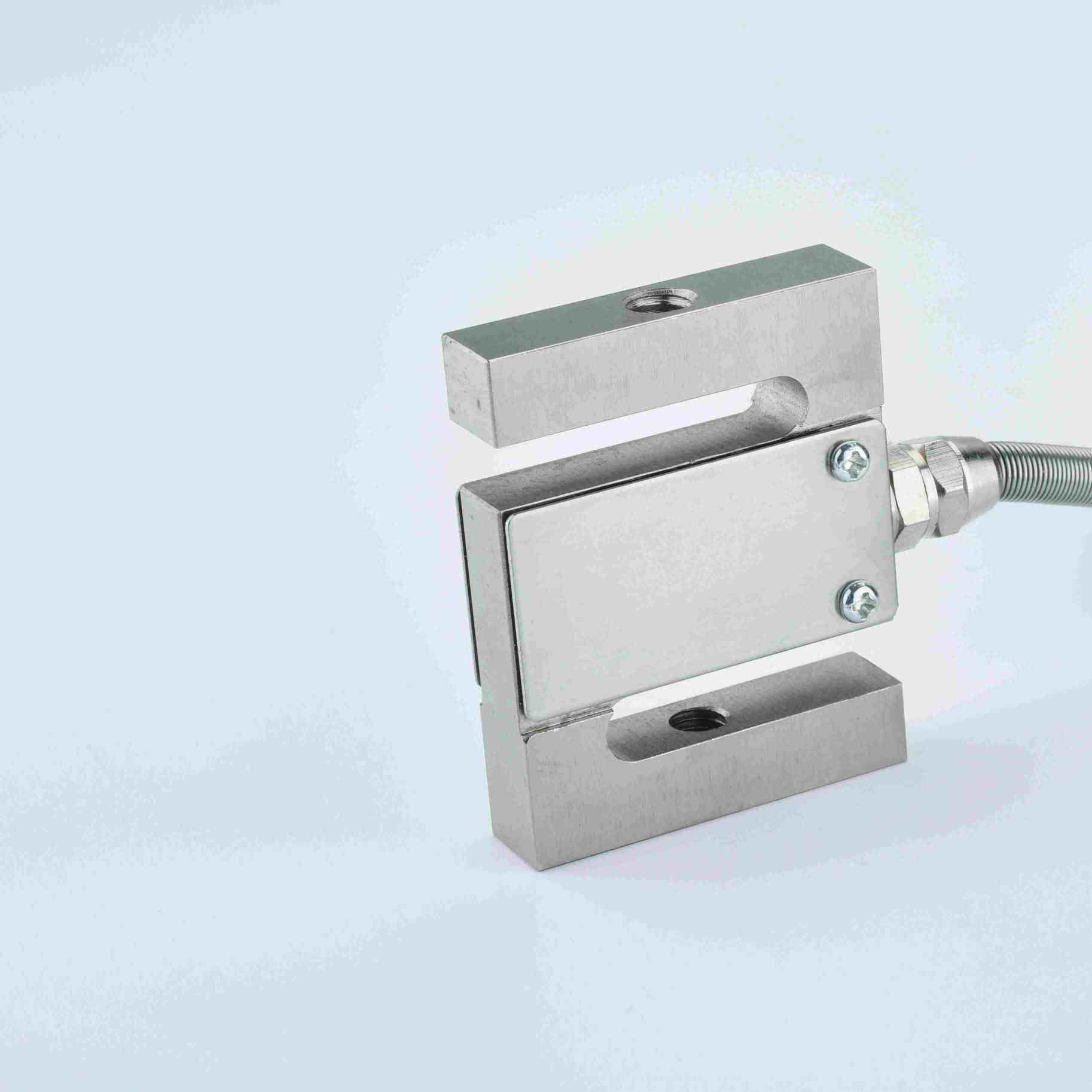

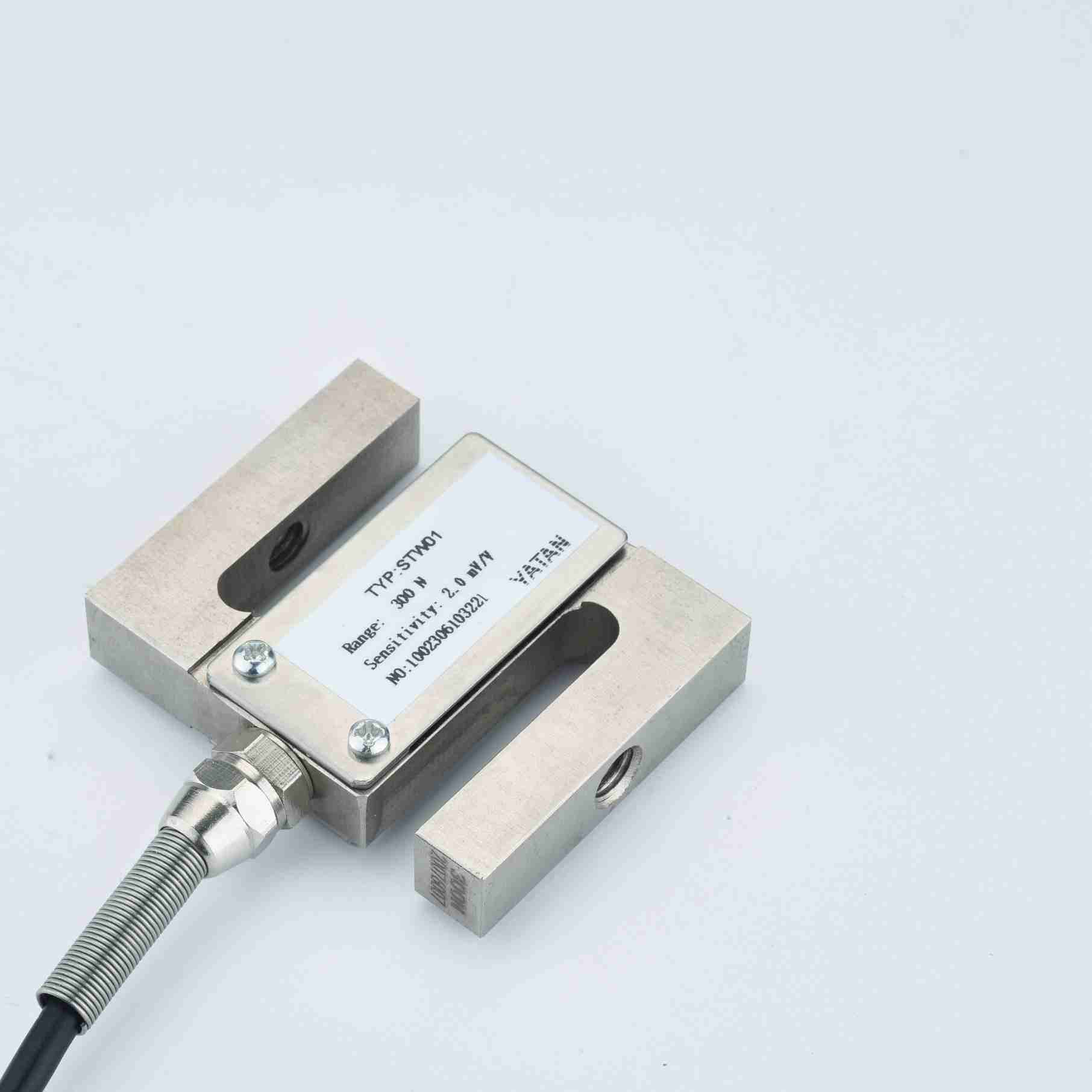

STW01 Miniature Tension Compression Load Cell

The STW01 Miniature Tension and Compression Load Cell adopts high-stability strain gauge technology, featuring high accuracy, bidirectional force measurement, compact structure, and easy installation. It is designed for both tension and compression force measurement applications. With measuring ranges from 50N to 200KN, the sensor is widely used in batching scales, crane scales, packaging machines, electromechanical weighing systems, material testing machines, and industrial automation equipment. The STW01 supports multiple output options including mV, 4-20mA, 0-10V, RS485 Modbus RTU, CANOPEN, and PNP/NPN signals, making it compatible with various industrial control systems. Constructed with alloy steel or stainless steel housing, it offers excellent overload resistance, long-term stability, and reliable environmental performance, making it ideal for industrial weighing, intelligent manufacturing, automation systems, and force measurement applications.

1. Key Features

2. Technical Specifications

General Electrical Data

Range 50N to 500N, 1KN to 200KN (all standard ranges available between 1KN and 200KN)
Rated Output 2.0mV/V
Output Signal mV(default), 4-20mA, 0-5V, 1-5V, 0-10V, 0.5-4.5V, Modbus RS485 RTU, CANOPEN, PNP, NPN, 0-±5V, 0-±10V
Supply Voltage 12 VDC / 24 VDC

Performance Specifications

Combined Accuracy 0.5%F.S, 0.2%F.S, 0.1%F.S, 0.05%F.S, 0.02%F.S(including non-linearity, hysteresis, and repeatability)
Creep ±0.02%F.S/30min
Zero Balance ±1%F.S
Temperature Effect on Zero ±0.02%F.S/10°C
Temperature Effect on Output ±0.02%F.S/10°C
Safe Overload 150%F.S
Operating Temperature Range -20°C to +65°C

3. Applications

4. Selection Guide

Pressure Sensor Selection Key Points: Confirm the measuring range, match the output signal, ensure media compatibility, select the appropriate mounting interface, and define the accuracy requirements.

5. FAQ (Frequently Asked Questions)

Q1: Can the STW01 Miniature Tension Compression Load Cell be used in material testing machines?

Yes. The STW01 Miniature Tension Compression Load Cell is widely used in tensile testing machines, compression testing systems, and force measurement applications requiring high accuracy.

Q2: How do I choose the correct range for the STW01 Miniature Tension Compression Load Cell?

It is recommended to select the load cell range based on the maximum working force, installation conditions, required accuracy, and overload protection requirements to ensure stable performance and long service life.

Q3: What materials are available for the STW01 Miniature Tension Compression Load Cell?

The STW01 Miniature Tension Compression Load Cell is available in alloy steel and stainless steel versions, providing excellent overload resistance and durability for industrial environments.

Q4: Is the STW01 Miniature Tension Compression Load Cell suitable for automation equipment?

Yes. With its compact size, fast response, and high stability, the STW01 Miniature Tension Compression Load Cell is ideal for automated production lines and intelligent control systems.

Q5: Can the STW01 Miniature Tension Compression Load Cell measure both tension and compression?

Yes. The STW01 Miniature Tension Compression Load Cell is designed for bidirectional force measurement, allowing both tension and compression force detection in one sensor.

Q6: What is the measuring range of the STW01 Miniature Tension Compression Load Cell?

The measuring range of the STW01 Miniature Tension Compression Load Cell covers 50N to 200KN, suitable for both small force measurement and heavy-load industrial applications.

Q7: What output signals does the STW01 Miniature Tension Compression Load Cell support?

The STW01 Miniature Tension Compression Load Cell supports multiple output options including mV, 4-20mA, 0-5V, 0-10V, RS485 Modbus RTU, CANOPEN, PNP, and NPN signals for compatibility with PLCs and industrial control systems.

Q8: What industries is the STW01 Miniature Tension Compression Load Cell suitable for?

The STW01 Miniature Tension Compression Load Cell is widely used in industrial automation, packaging equipment, batching systems, crane scales, material testing machines, robotics, and smart manufacturing applications.

6. Related Products

7. Contact Us

📧 Email: sales@yatansensor.com,   support@yatansensor.com

💬 WhatsApp:+86 185 1660 2370

8. Model Selection / Ordering Code

Please specify the full ordering code when requesting a quotation.

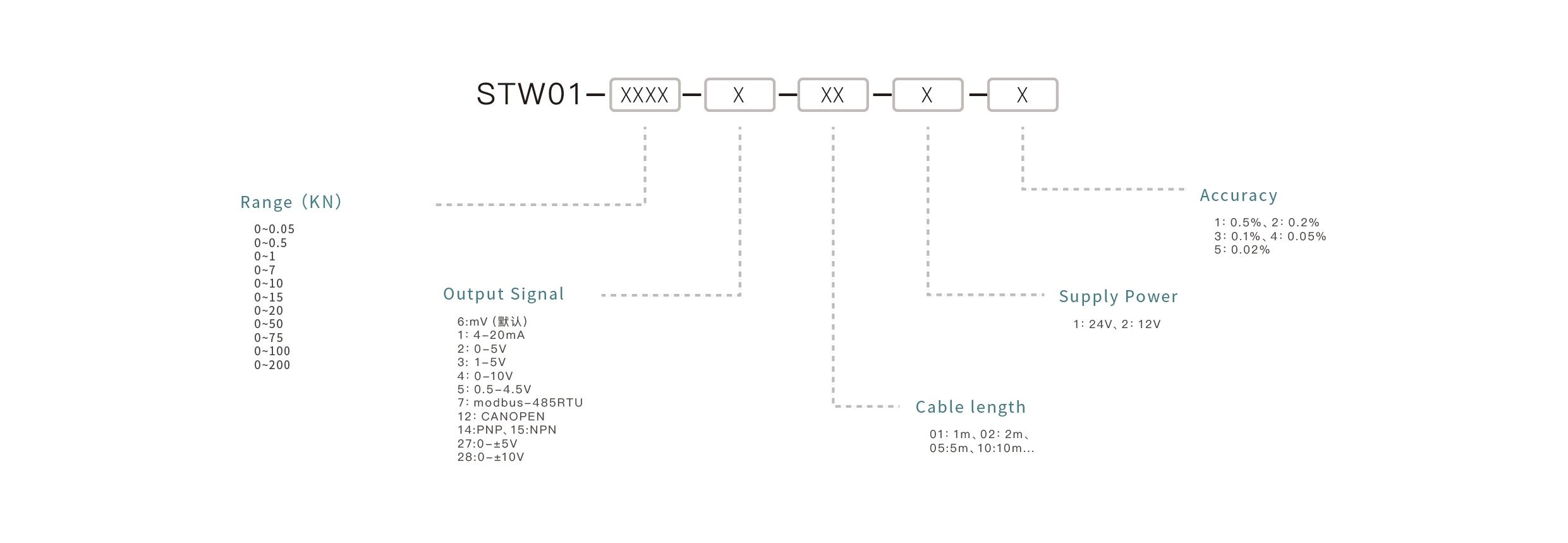

        Model - Measuring Range - Output Signal - Cable Length - Power Supply - Linearity Accuracy

        Example:
        STW01 - 100N - 4-20mA - 2m - 12V  - 0.2%
