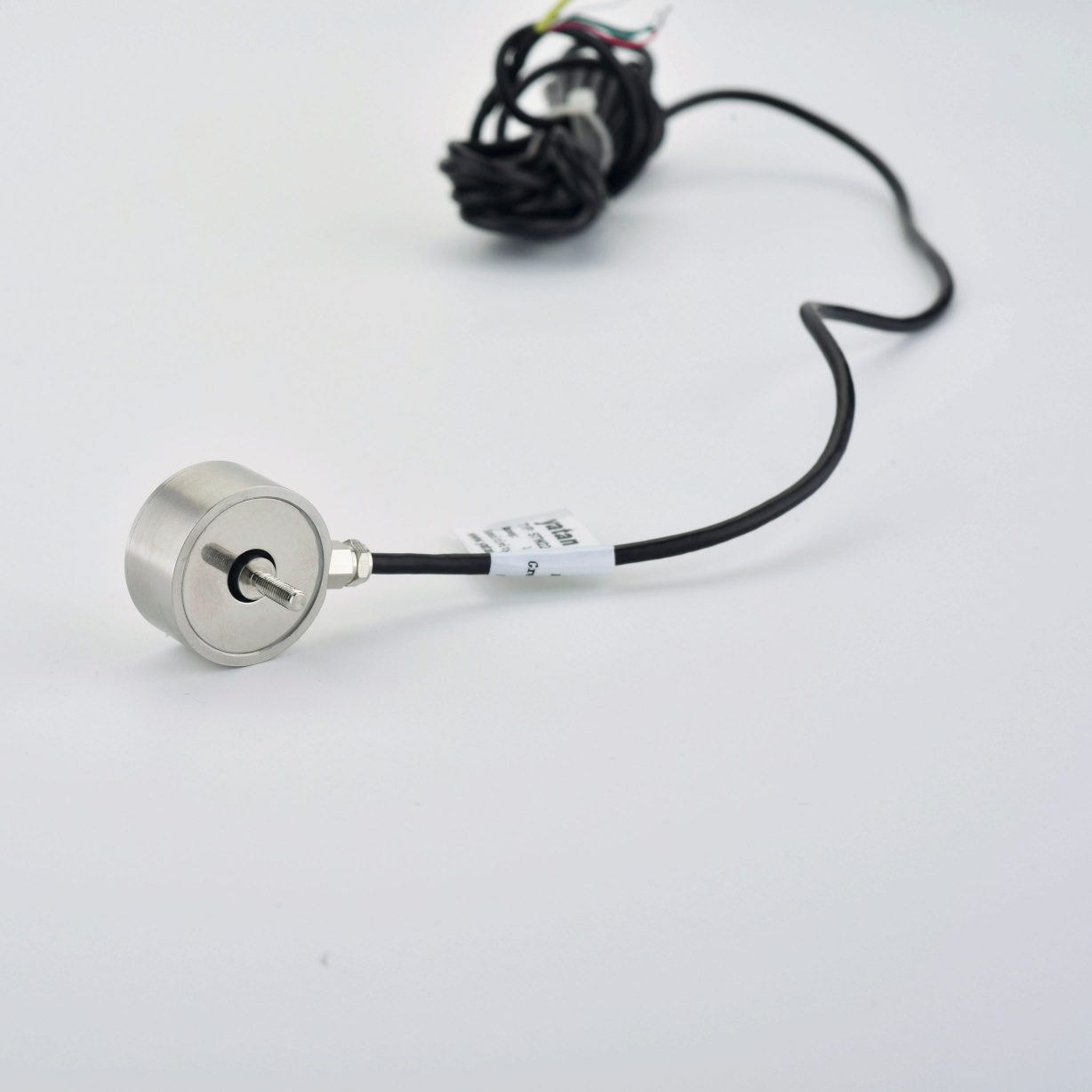

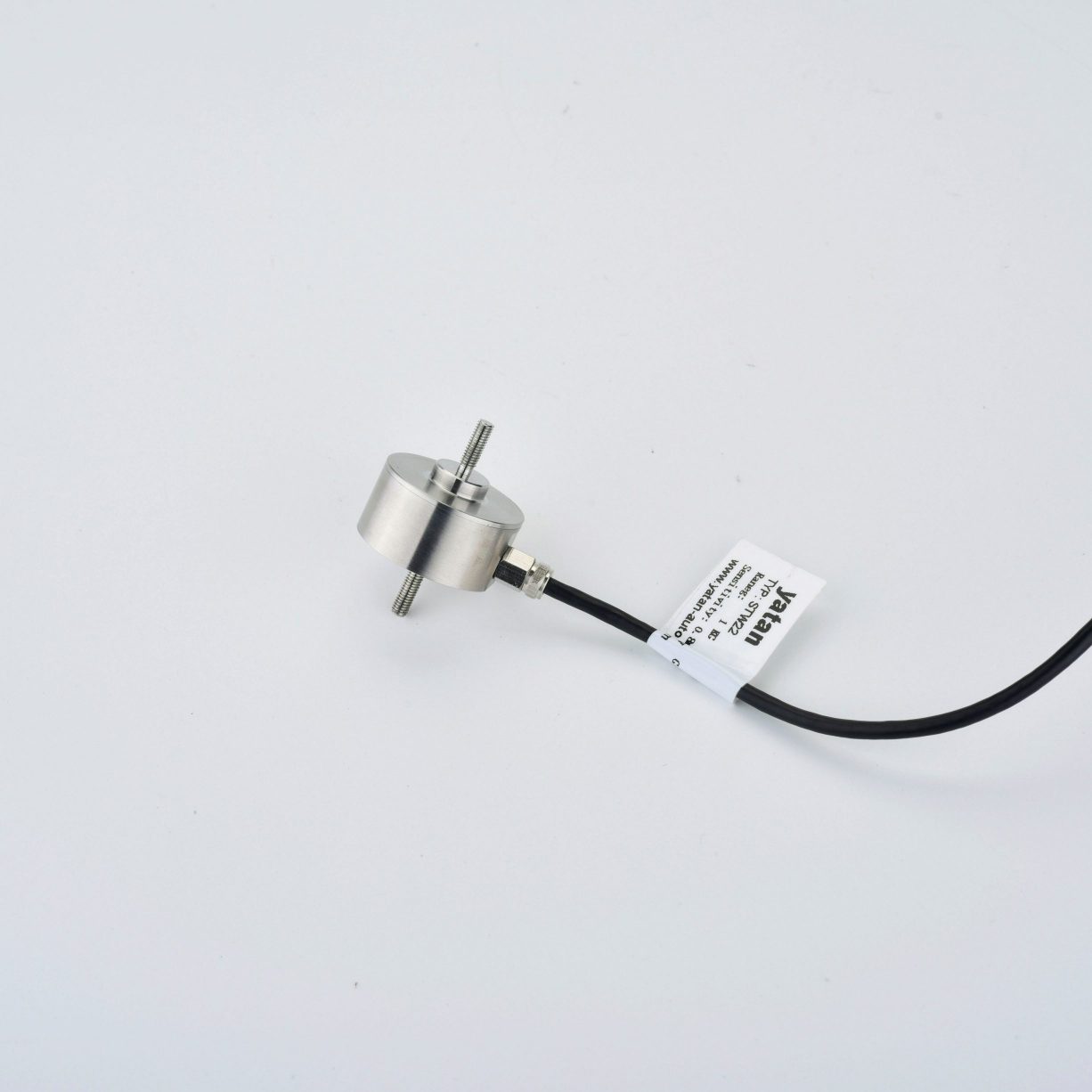

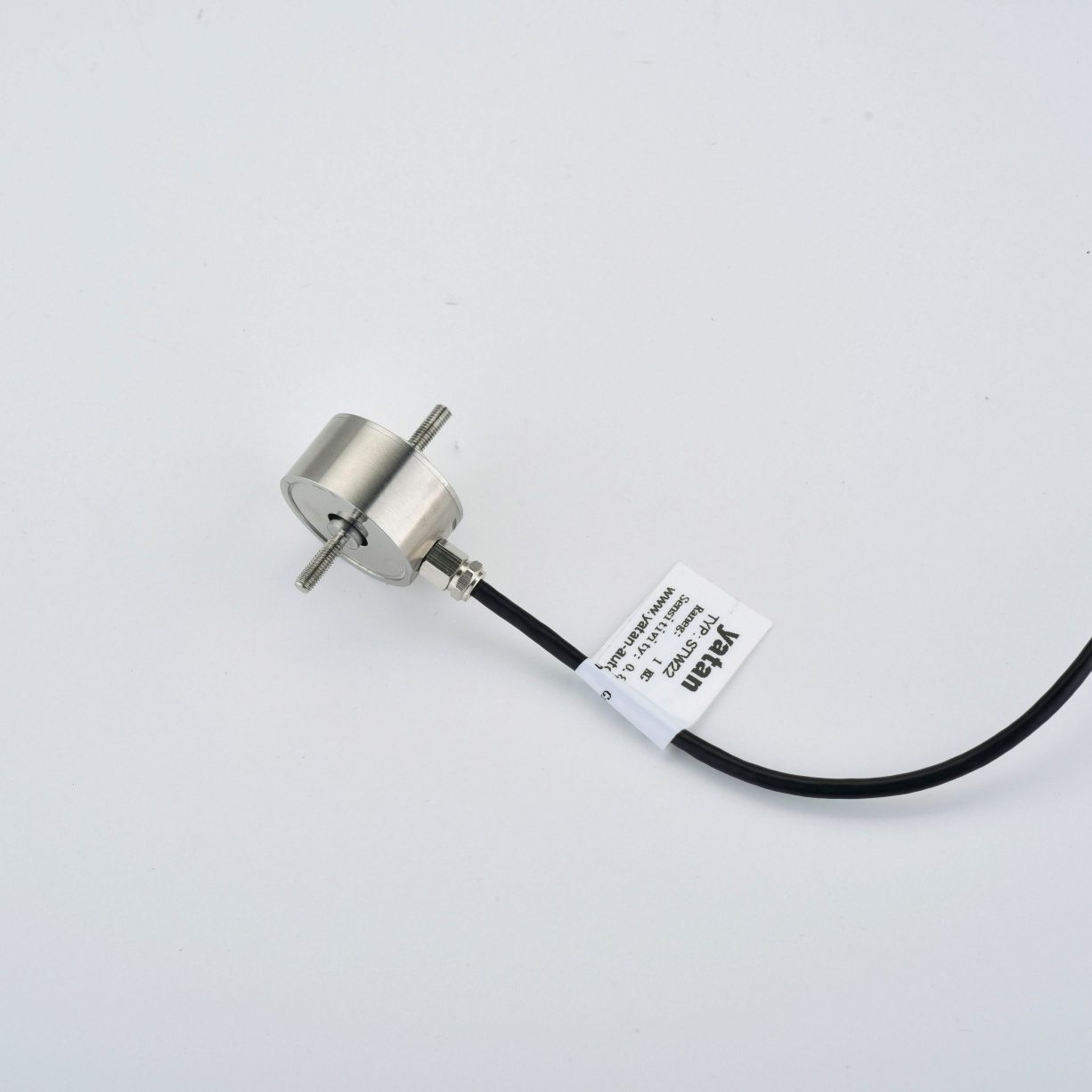

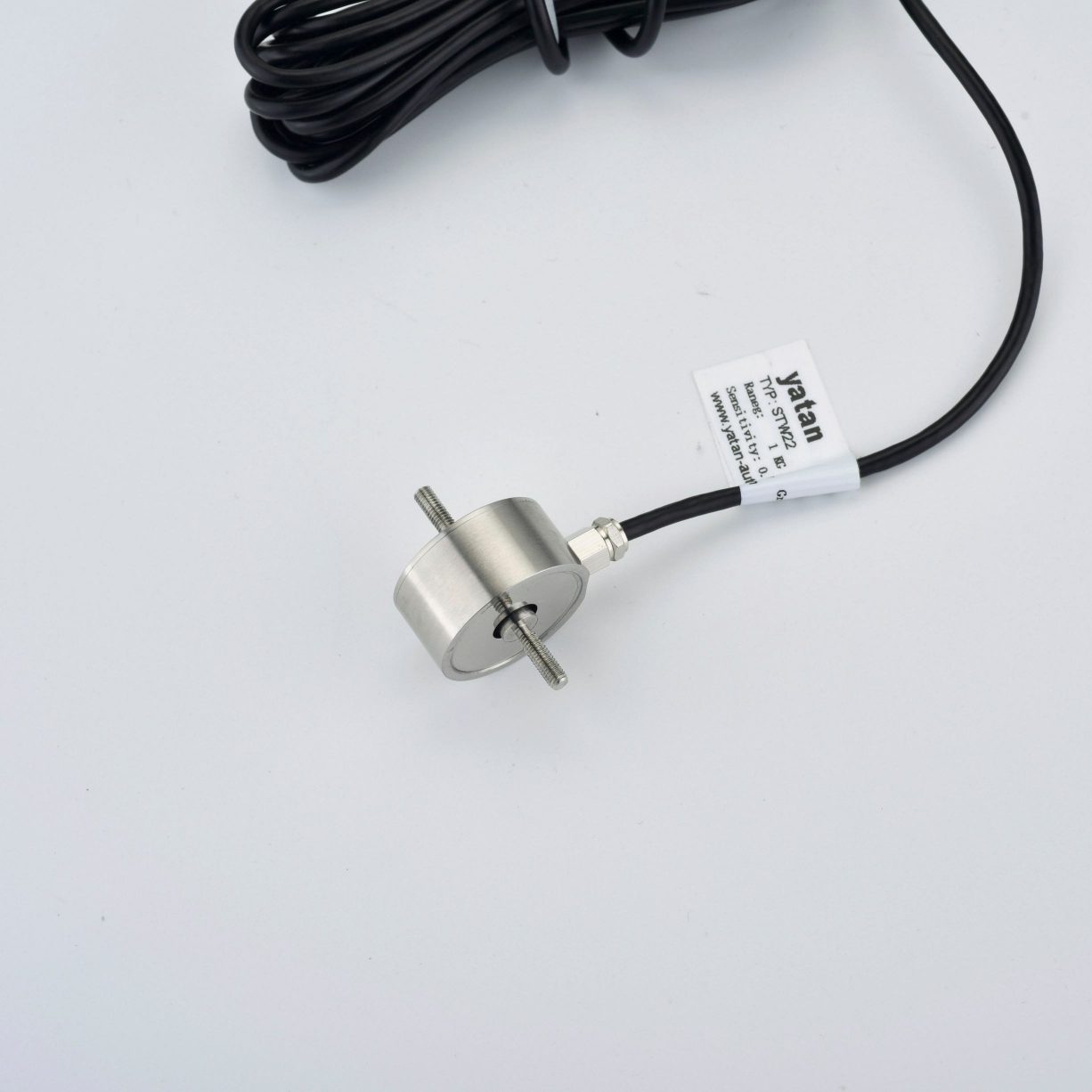

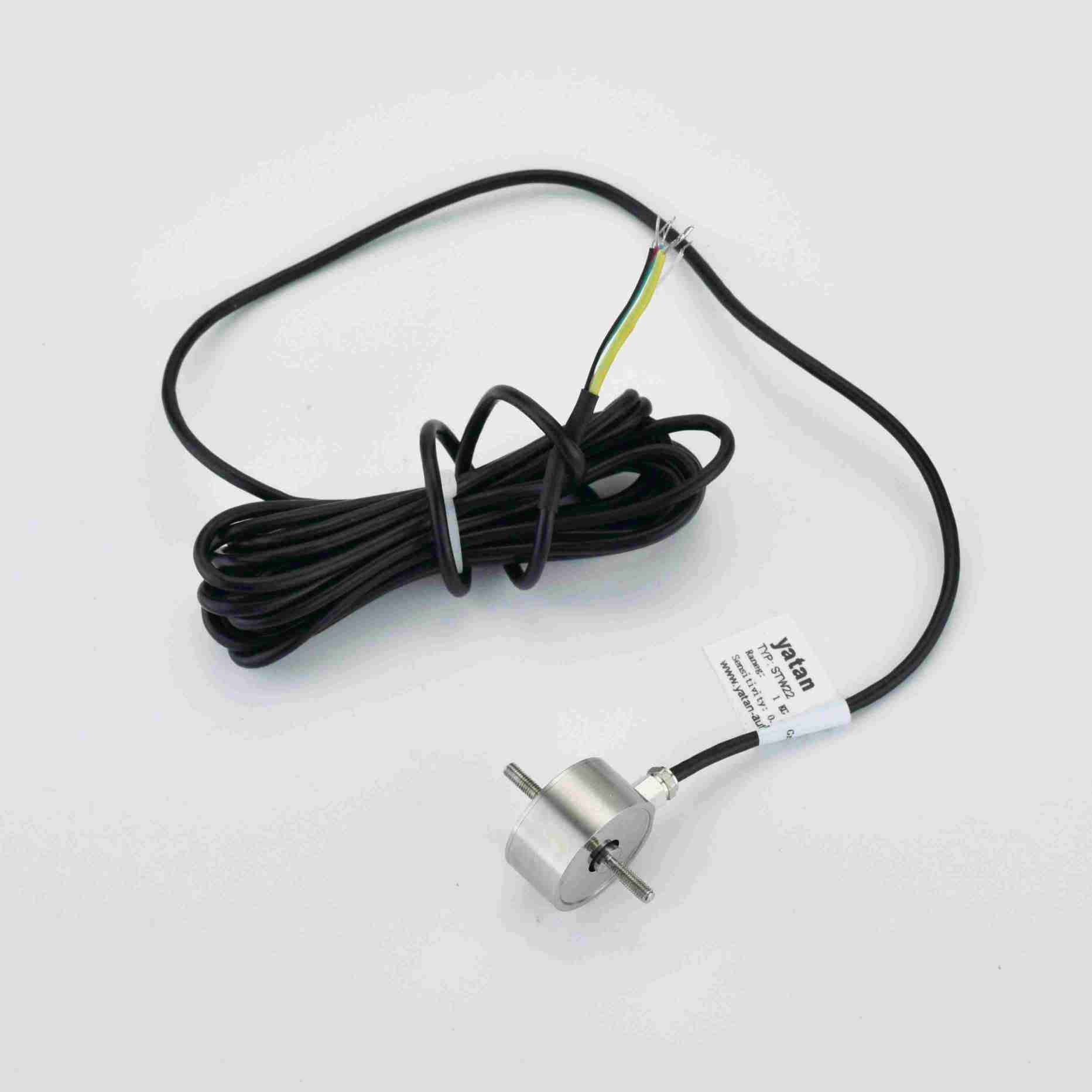

STW22 Miniature Tension Compression Load Cell

The STW22 Miniature Tension Compression Load Cell is a high-precision dual-purpose force sensor designed for both tension and compression measurement. Featuring compact size, excellent output symmetry, and easy installation, it is widely used in insertion force testers, laminating machines, keyboard button feel testing equipment, and industrial automation systems. The measuring range covers from 0~5N to 0~5KN, meeting precise force measurement requirements from micro-force to medium-load applications. The STW22 supports multiple output options including mV, 4-20mA, 0-10V, Modbus RS485, and CANOPEN, making it easy to integrate with PLCs, industrial control systems, and data acquisition equipment. Constructed with alloy steel or stainless steel housing, the sensor offers excellent stability, overload resistance, and long-term reliability. It is ideal for industrial force measurement, automation control, equipment testing, and precision force sensing applications.

1. Key Features

2. Technical Specifications

General Electrical Data

Measuring Range 0~5N, 0~10N, 0~20N, 0~100N, 0~500N, 0~1kN, 0~5kN (all capacities available between 0~5N and 0~5kN)
Sensitivity 1.5mV/V
Bridge Excitation Voltage 5–12VDC(Recommended: 10 VDC)
Output Signal mV(default), 4-20mA, 0-5V, 1-5V, 0-10V, 0.5-4.5V, Modbus RS485 RTU, CANOPEN, PNP, NPN, 0-±5V, 0-±10V

Performance Specifications

Comprehensive Accuracy ±0.5%F.S, ±0.3%F.S
Creep ±0.3%F.S/30 min
Zero Balance ±2% F.S.
Temperature Effect on Zero Balance ±0.03% F.S./10°C
Temperature Effect on Output ±0.03% F.S./10°C
Overload pressure 120% F.S.
Operating Temperature Range -20°C to +65°C

3. Applications

4. Selection Guide

Pressure Sensor Selection Key Points: Confirm the measuring range, match the output signal, ensure media compatibility, select the appropriate mounting interface, and define the accuracy requirements.

5. FAQ (Frequently Asked Questions)

Q1: Is the STW22 Miniature Tension Compression Load Cell suitable for automation equipment?

Yes. With its compact size, fast response, and stable output, the STW22 is ideal for automated assembly equipment, online inspection systems, and smart manufacturing applications.

Q2: Can the STW22 Miniature Tension Compression Load Cell be customized?

Yes. Shanghai Yatan provides customization services for the STW22 Miniature Tension Compression Load Cell, including capacity range, output signal, mounting method, and special application requirements for various industrial projects.

Q3: What materials are used in the STW22 Miniature Tension Compression Load Cell?

The STW22 is available in alloy steel or stainless steel construction, providing high mechanical strength, corrosion resistance, and long-term durability for industrial environments.

Q4: What accuracy does the STW22 Miniature Tension Compression Load Cell provide?

The STW22 Miniature Tension Compression Load Cell provides comprehensive accuracy options of ±0.5% F.S and ±0.3% F.S, offering excellent repeatability and long-term stability for precision industrial force measurement.

Q5: Can the STW22 Miniature Tension Compression Load Cell measure both tension and compression?

Yes. The STW22 features a dual-purpose tension and compression design with excellent output symmetry, making it suitable for bidirectional force measurement applications.

Q6: What is the measuring range of the STW22 Miniature Tension Compression Load Cell?

The STW22 Miniature Tension Compression Load Cell offers capacities from 0~5N to 0~5kN, with custom capacities available between 0~5N and 0~5kN to meet both micro-force and medium-load measurement requirements.

Q7: What output signals are available for the STW22 Miniature Tension Compression Load Cell?

The STW22 Miniature Tension Compression Load Cell supports multiple output options including mV, 4-20mA, 0-5V, 1-5V, 0-10V, ±10V, 0.5-4.5V, Modbus RS485, CANOPEN, PNP, and NPN for easy integration with PLCs and industrial control systems.

Q8: What industries is the STW22 Miniature Tension Compression Load Cell suitable for?

The STW22 Miniature Tension Compression Load Cell is widely used in industrial automation, insertion force testing, keyboard button feel testing, laminating equipment, robotic force control systems, medical device testing, and precision force measurement applications where compact size and high accuracy are required.

6. Related Products

7. Contact Us

📧 Email: sales@yatansensor.com,   support@yatansensor.com

💬 WhatsApp:+86 185 1660 2370

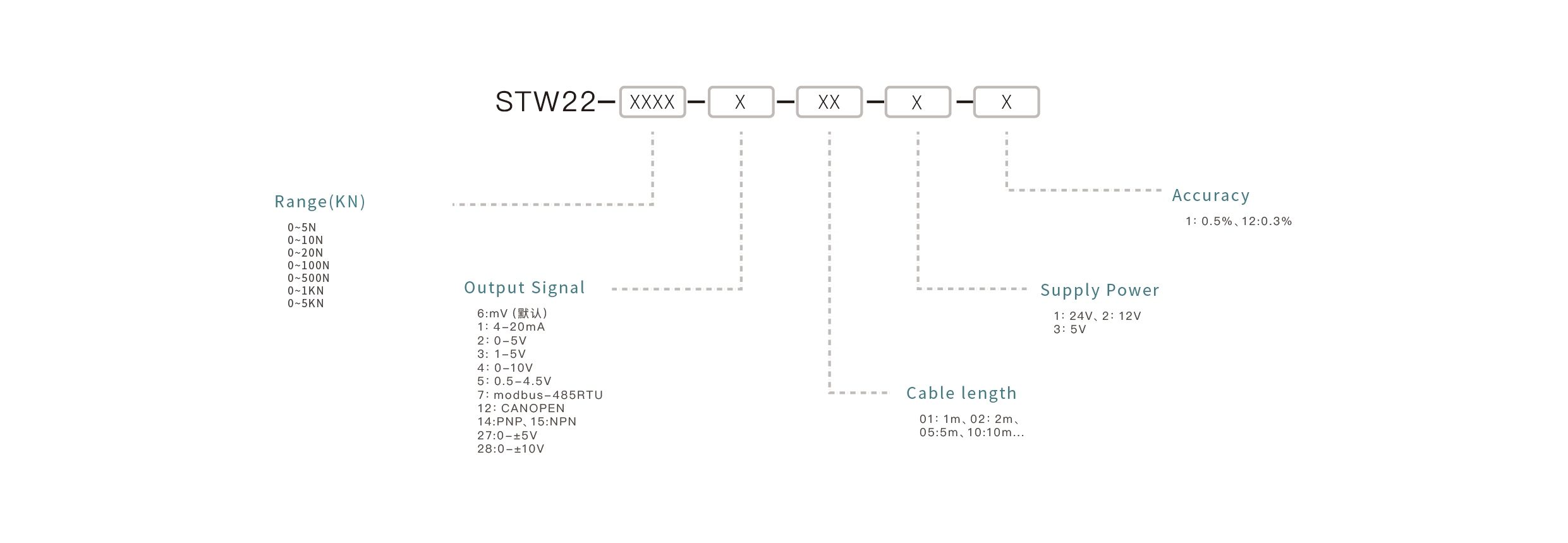

8. Model Selection / Ordering Code

Please specify the full ordering code when requesting a quotation.

        Model - Measuring Range - Output Signal - Cable Length - Power Supply - Linearity Accuracy

        Example:
        STW22 - 100N - 4-20mA - 2m - 12V  - 0.2%
