Q1: What applications is the STD01 Temperature Sensor suitable for?
The STD01 Temperature Sensor is ideal for hydraulic systems, pneumatic systems, industrial automation, and process temperature monitoring, especially in environments requiring high stability and vibration resistance.
Q2: What output signals does the STD01 Temperature Sensor support?
The STD01 Temperature Sensor supports multiple outputs including 4-20mA, 0.5-4.5V, 1-5V, and PT100 resistance signals, ensuring compatibility with PLC and DCS systems.
Q3: How accurate is the STD01 Temperature Sensor for industrial measurement?
The STD01 Temperature Sensor offers high accuracy up to ±0.04% F.S with excellent long-term stability, making it suitable for high-precision industrial temperature monitoring applications.
Q4: Can the STD01 Temperature Sensor be used in high-pressure environments?
Yes, the STD01 Temperature Sensor can withstand pressures up to 25MPa, making it suitable for demanding applications such as hydraulic systems and high-pressure gas or liquid measurement.
Q5: What installation options are available for the STD01 Temperature Sensor?
The STD01 Temperature Sensor provides multiple thread connections such as M20×1.5, G1/4, and G1/2, and also supports customized configurations for specific installation requirements.
Q6: Is the STD01 Temperature Sensor reliable in harsh industrial environments?

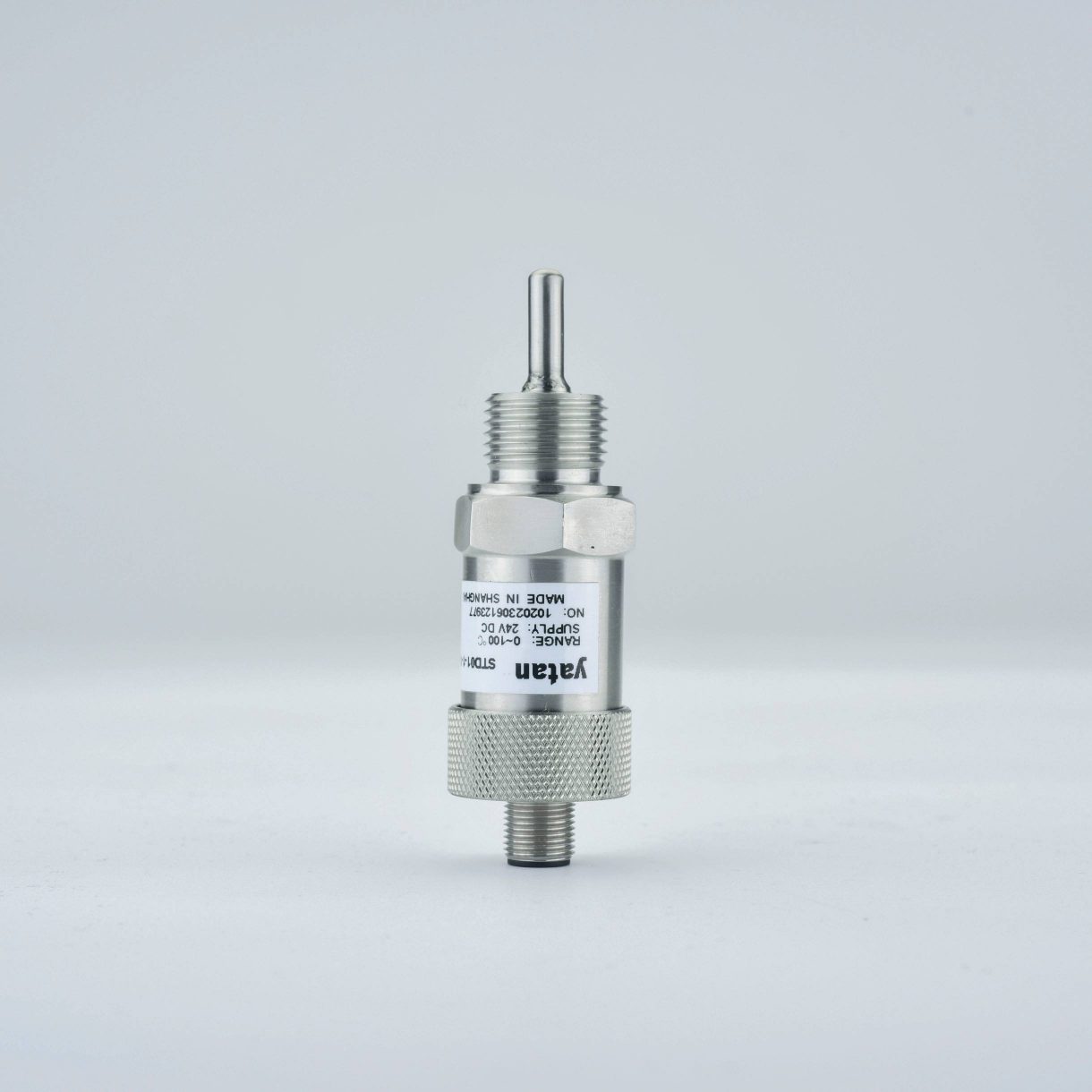

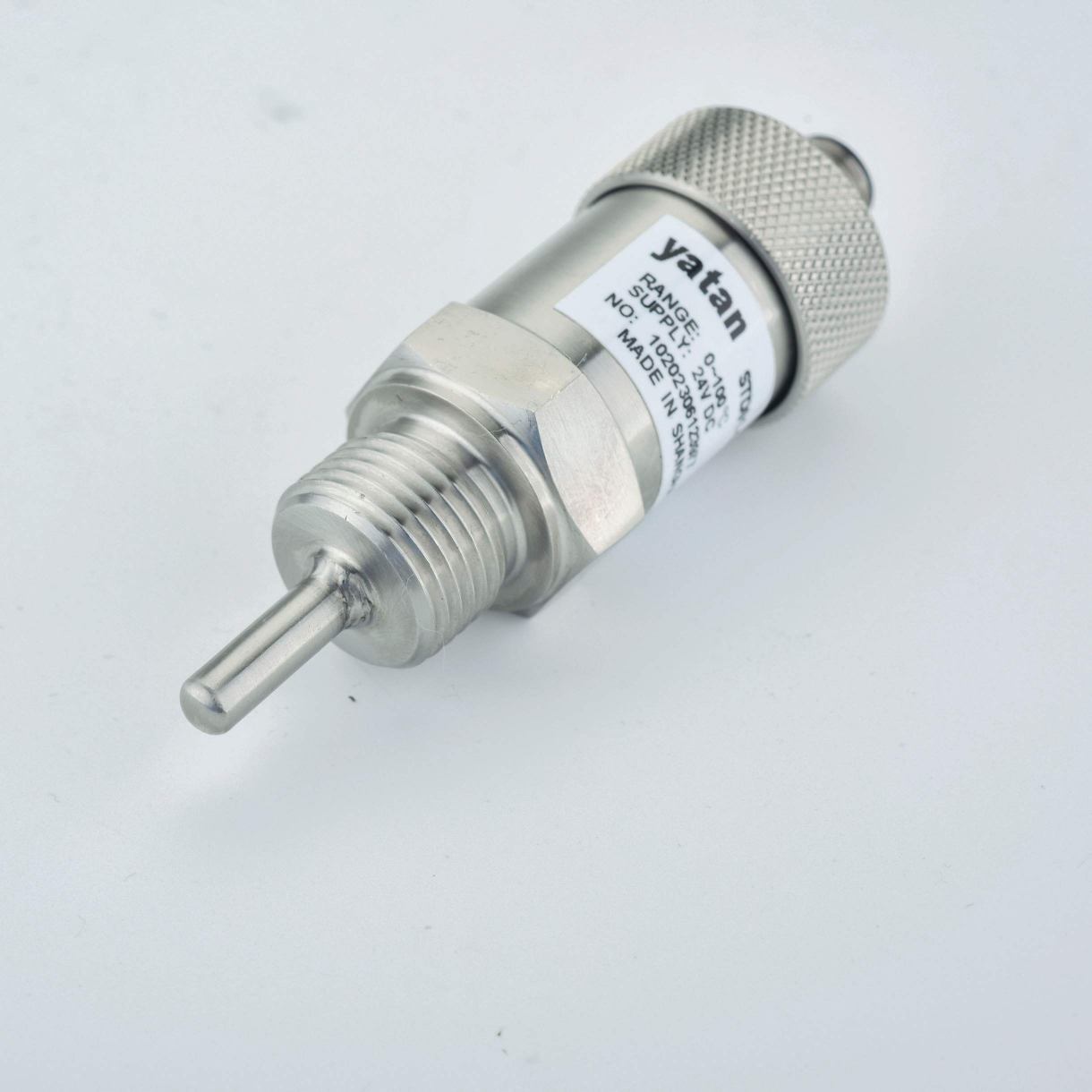

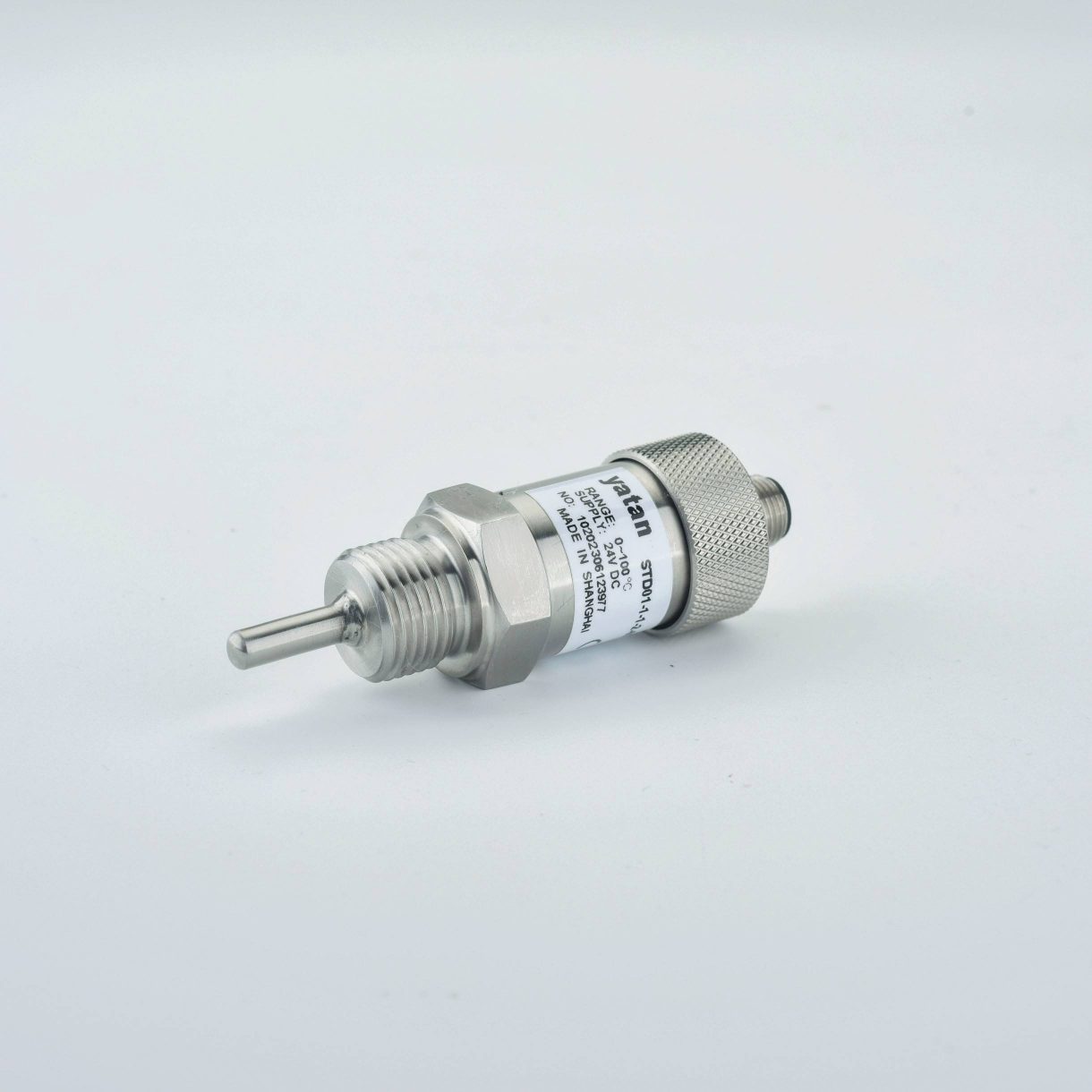

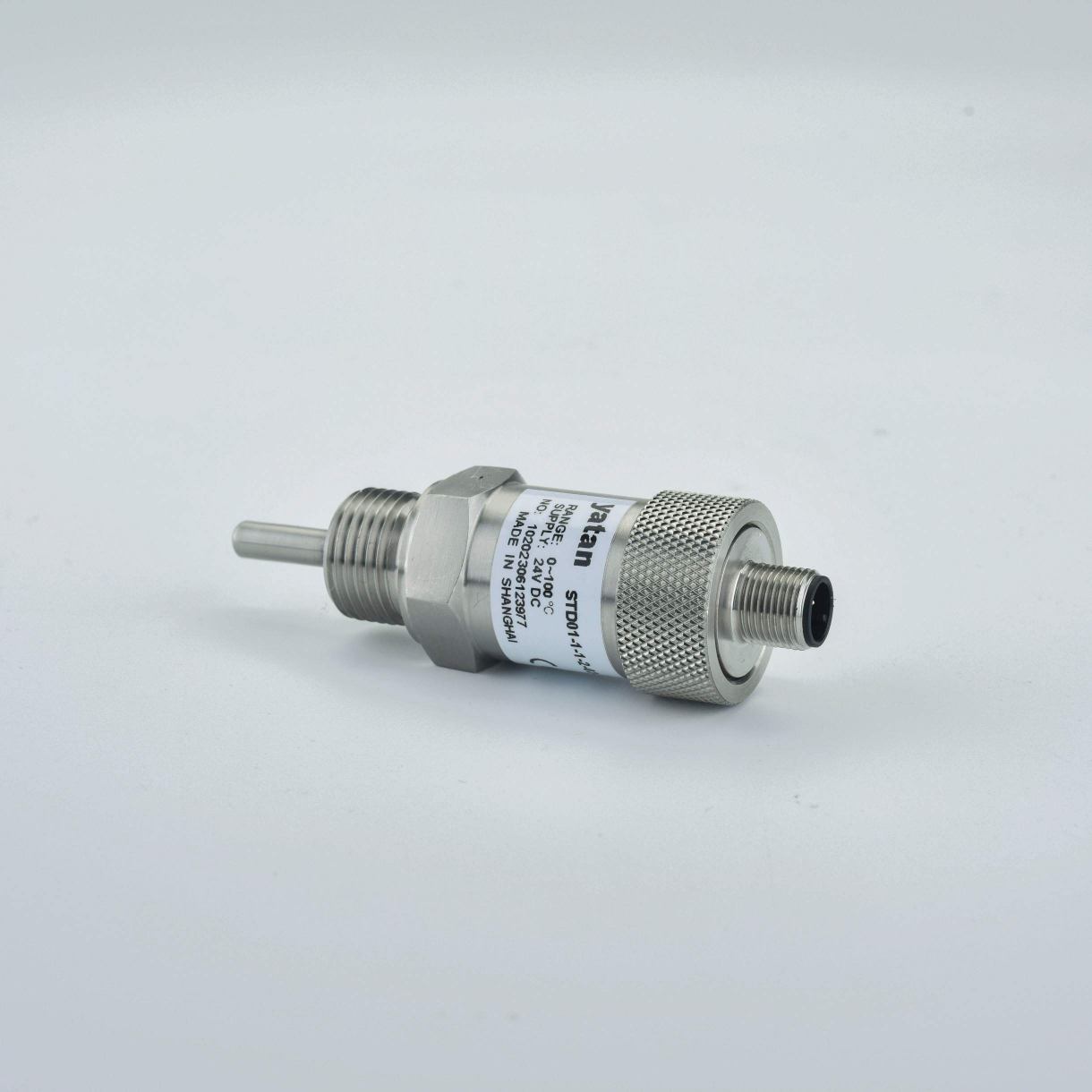

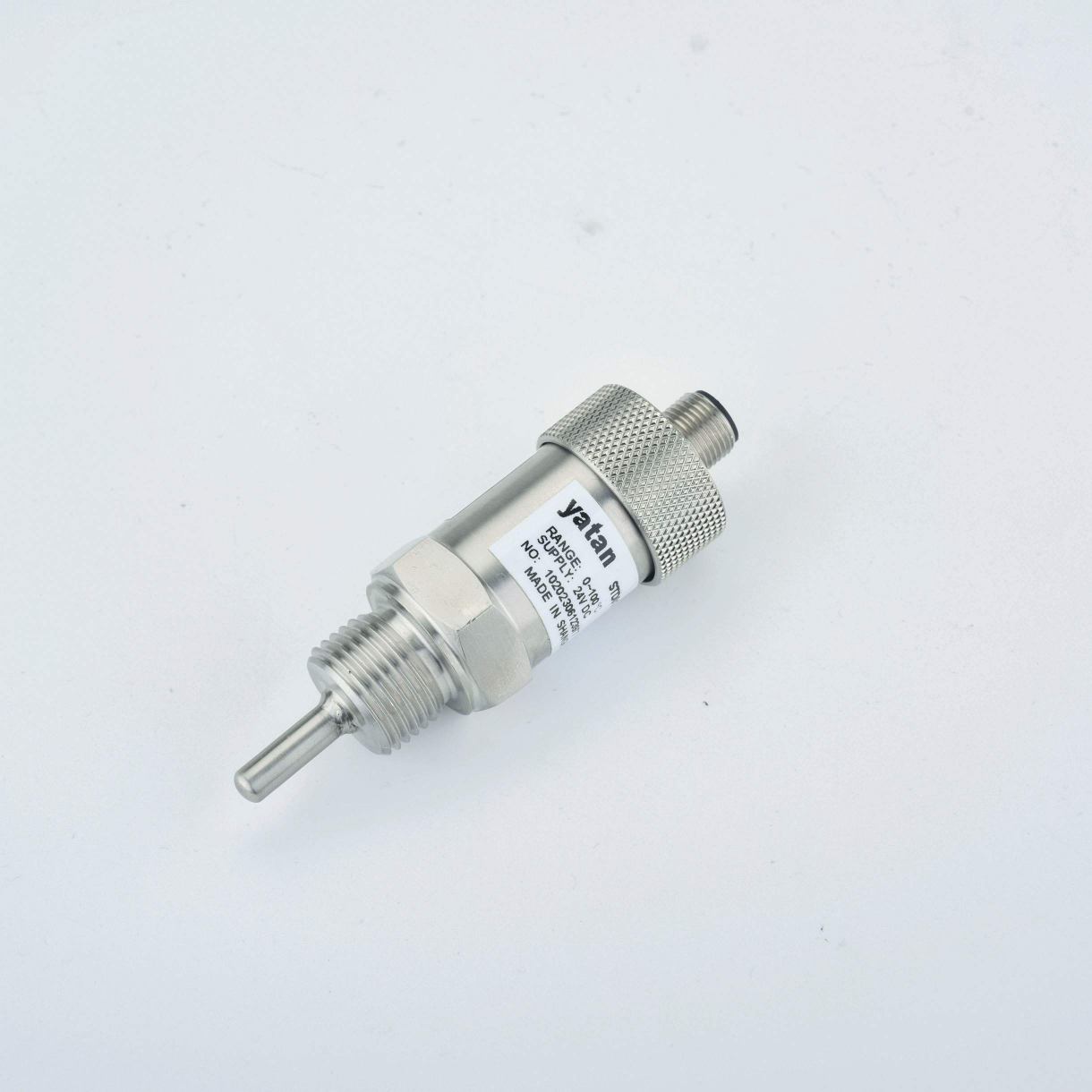

Yes, the STD01 Temperature Sensor features a robust 304 stainless steel housing with excellent resistance to vibration (20g) and shock (50g), and complies with IEC EMC standards for reliable operation in harsh environments.
Q7: What is the operating temperature range of the STD01 Temperature Sensor?
The STD01 Temperature Sensor operates within a temperature range of -40°C to +100°C, making it suitable for low-temperature and moderately high-temperature industrial environments, including outdoor and harsh conditions.
Q8: Is the STD01 Temperature Sensor suitable for long-term operation with low maintenance?
Yes, the STD01 Temperature Sensor offers excellent long-term stability of ≤±0.05% F.S/year. Its robust stainless steel construction and high-reliability PT100 element ensure low maintenance requirements and reliable continuous operation in industrial applications.
