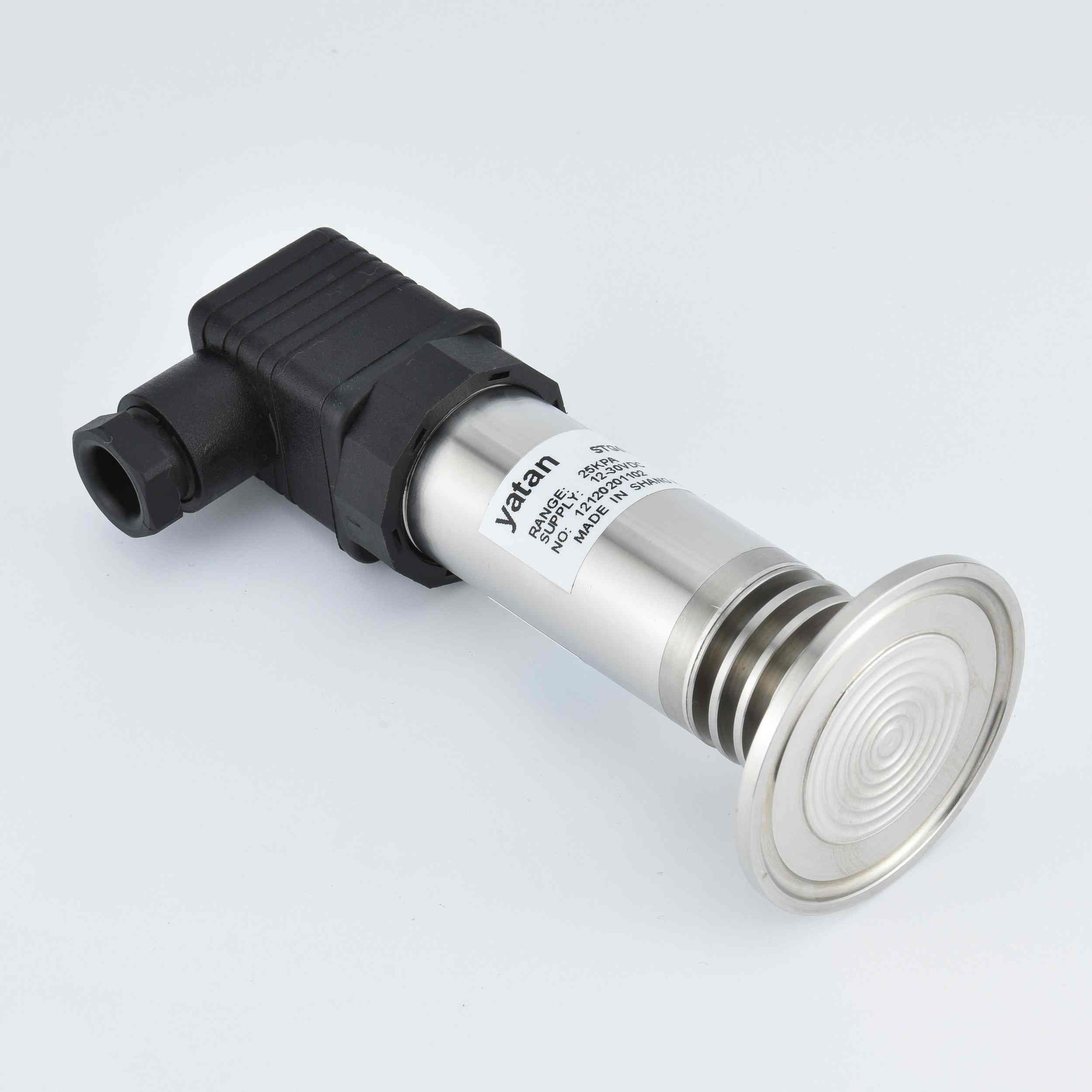

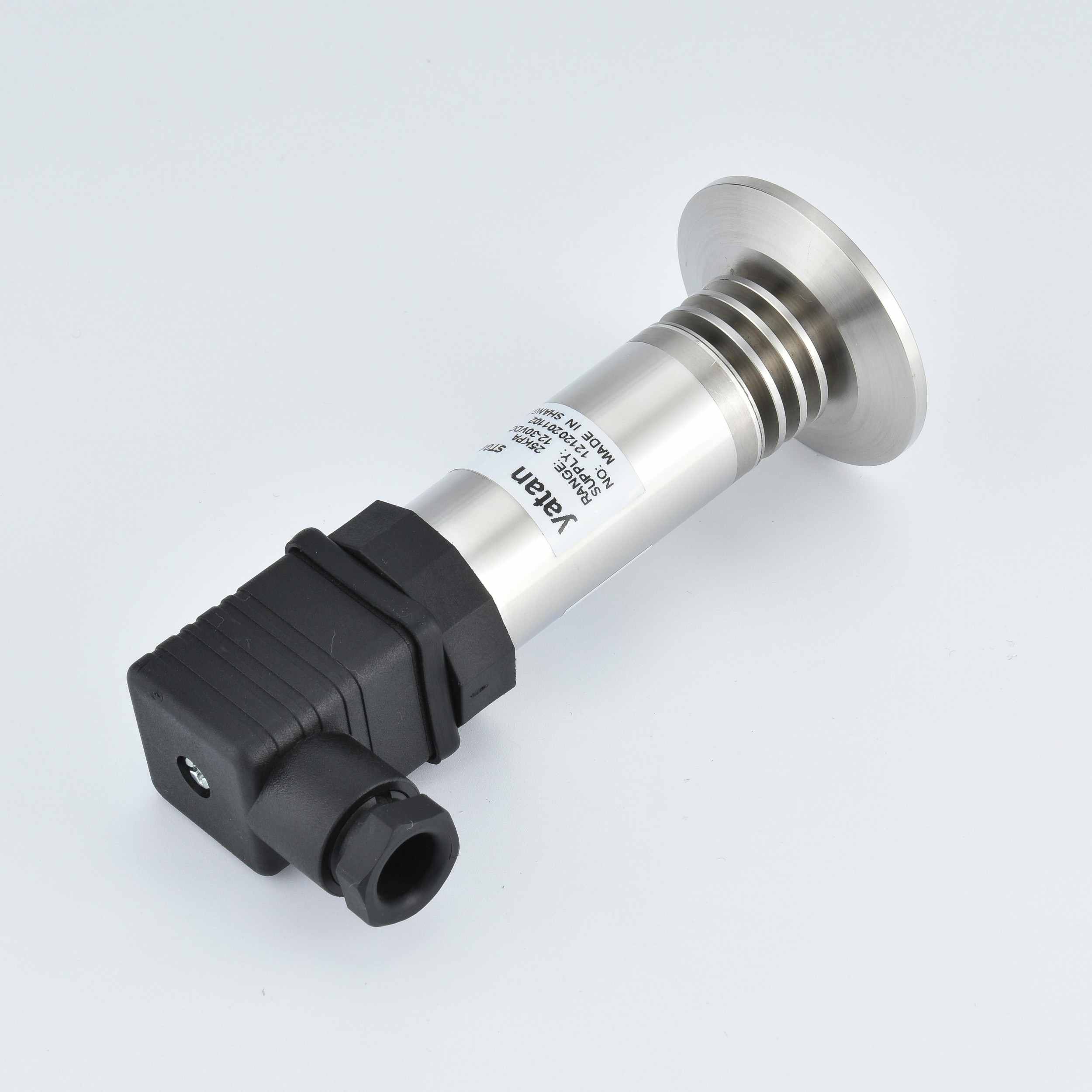

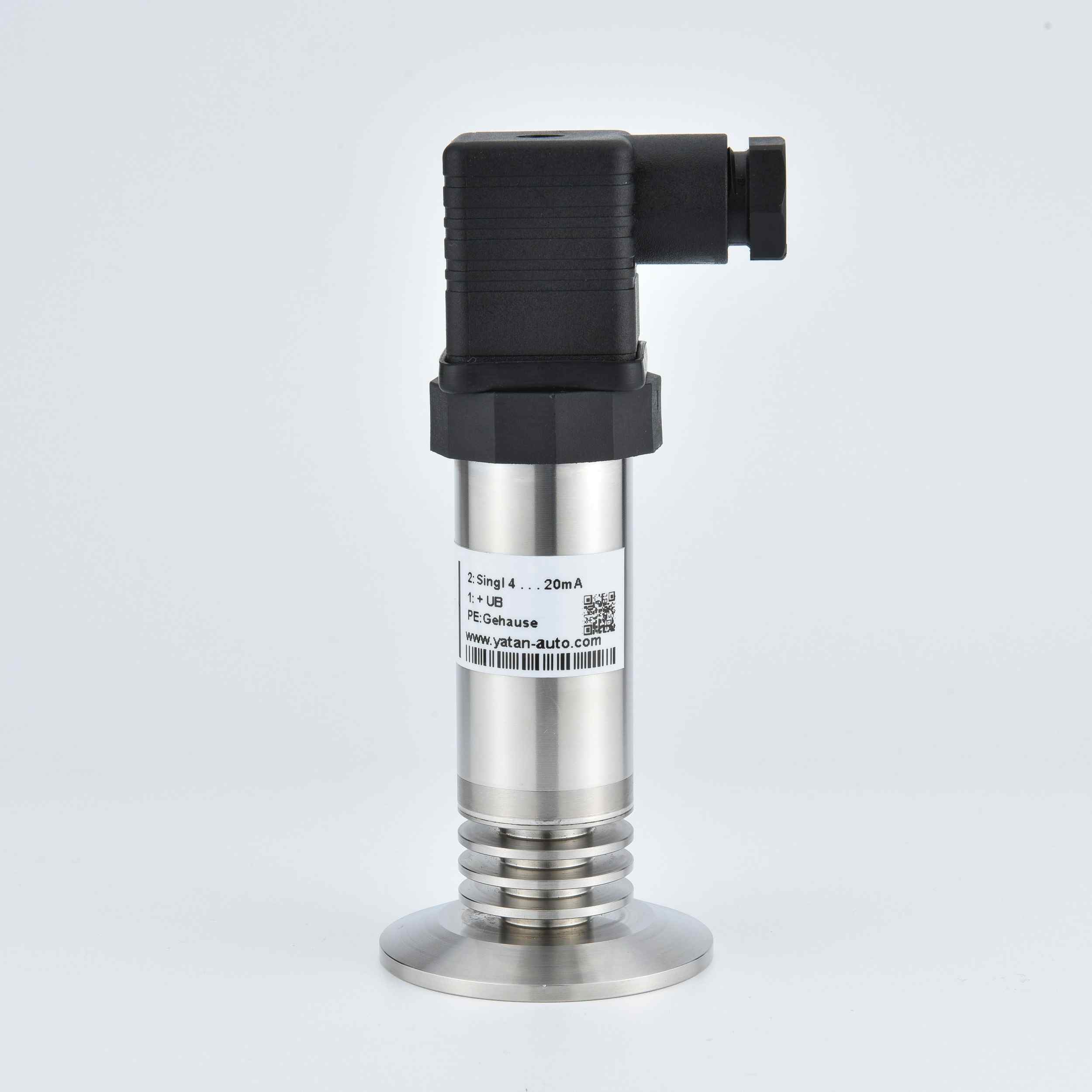

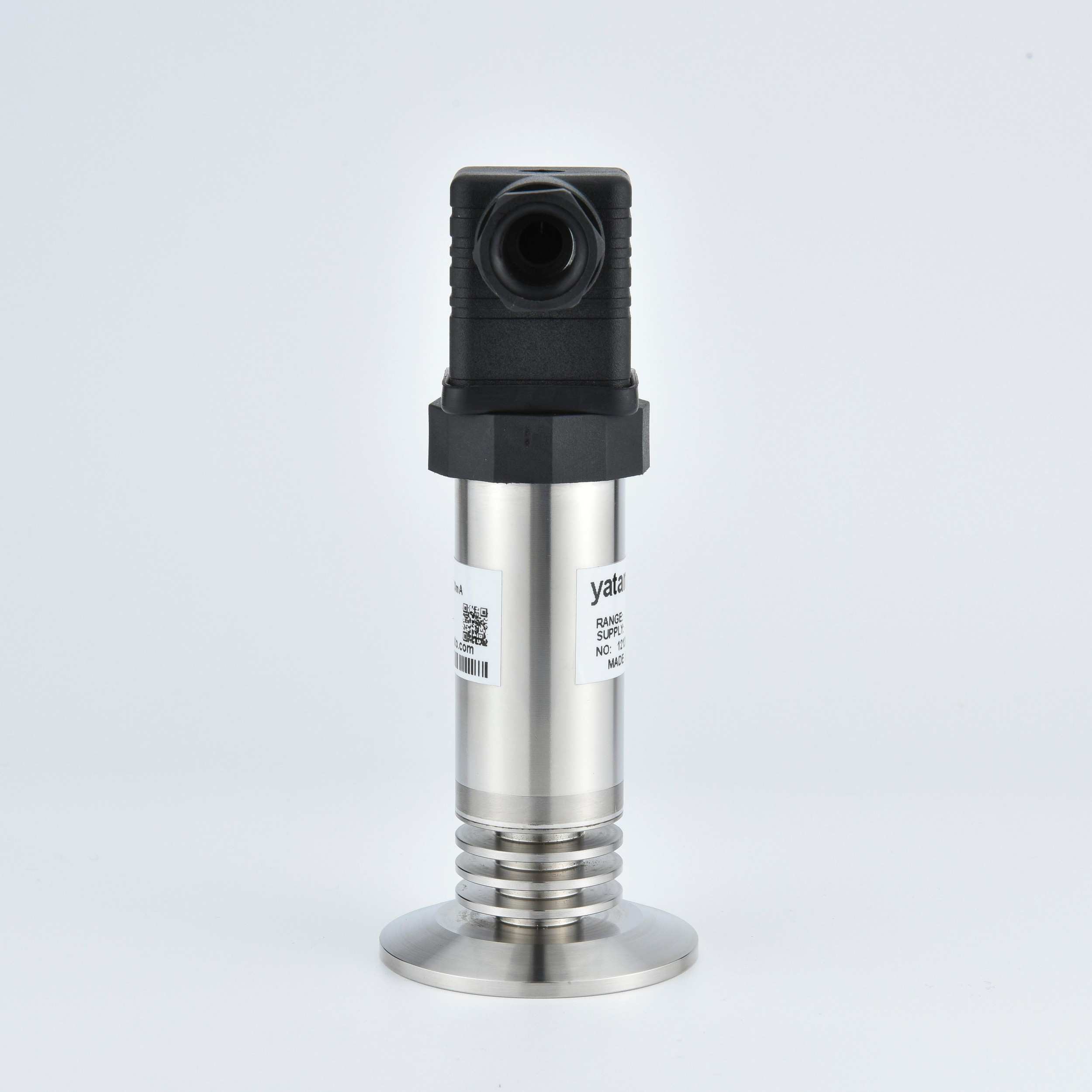

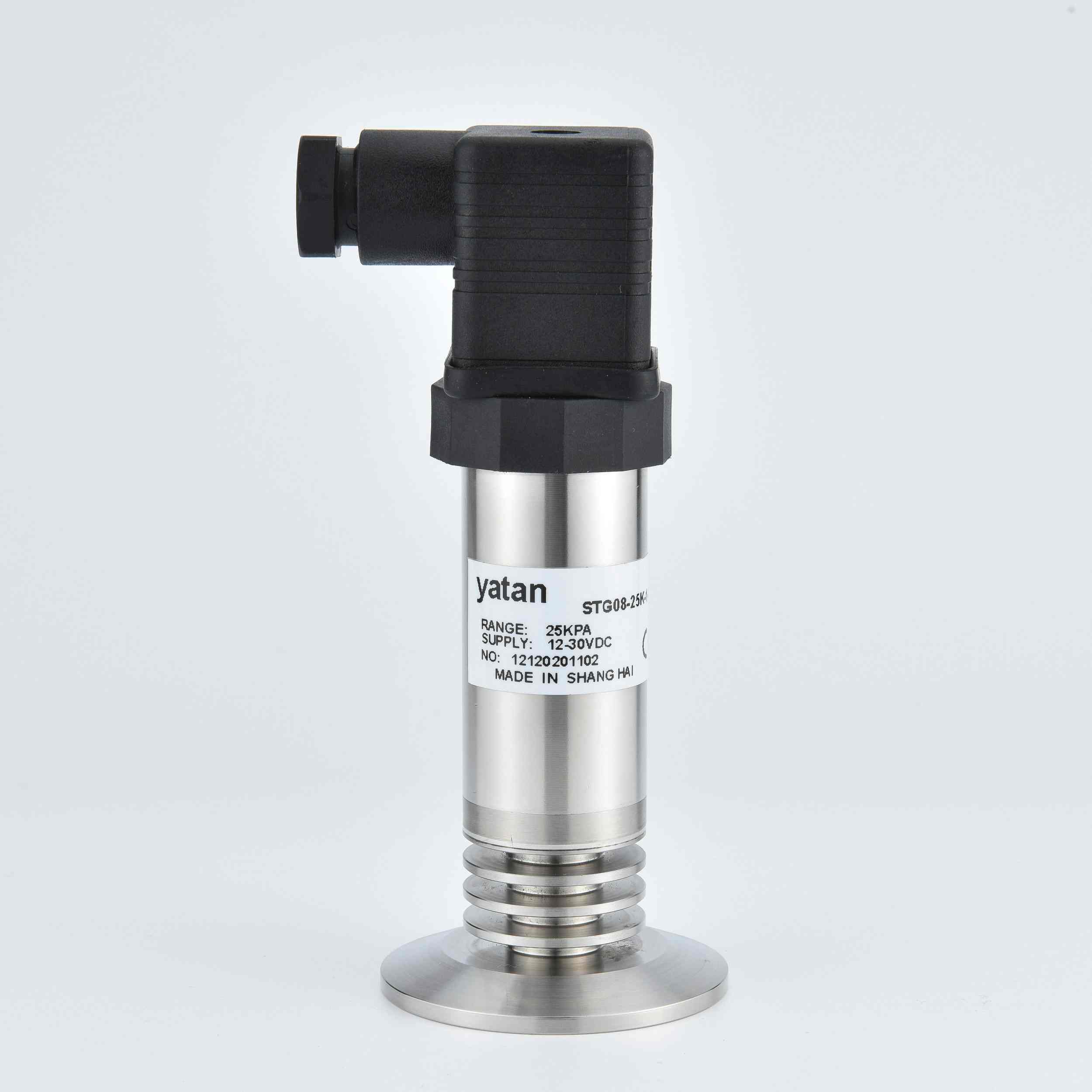

STG08 Sanitary Flush Diaphragm Pressure Sensor

The STG08 pressure sensor uses a silicon piezoresistive sensing element with a stainless steel isolation diaphragm as the core measuring component. Each unit undergoes automated computer testing and laser trimming to achieve precise zero and temperature compensation over a wide operating temperature range. The signal conditioning circuit is integrated inside a stainless steel housing, converting the sensor signal into a standard industrial output.The sanitary diaphragm seal pressure transmitter is specifically designed for pressure and level measurement in hygienic environments such as the food processing, dairy, chemical, and pharmaceutical industries. The process connection adopts a hygienic tri-clamp diaphragm seal, ensuring easy cleaning and compliance with sanitary requirements.

1. Key Features

High-quality and highly stable pressure sensing element
Hygienic flush diaphragm design
All stainless steel construction with brushed surface, no dead corners
Reverse polarity protection and transient overcurrent / overvoltage protection
Compliant with EMC protection requirements

2. Technical Specifications

General Electrical Data

Pressure Range	0 to 40Bar
Pressure Type	Gauge / Absolute
Output Signal	4–20mA,0–5V,1–5V,0–10V,Modbus485(RTU)
Supply Voltage	12 VDC / 24 VDC

Performance Specifications

Accuracy	±0.5%F.S.,±0.2%F.S.
Long-term Stability	≤±0.1%F.S./year
Overpressure	150%F.S.
Burst pressure	500% FS
Temperature Compensation Range (accuracy maintained within this range)	-20°C to +85°C, -40°C to +125°C
Operating temperature range	−40 to +125°C
Storage temperature range	−40 to +125°C
Media Temperature Range	-40°C to +125°C

3. Applications

Food processing & sanitary machinery
Pharmaceutical equipment
Beverage and brewery equipment
Grinding and milling machinery
Other industrial applications

4. Selection Guide

Pressure Sensor Selection Key Points: Confirm the measuring range, match the output signal, ensure media compatibility, select the appropriate mounting interface, and define the accuracy requirements.

5. FAQ (Frequently Asked Questions)

Q1: Does the STG08 pressure sensor support high-precision measurement?

Yes, the STG08 offers accuracy levels of ±0.5% F.S and ±0.2% F.S, with excellent long-term stability (≤±0.1% F.S/year), making it suitable for applications requiring high measurement precision.

Q2: What is the operating temperature range of the STG08?

The STG08 pressure sensor operates within a temperature range of -40°C to +125°C and features wide temperature compensation, ensuring stable performance in harsh industrial environments.

Q3: How does the STG08 sanitary pressure sensor ensure hygiene safety?

The STG08 adopts a stainless steel flush diaphragm isolation structure with no dead corners and easy cleaning. It meets hygienic standards and is suitable for sterile measurement environments in food and pharmaceutical industries, preventing media residue and contamination.

Q4: What output signals does the STG08 support?

The STG08 supports multiple industrial standard output signals, including 4–20mA, 0–5V, 1–5V, 0–10V, and Modbus 485 RTU, making it easy to integrate with various control systems and PLCs.

Q5: What is the pressure range of the STG08 pressure sensor?

The standard pressure range of the STG08 sanitary flush diaphragm pressure sensor is 0~40Bar, and it can be customized to meet different application requirements, covering low to medium-high pressure measurement needs.

Q6: Which industries is the STG08 sanitary flush diaphragm pressure sensor suitable for?

The STG08 sanitary flush diaphragm pressure sensor is designed for hygienic applications and is widely used in food processing, dairy, beverage brewing, pharmaceutical, and chemical industries. Its flush diaphragm structure prevents media residue, making it ideal for clean and sterile pressure or level measurement environments.

6. Related Products

7. Contact Us

📧 Email: sales@yatansensor.com, support@yatansensor.com

💬 WhatsApp:+86 185 1660 2370

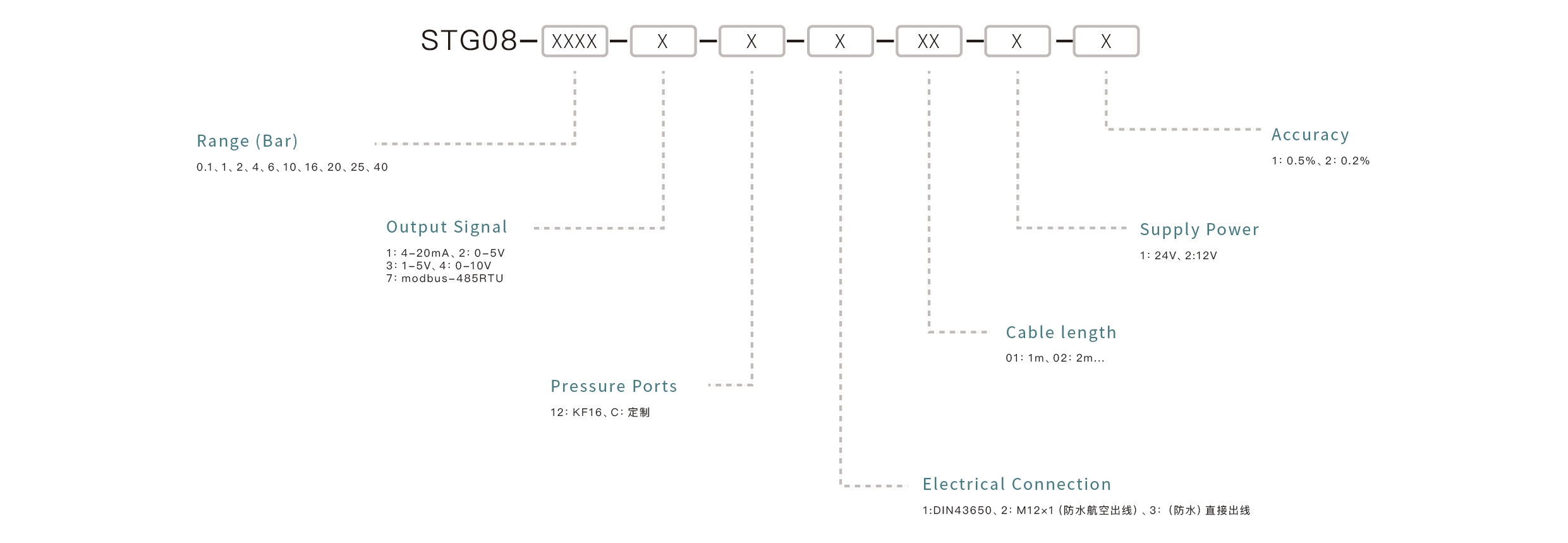

8. Model Selection / Ordering Code

Please specify the full ordering code when requesting a quotation.

        Model - Range - Output - Accuracy - Electrical Interface - Connector - Cable Length - Supply Voltage

        Example:
        STG08 - 0~100bar - 4-20mA - 0.5%- G1/4 - M12 - 1m - 24V
