STW06 Industrial Force Sensor for High Load Measurement

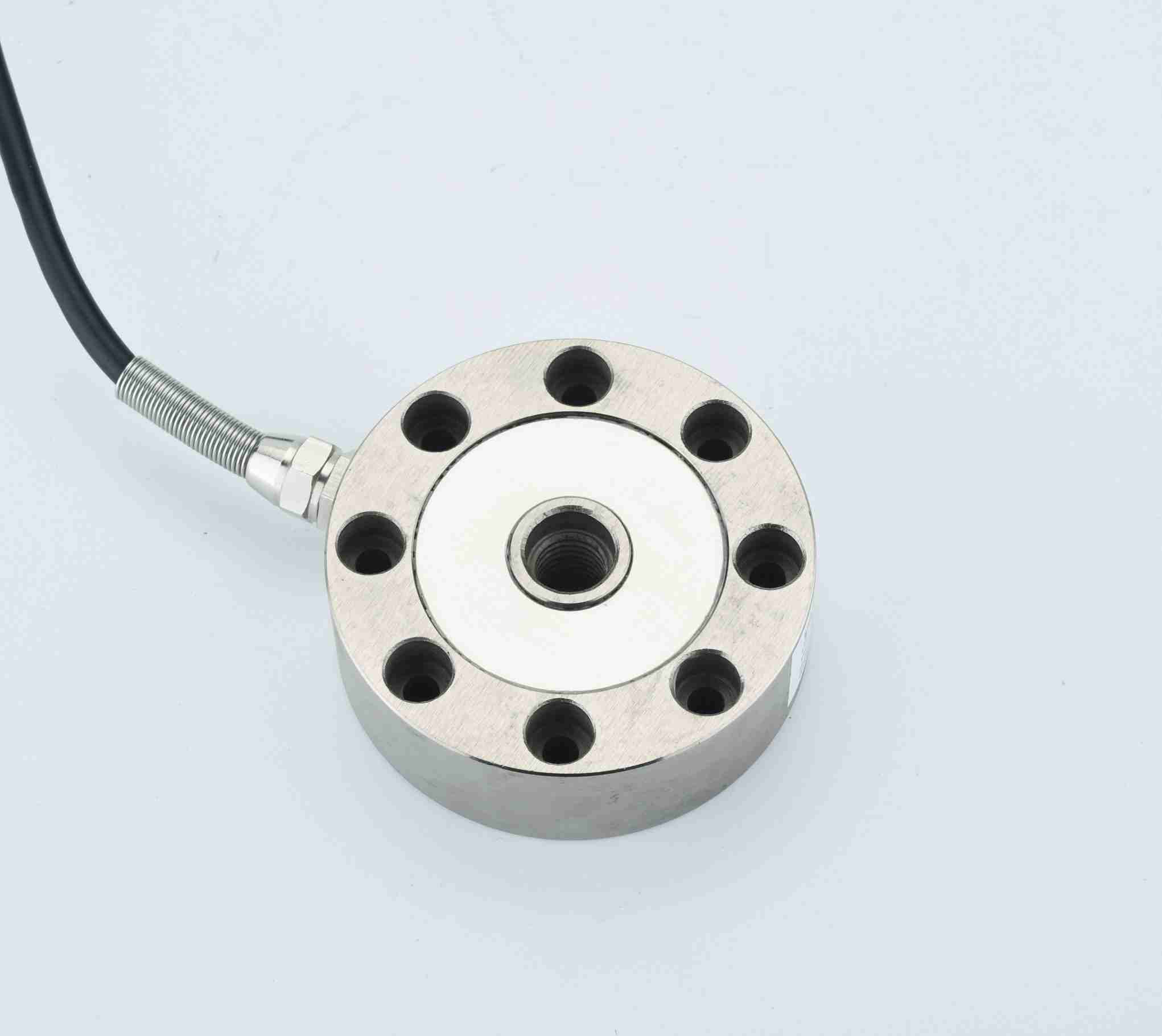

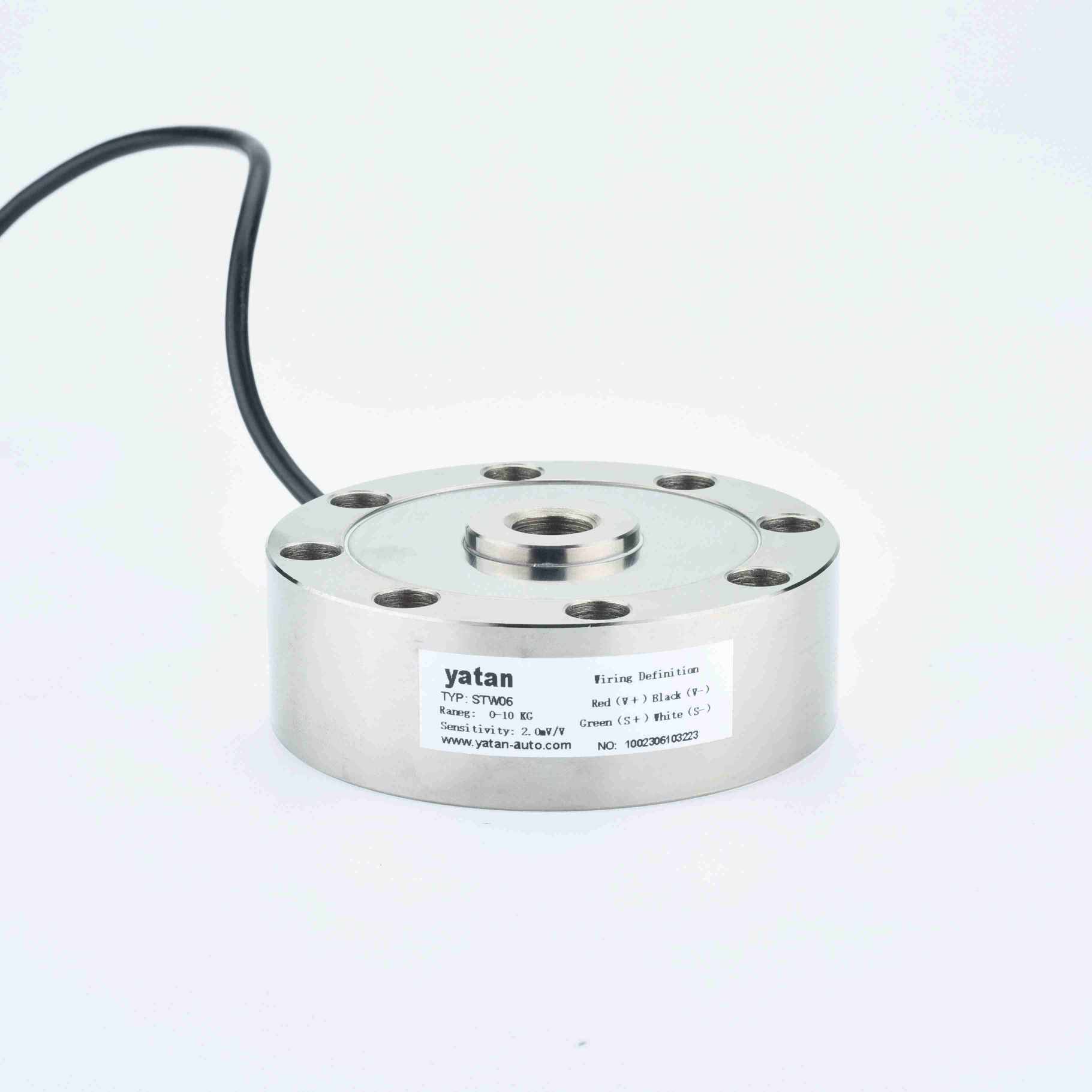

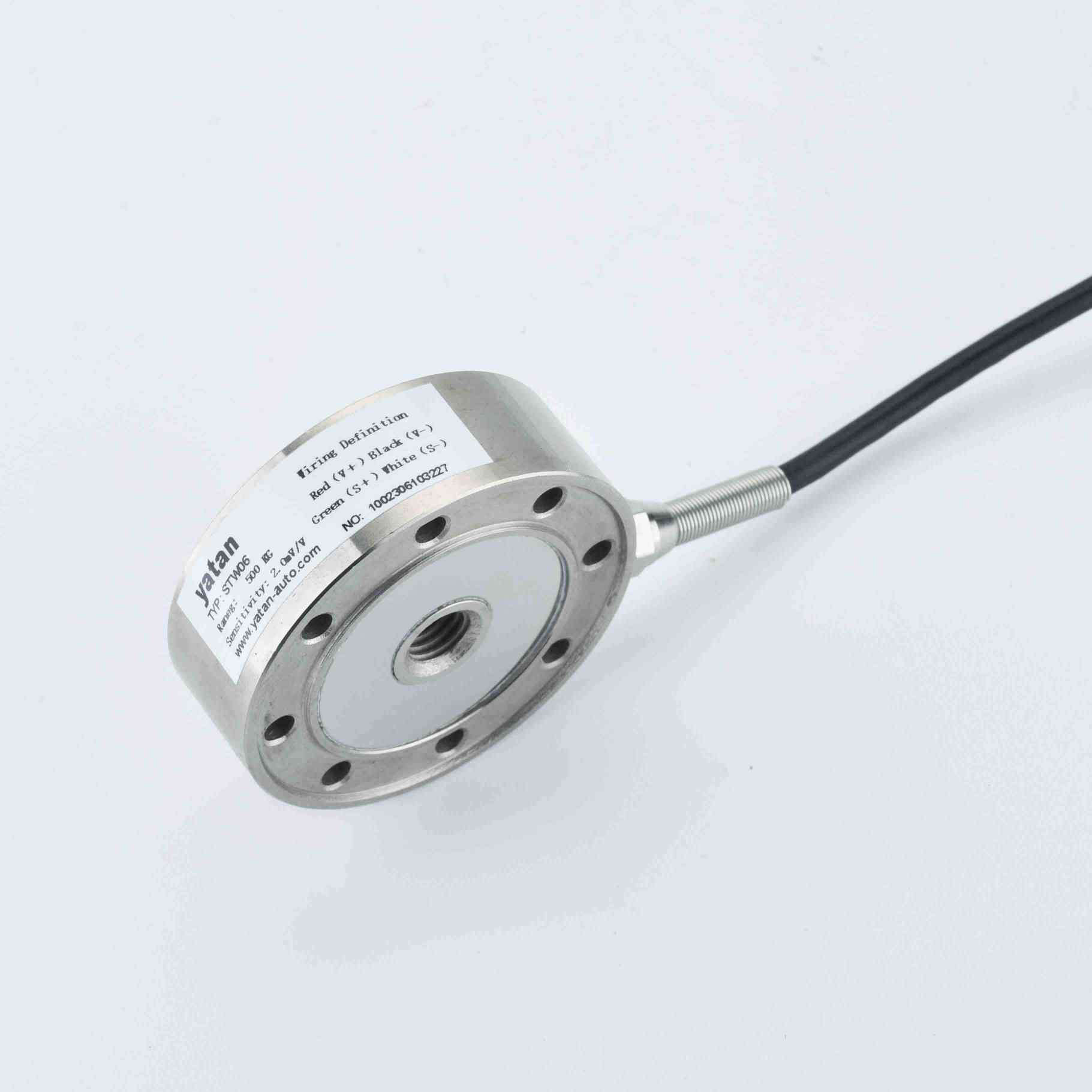

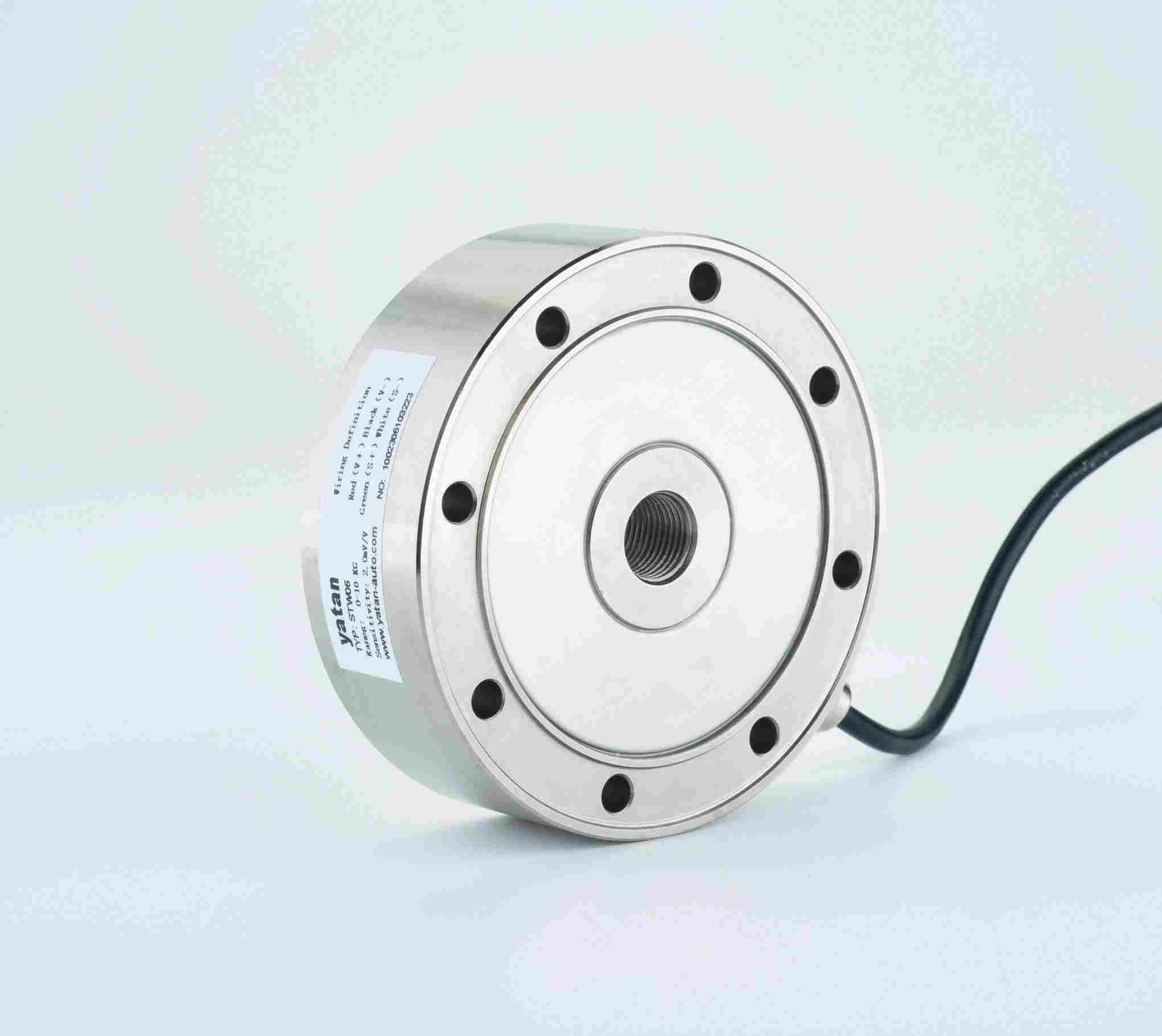

The STW06 Force Sensor is a high-precision and highly stable industrial load measurement device designed for accurate force and weighing applications. It offers strong anti-eccentric load capability and long-term reliability. The measurement range covers from 0–70KN up to 3000KN, meeting various industrial requirements. It supports a standard 2.0mV/V output and multiple signal options including 4–20mA, 0–10V, 0–5V, RS485 Modbus RTU, CANopen, and other industrial communication protocols, ensuring seamless integration with automation systems. Widely used in belt scales, hopper scales, silo weighing systems, material testing machines, and safety inspection equipment. With a rugged alloy steel or stainless-steel housing, it delivers excellent environmental resistance and up to 0.02% F.S. accuracy for high-precision force measurement applications.

1. Key Features

High Accuracy Measurement
Durable Construction & Reliable Performance
Various output signal options available
Wide measurement range

2. Technical Specifications

General Electrical Data

Measurement Range	0–70KN, 100–250KN, 300–500KN, 600–1000KN, 2000KN, 3000KN(Custom ranges available within 0–3000KN series)
Rated Output	2.0mV/V
Output Signal	mV/V (default), 4–20mA, 0–5V, 1–5V, 0–10V, 0.5–4.5V, RS485 Modbus RTU, CANopen, PNP, NPN
Supply Voltage	12 VDC / 24 VDC

Performance Specifications

Accuracy	0.5%F.S, 0.2%F.S, 0.1%F.S, 0.05%F.S, 0.02%F.S(optional grades)
Creep Error
Zero Balance	±1%F.S
Zero Temperature Effect	±0.05%F.S/10°C
Output Temperature Effect	±0.05%F.S/10°C
Safe Overload	150%F.S
Operating Temperature Range	-20°C to +65°C

3. Applications

Batching and dosing systems
Crane and Load Monitoring Systems
Belt Scale Weighing Systems
Warehouse Scales and Industrial Weighing Equipment
Material Testing Systems
Other industrial applications

4. Selection Guide

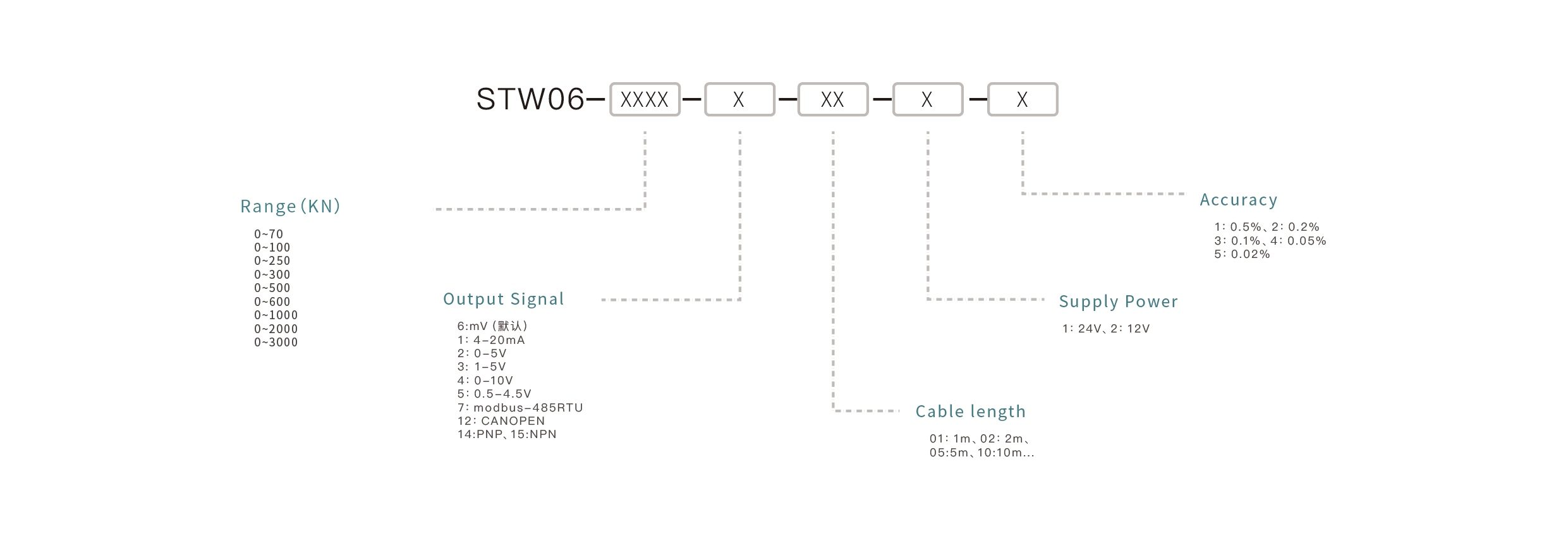

Pressure Sensor Selection Key Points: Confirm the measuring range, match the output signal, ensure media compatibility, select the appropriate mounting interface, and define the accuracy requirements.

5. FAQ (Frequently Asked Questions)

Q1: What are the structural features of the STW06 Force Sensor?

The STW06 Force Sensor is built with alloy steel or stainless steel housing, offering strong durability, anti-interference capability, and long-term stability for heavy-duty industrial environments.

Q2: What is the power supply of the STW06 Force Sensor?

The STW06 Force Sensor supports 12VDC and 24VDC power supply, making it suitable for a wide range of industrial automation systems with flexible integration.

Q3: Is the STW06 Force Sensor suitable for material testing machines?

Yes, it is widely used in material testing machines, mechanical force testing systems, and industrial laboratory equipment for accurate force measurement.

Q4: Can the STW06 Force Sensor be used in harsh environments?

Yes, it is built with alloy steel or stainless steel housing, providing excellent durability and resistance to industrial environmental conditions.

Q5: What is the measurement range of the STW06 Force Sensor?

The STW06 Force Sensor covers a wide range from 0–70KN up to 3000KN, suitable for various industrial force measurement requirements.

Q6: What output signals does the STW06 Force Sensor support?

It supports multiple output options including standard mV/V signal, 4–20mA, 0–10V, 0–5V, RS485 Modbus RTU, CANopen, and other industrial communication protocols.

Q7: What is the accuracy of the STW06 Force Sensor?

The STW06 Force Sensor offers high precision with up to 0.02% F.S accuracy, making it suitable for demanding industrial measurement applications.

Q8: What industries use the STW06 Force Sensor?

The STW06 Force Sensor is widely used in industrial weighing and force measurement applications, including belt scales, hopper scales, silo weighing systems, material testing machines, and safety monitoring equipment.
