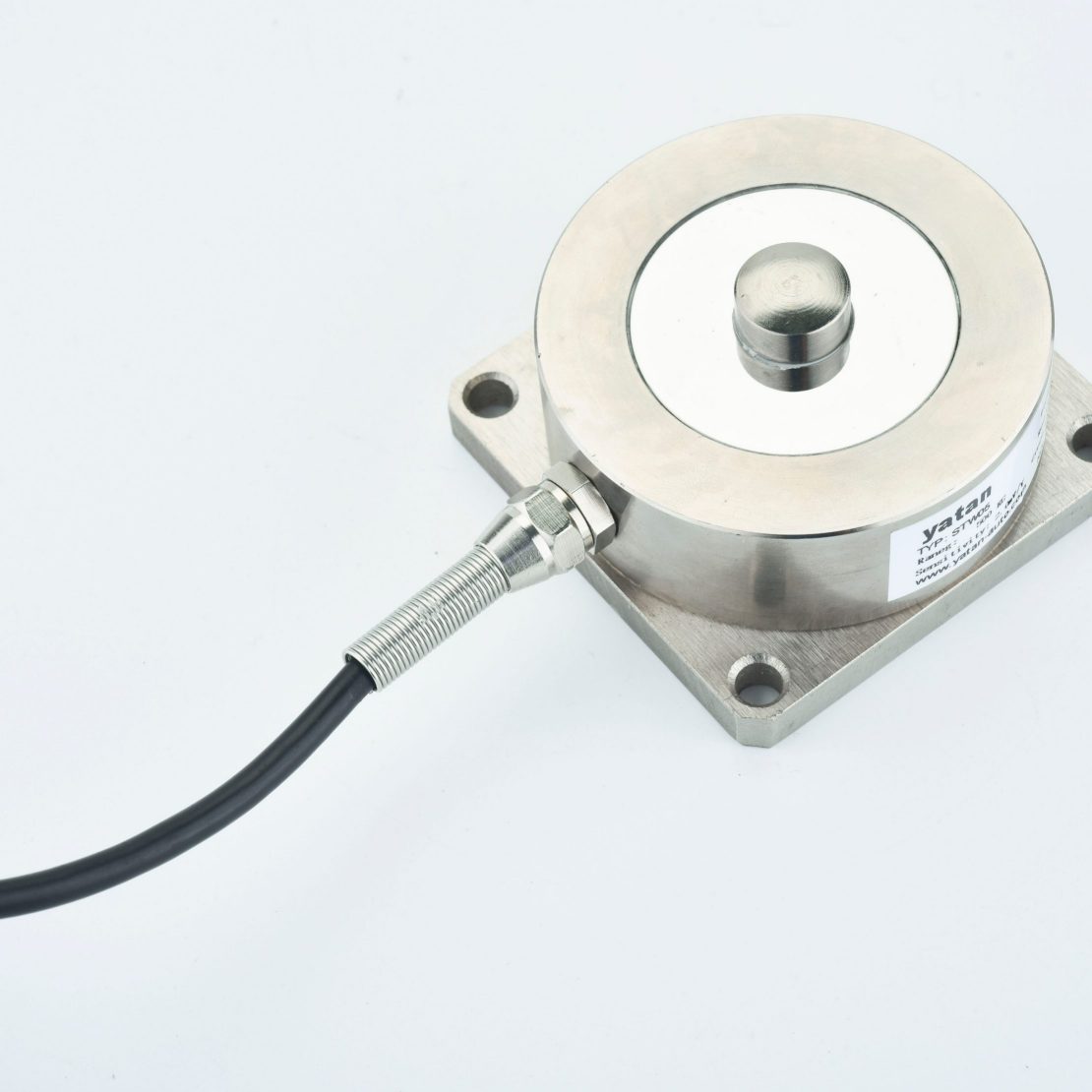

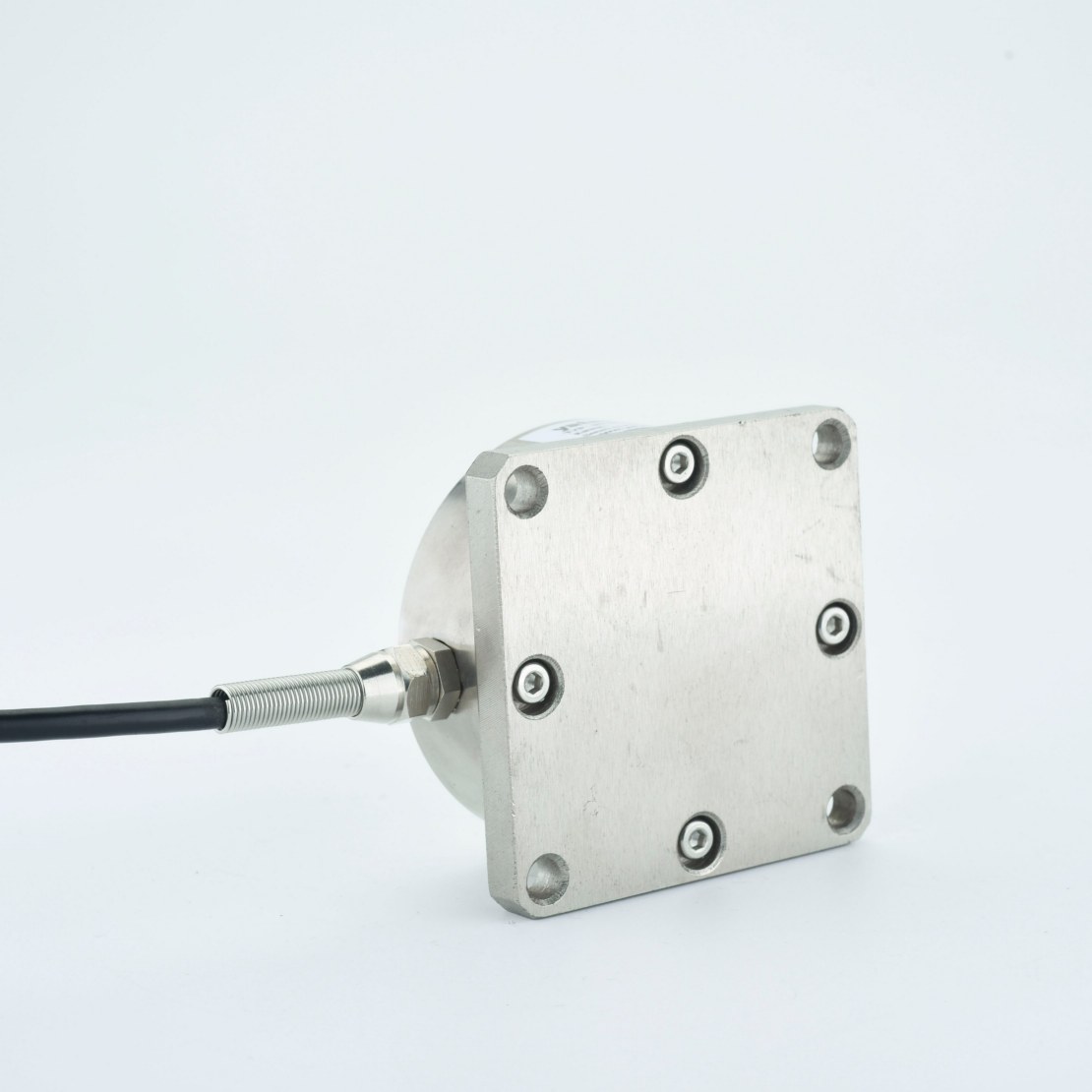

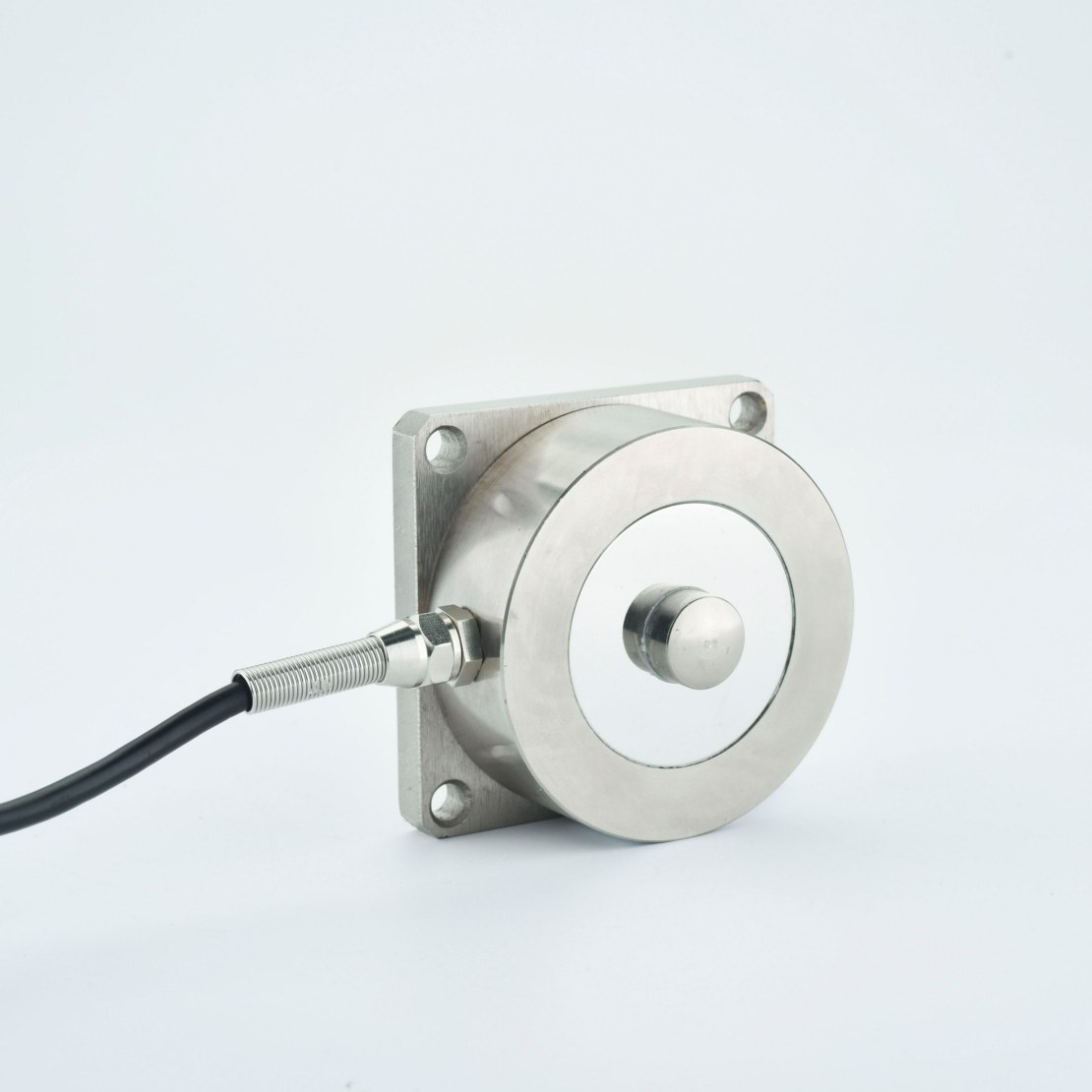

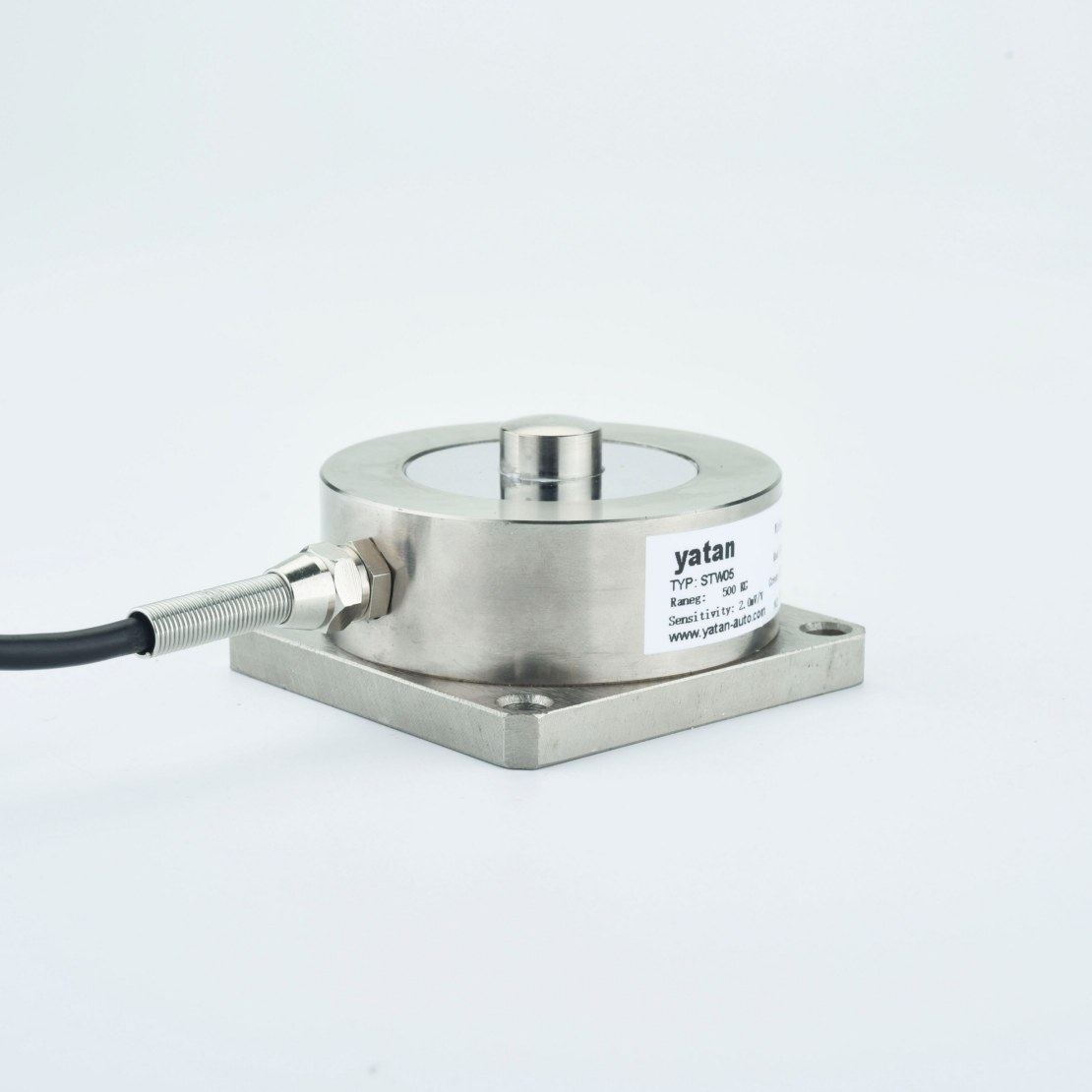

STW05 Industrial Force Sensor

The STW05 load cell sensor is a high-precision industrial force sensor featuring excellent rigidity, superior off-center load resistance, and long-term stability. Constructed with high-quality alloy steel or stainless steel, the sensor supports a wide measuring range from 0~3KN to 0~1000KN. Multiple output options are available, including mV, 4-20mA, 0-10V, RS485 Modbus RTU, and CANOPEN, making it suitable for various industrial automation and control systems. With an accuracy of up to 0.02% F.S, the STW05 offers low temperature drift, low creep, and excellent repeatability. It is widely used in belt scales, hopper scales, storage weighing systems, tank weighing, material testing machines, and industrial safety monitoring equipment. The sensor delivers stable performance and strong anti-interference capability for industrial weighing and force measurement applications.

1. Key Features

Various output signal options available
Wide measurement range
Durable aluminum alloy structure
Long-term stable operation
Integrated structure

2. Technical Specifications

General Electrical Data

Capacity Range	0~3KN, 0~10KN, 0~20KN, 0~70KN, 0~100KN, 0~250KN, 0~300KN, 0~500KN, 0~1000KN(Custom capacities available within 0~3KN to 0~1000KN)
Rated Output	2.0mV/V
Output Signal	mV(default), 4-20mA, 0-5V, 1-5V, 0-10V, 0.5-4.5V, Modbus RS485 RTU, CANOPEN, PNP, NPN, 0-±5V, 0-±10V
Supply Voltage	12 VDC / 24 VDC

Performance Specifications

Combined Accuracy	0.5%F.S, 0.2%F.S, 0.1%F.S, 0.05%F.S, 0.02%F.S(including non-linearity, hysteresis, and repeatability)
Creep	±0.02%F.S/30min
Zero Balance	±1%F.S
Temperature Effect on Zero	±0.02%F.S/10°C
Temperature Effect on Output	±0.02%F.S/10°C
Safe Overload	150%F.S
Operating Temperature Range	-20°C to +65°C

3. Applications

Belt Scale Weighing Systems
Tank and Silo Weighing Monitoring Systems
Warehouse Scales and Industrial Weighing Equipment
Batching and dosing systems
Crane and Load Monitoring Systems
Laboratory and testing equipment
Other industrial applications

4. Selection Guide

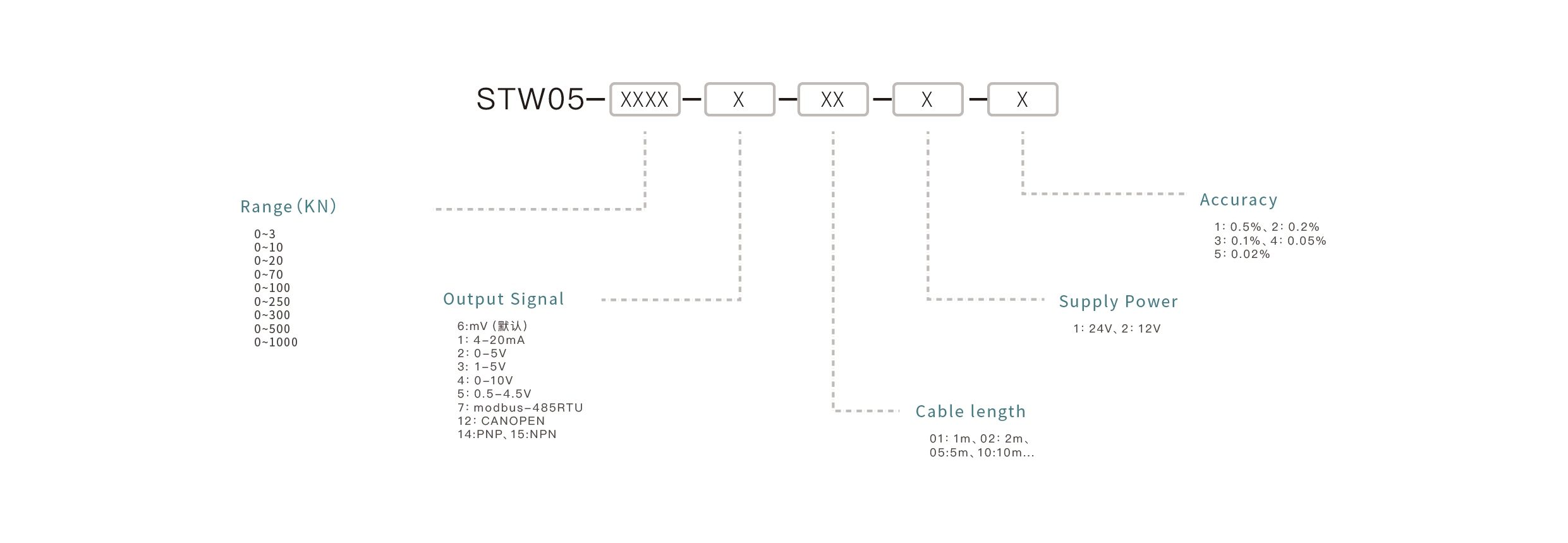

Pressure Sensor Selection Key Points: Confirm the measuring range, match the output signal, ensure media compatibility, select the appropriate mounting interface, and define the accuracy requirements.

5. FAQ (Frequently Asked Questions)

Q1: What is the operating temperature range of the STW05 Load Cell Sensor?

The standard operating temperature range of the STW05 Load Cell Sensor is -20°C to +65°C, ensuring stable performance in various industrial environments.

Q2: Does the STW05 Load Cell Sensor support customization?

Yes. The STW05 Load Cell Sensor can be customized for measuring range, output signal, power supply, mounting dimensions, and communication protocols according to different application requirements.

Q3: Can the STW05 Load Cell Sensor be integrated into industrial automation systems?

Yes. The STW05 Load Cell Sensor is compatible with PLCs, weighing controllers, industrial automation equipment, and intelligent control systems.

Q4: What is the accuracy level of the STW05 Load Cell Sensor?

The sensor provides high accuracy up to 0.02% F.S, with low temperature drift, low creep, and excellent repeatability.

Q5: What materials are available for the STW05 Load Cell Sensor?

The STW05 Load Cell Sensor is available in alloy steel and stainless steel versions, offering excellent mechanical strength and corrosion resistance.

Q6: What is the measuring range of the STW05 Load Cell Sensor?

The sensor supports customizable measuring ranges from 0~3KN up to 0~1000KN for various industrial force and weighing applications.

Q7: What output signals does the STW05 Load Cell Sensor support?

The STW05 Load Cell Sensor supports multiple output options including mV, 4-20mA, 0-5V, 1-5V, 0-10V, RS485 Modbus RTU, CANOPEN, PNP, and NPN outputs.

Q8: What industries is the STW05 Load Cell Sensor suitable for?

The STW05 Load Cell Sensor is widely used in belt scales, hopper scales, warehouse weighing systems, material testing machines, automated production lines, industrial force measurement, and safety monitoring equipment.
