STG17 Explosion-Proof Pressure Transmitter

The STG17 Explosion-Proof Pressure Transmitter features a fully welded housing and digital circuit temperature compensation for high precision and excellent linearity. It is ideal for automated liquid pressure measurement and control in hydraulic systems, oilfields, mines, chemical plants, and natural gas applications. Corrosion-resistant and compatible with 316L media, the transmitter provides protection against reverse polarity, overcurrent, overvoltage, and electromagnetic interference. Pressure range up to 700Bar with accuracy options of ±0.1% to ±0.5% F.S, 4-20mA output, and 12V/24VDC supply. The explosion-proof design complies with GB3836.1 and GB3836.4 standards and features IP67 protection, vibration and shock resistance, and a 304 stainless steel housing. Connections available in 1/4NPT, 1/2NPT, or custom. STG17 is the perfect choice for nuclear power, petrochemical, mining, metallurgy, and other automated liquid pressure control systems.

1. Key Features

IP67 protection rating with explosion-proof design
Compatible with 316L media
Compliant with GB3836.1 and GB3836.4 explosion-proof standards

2. Technical Specifications

General Electrical Data

Pressure Range	0–0.1 to 700 bar
Pressure Reference	Gauge
Output Signal	4–20mA
Supply Voltage	12 VDC / 24 VDC

Performance Specifications

Accuracy	±0.5% F.S., ±0.2% F.S., ±0.1% F.S.
Long-term Stability	≤ ±0.2%F.S./year
Overpressure	200% FS
Burst pressure	500% FS
Temperature compensation range (accuracy remains stable within this range)	-20~+85℃, -40~+150℃
Operating temperature range	-20~+85℃, -40~+150℃
Storage temperature range	−40 to +125°C
Media temperature range	-40~+125℃, -40~+150℃

3. Applications

Nuclear power hydraulic systems
Mining machinery
Petrochemical Equipment
Metallurgical Equipment
Other industrial applications

4. Selection Guide

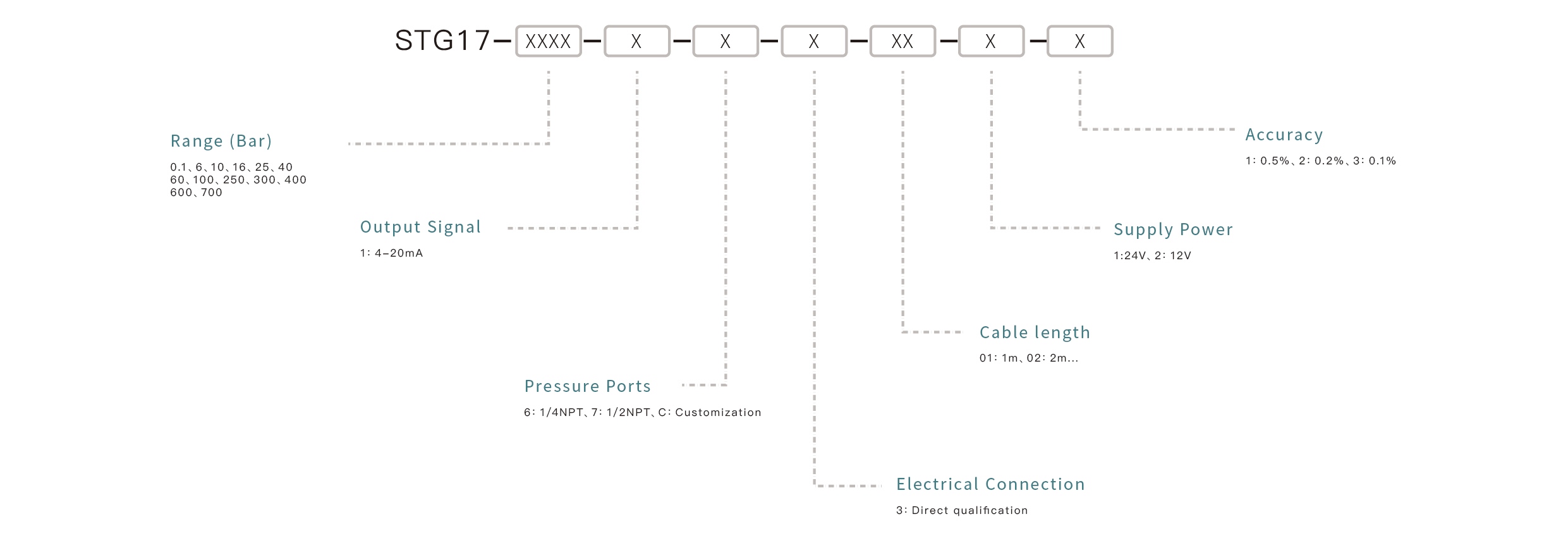

Pressure Sensor Selection Key Points: Confirm the measuring range, match the output signal, ensure media compatibility, select the appropriate mounting interface, and define the accuracy requirements.

5. FAQ (Frequently Asked Questions)

Q1: What industries is the STG17 Explosion-Proof Pressure Transmitter suitable for?

The STG17 Explosion-Proof Pressure Transmitter is widely used in hydraulic systems, oilfields, mines, chemical plants, nuclear power, and natural gas automated liquid pressure measurement and control applications.

Q2: What is the protection rating of the STG17 pressure transmitter?

The STG17 features an IP67 dustproof and waterproof design, with an explosion-proof structure compliant with GB3836.1 and GB3836.4 standards.

Q3: What are the output signal and operating voltage of the STG17 transmitter?

The transmitter provides a standard 4-20mA analog output and supports 12VDC or 24VDC supply, suitable for direct connection to industrial automation systems.

Q4: What is the measurement accuracy and pressure range of the STG17 transmitter?

Accuracy options include ±0.1%, ±0.2%, or ±0.5% F.S, with a pressure range of 0~0.1~700Bar, suitable for liquid and gas pressure measurement.

Q5: What are the physical and environmental specifications of the STG17?

The transmitter has a 304 stainless steel housing, connection options of 1/4NPT, 1/2NPT, or custom, vibration and shock resistance, temperature compensation from -20~150℃, and storage temperature from -40~125℃.

6. Related Products

7. Contact Us

📧 Email: sales@yatansensor.com, support@yatansensor.com

💬 WhatsApp:+86 185 1660 2370

8. Model Selection / Ordering Code

Please specify the full ordering code when requesting a quotation.

        Model - Range - Output - Accuracy - Electrical Interface - Connector - Cable Length - Supply Voltage

        Example:
        STG17 -  0~100bar - 4-20mA - 0.5%- G1/4 - M12 - 1m - 24V
