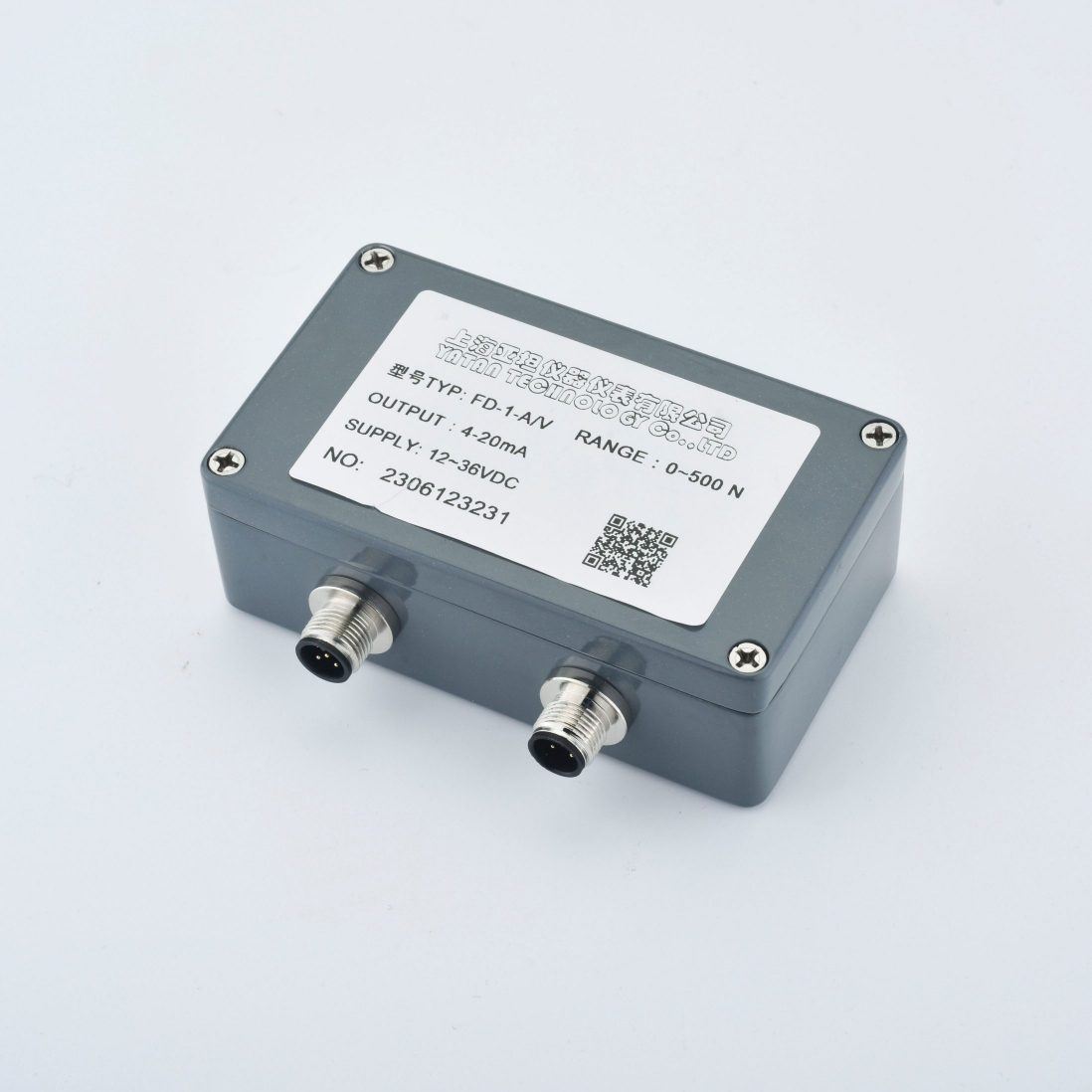

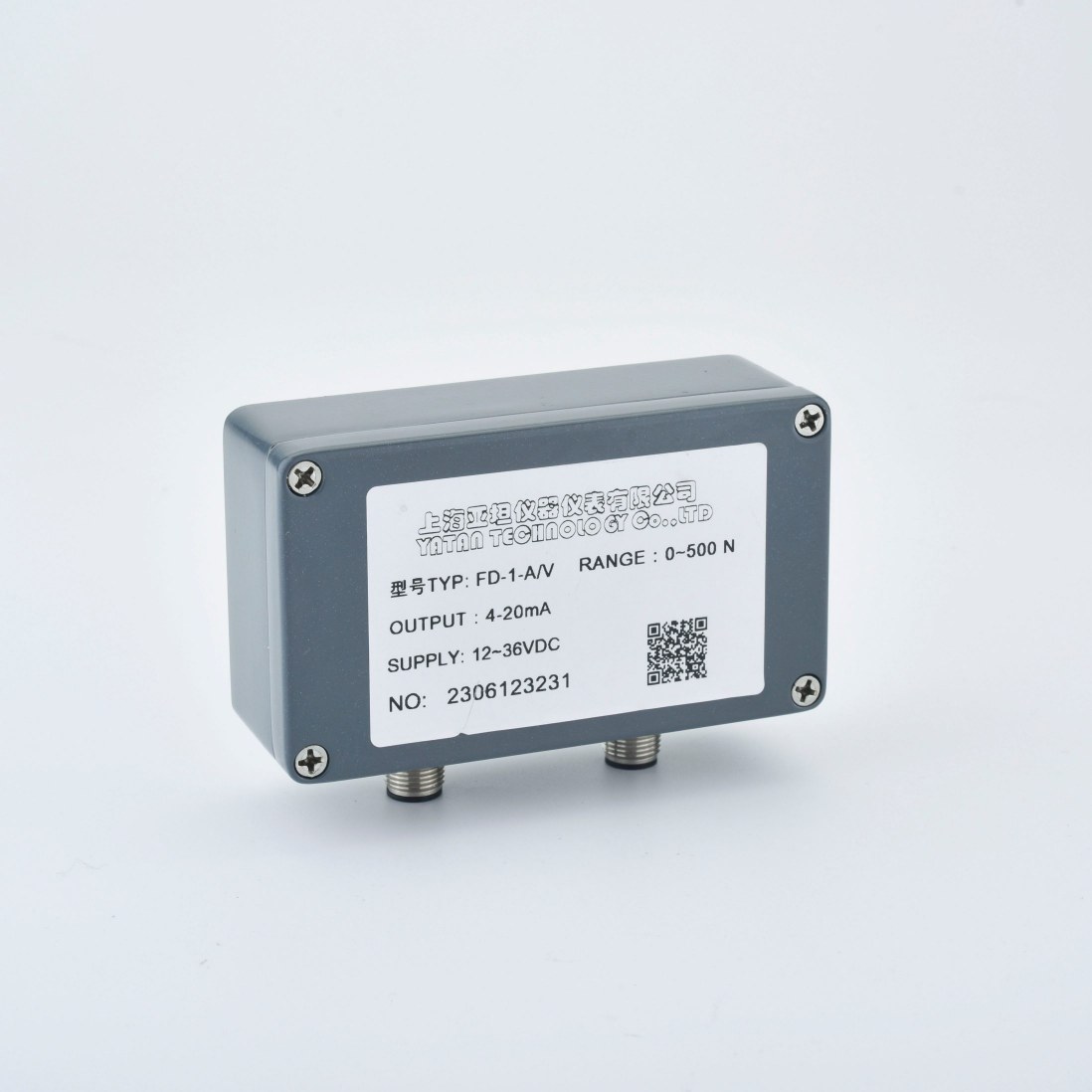

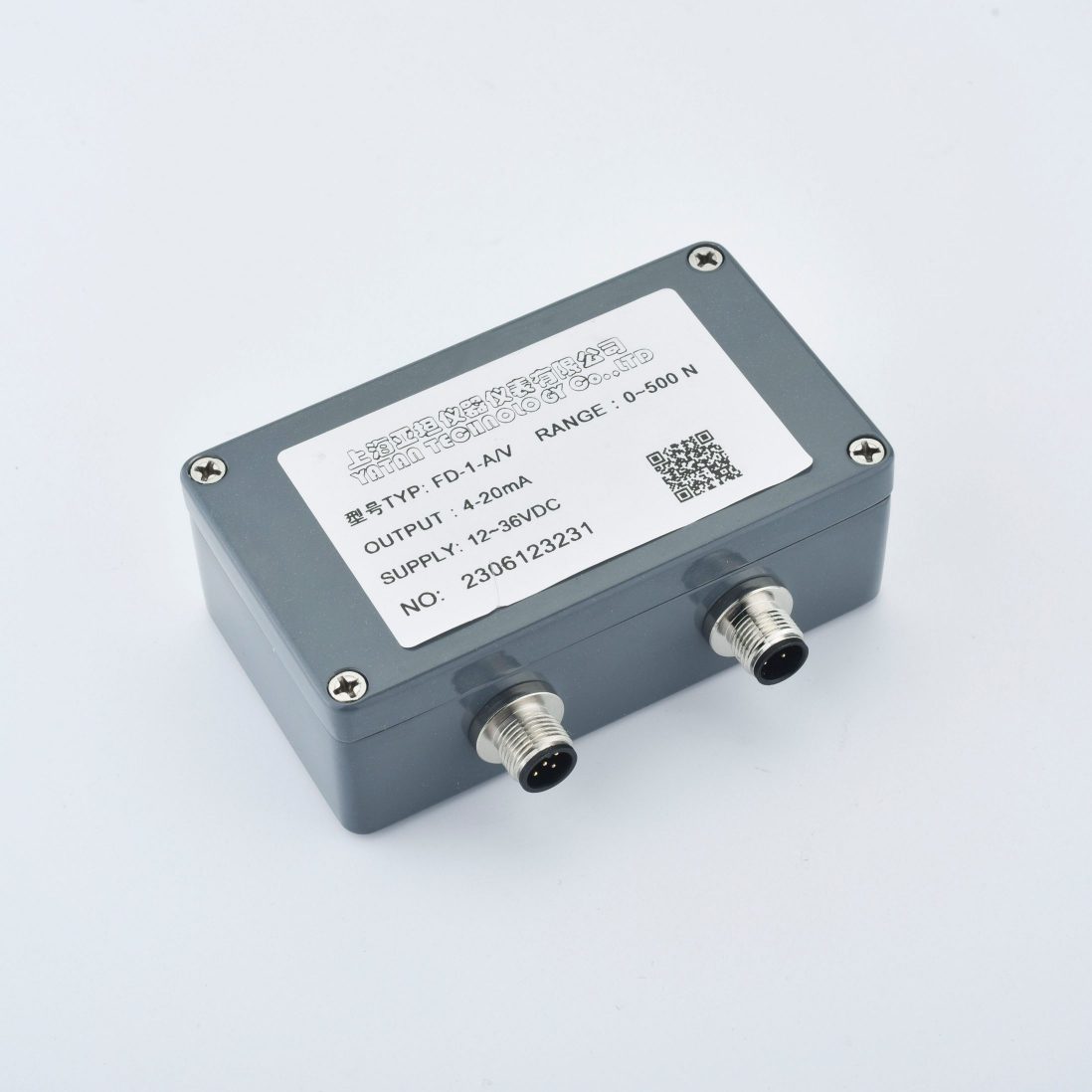

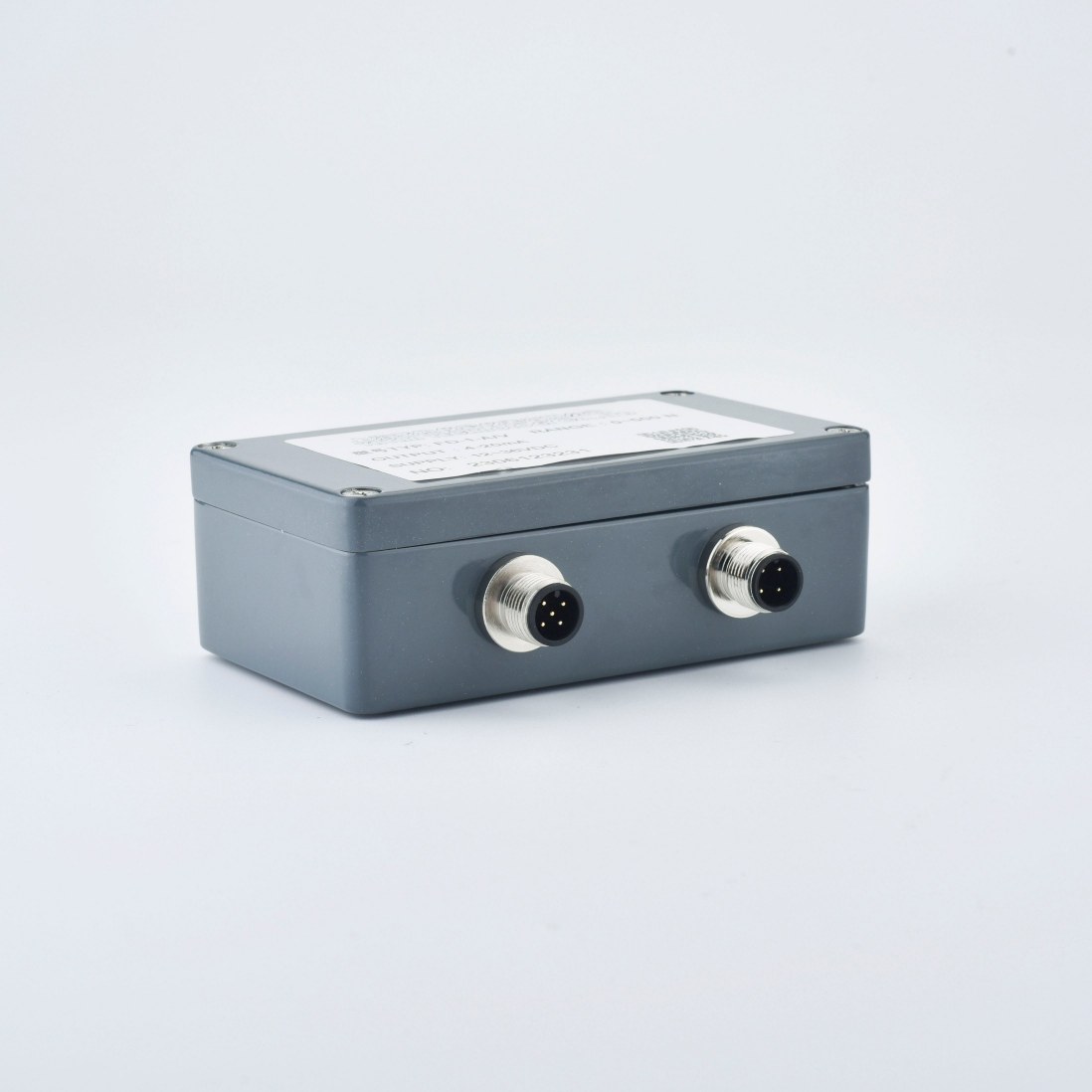

Yatan FD-1-A(V-W1) High Precision Load Cell Signal Conditioner image frontYatan FD-1-A(V-W1) High Precision Load Cell Signal Conditioner image backYatan FD-1-A(V-W1) High Precision Load Cell Signal Conditioner image sideYatan FD-1-A(V-W1) High Precision Load Cell Signal Conditioner image top
Yatan FD-1-A(V-W1) High Precision Load Cell Signal Conditioner main image

Yatan FD-1-A(V-W1) High Precision Load Cell Signal Conditioner

The FD-1-A(V-W1) high precision signal conditioner is an industrial-grade device designed for strain gauge load cells, converting millivolt signals into standard outputs such as 0–5V, 0–10V, and 4–20mA. Featuring a high-accuracy, low temperature drift circuit, it delivers up to 0.01% FS precision with excellent anti-interference performance, ensuring reliable operation in demanding industrial environments. Its die-cast aluminum housing with IP67 protection provides durability under harsh conditions like humidity and dust. With strong load-driving capability, it supports multiple sensor connections, making it ideal for applications such as industrial weighing systems, force measurement, batching control, and process automation.

Request a Quote

1. Key Features

2. Technical Specifications

General Electrical Data

Power supply 24VDC(12–30VDC)
Excitation voltage 5VDC
Input signal range 0.5mV/V to 3mV/V
Output signal options 4–20mA, 0–5V, 0–10V, ±5V, ±10V
Full-scale voltage temperature drift 8ppm/°C
Full-scale current temperature drift 8ppm/°C
Zero drift 0.001mV/°C
Voltage zero adjustment range 50%FS
Linearity 0.01%FS
Accuracy (comprehensive) 0.5%FS, 0.2%FS, 0.1%FS, 0.05%FS, 0.02%FS, 0.01%FS
Voltage full-scale adjustment range 5%FS
Current zero adjustment range 3% FS
Current full-scale adjustment range 5%FS
Operating environment -40°C to 85°C
storage -40°C to 85°C; humidity <85% RH (non-condensing)

3. Applications

4. Selection Guide

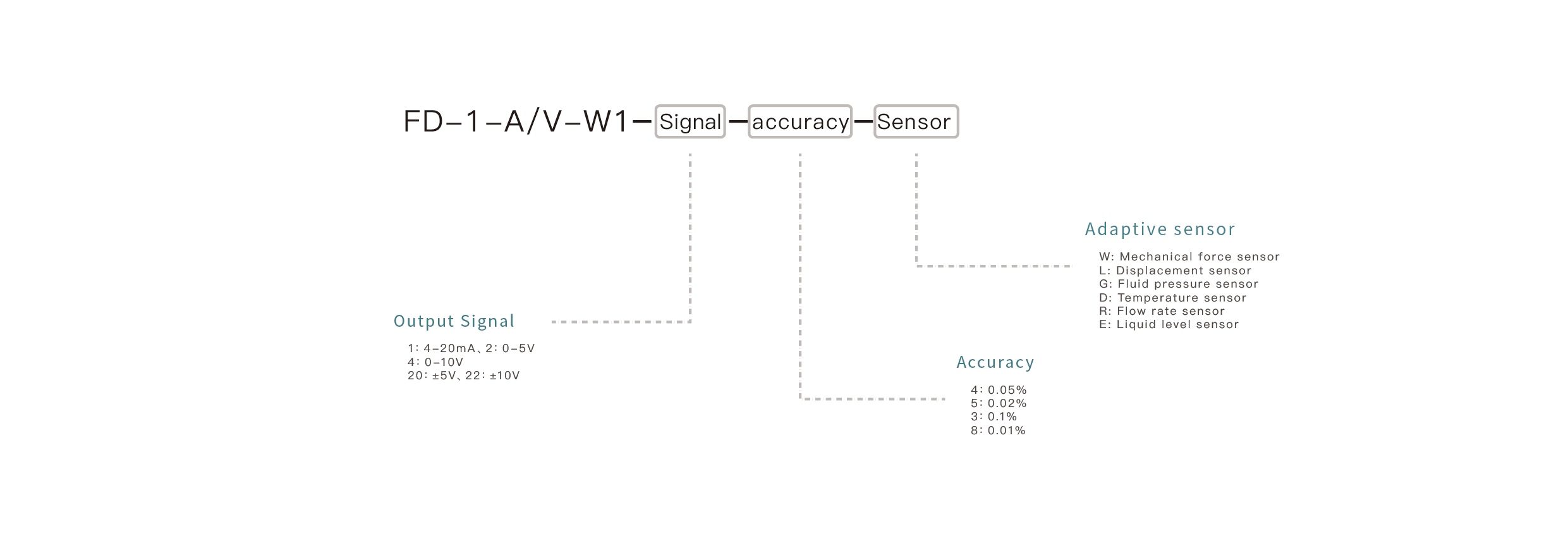

Pressure Sensor Selection Key Points: Confirm the measuring range, match the output signal, ensure media compatibility, select the appropriate mounting interface, and define the accuracy requirements.

5. FAQ (Frequently Asked Questions)

Q1: Why choose the Yatan FD-1-A(V-W1) high precision signal conditioner?

Shanghai Yatan specializes in industrial measurement and signal conditioning, offering high accuracy, low drift, strong interference resistance, and reliable performance for automation applications.

Q2: Is calibration of the Yatan FD-1-A(V-W1) signal conditioner complicated?

No, it supports easy zero and full-scale adjustment, allowing quick setup for different sensors and applications.

Q3: What is the power supply requirement for the Yatan FD-1-A(V-W1)?

It operates on 24VDC and supports a wide input range of 12–30VDC, making it suitable for various industrial power systems.

Q4: Does the Yatan FD-1-A(V-W1) support simultaneous voltage and current output?

Yes, it supports both voltage and current outputs simultaneously for flexible integration with multiple systems.

Q5: Is the Yatan FD-1-A(V-W1) reliable in harsh environments?

Yes, with a die-cast aluminum housing and IP67 protection rating, it operates reliably in harsh environments such as dust, moisture, and industrial conditions.

Q6: What applications is the Yatan FD-1-A(V-W1) signal conditioner suitable for?

It is widely used in industrial weighing systems, silo weighing, force testing equipment, material testing machines, and process control systems.

Q7: Can the Yatan FD-1-A(V-W1) signal conditioner connect multiple load cells?

Yes, it has strong load-driving capability and can connect multiple load cells via a junction box, ideal for large-scale weighing systems.

Q8: How accurate is the Yatan FD-1-A(V-W1) high precision signal conditioner?

It provides up to 0.01% full-scale accuracy with low temperature drift (8 ppm/°C), ensuring stable and reliable performance in demanding industrial environments.

Q9: What output signals does the Yatan FD-1-A(V-W1) signal conditioner support?

It supports multiple standard industrial outputs including 4-20mA, 0-5V, 0-10V, ±5V, and ±10V, making it compatible with PLC, DCS, and other control systems.

Q10: What types of sensors are compatible with the Yatan FD-1-A(V-W1) high precision signal conditioner?

The Yatan FD-1-A(V-W1) high precision signal conditioner is designed for strain gauge load cells, including weighing and force sensors, supporting input signals from 0.5 to 3 mV/V.
