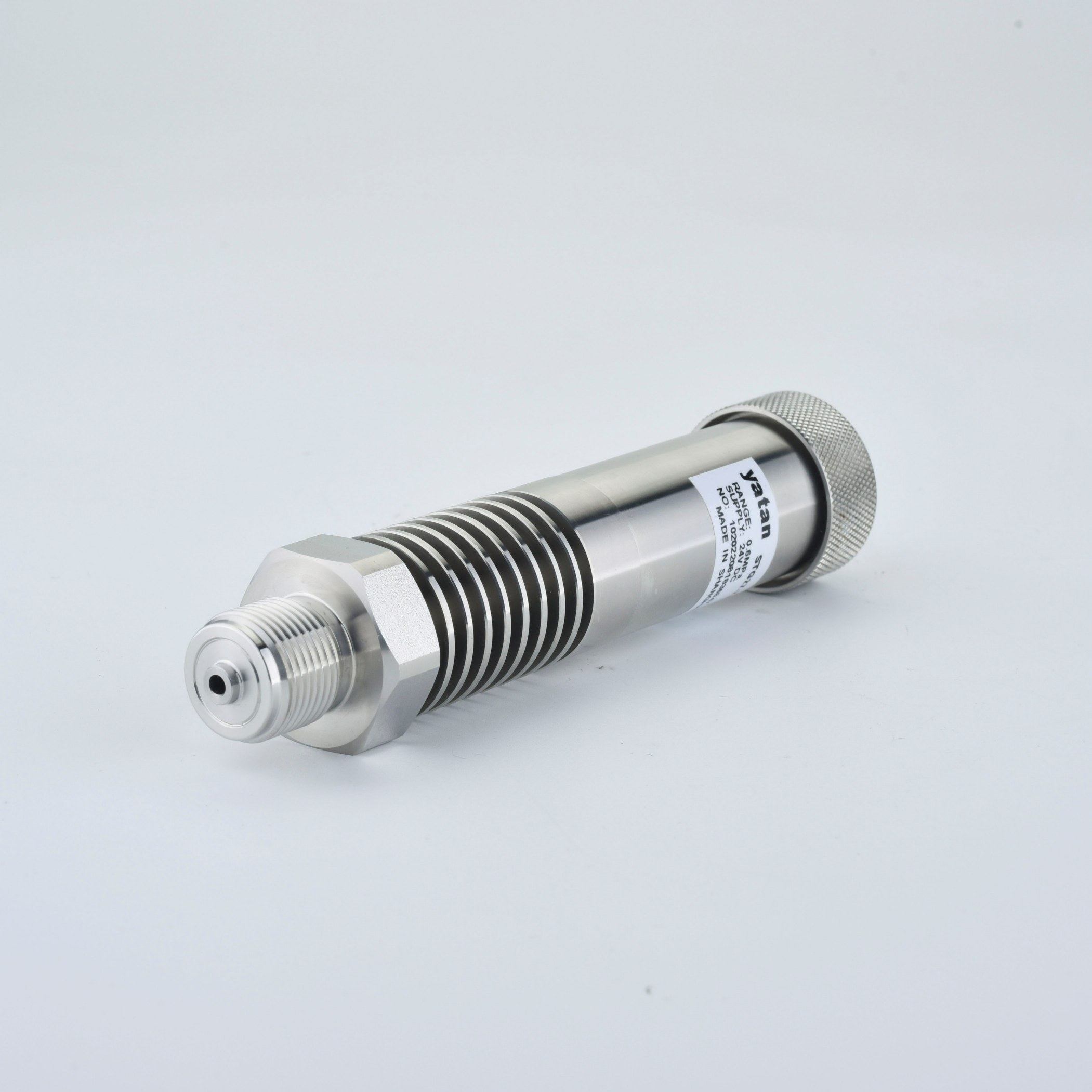

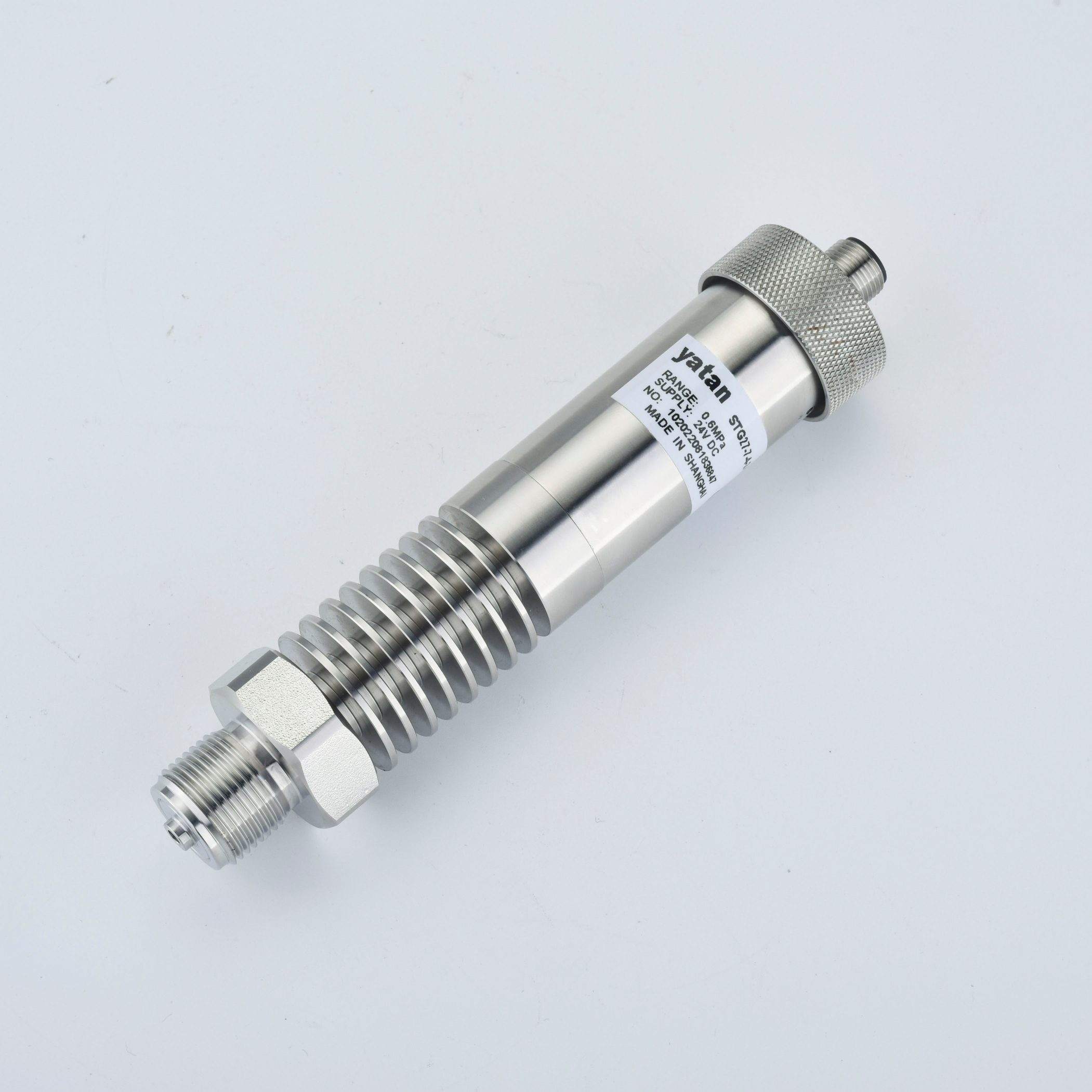

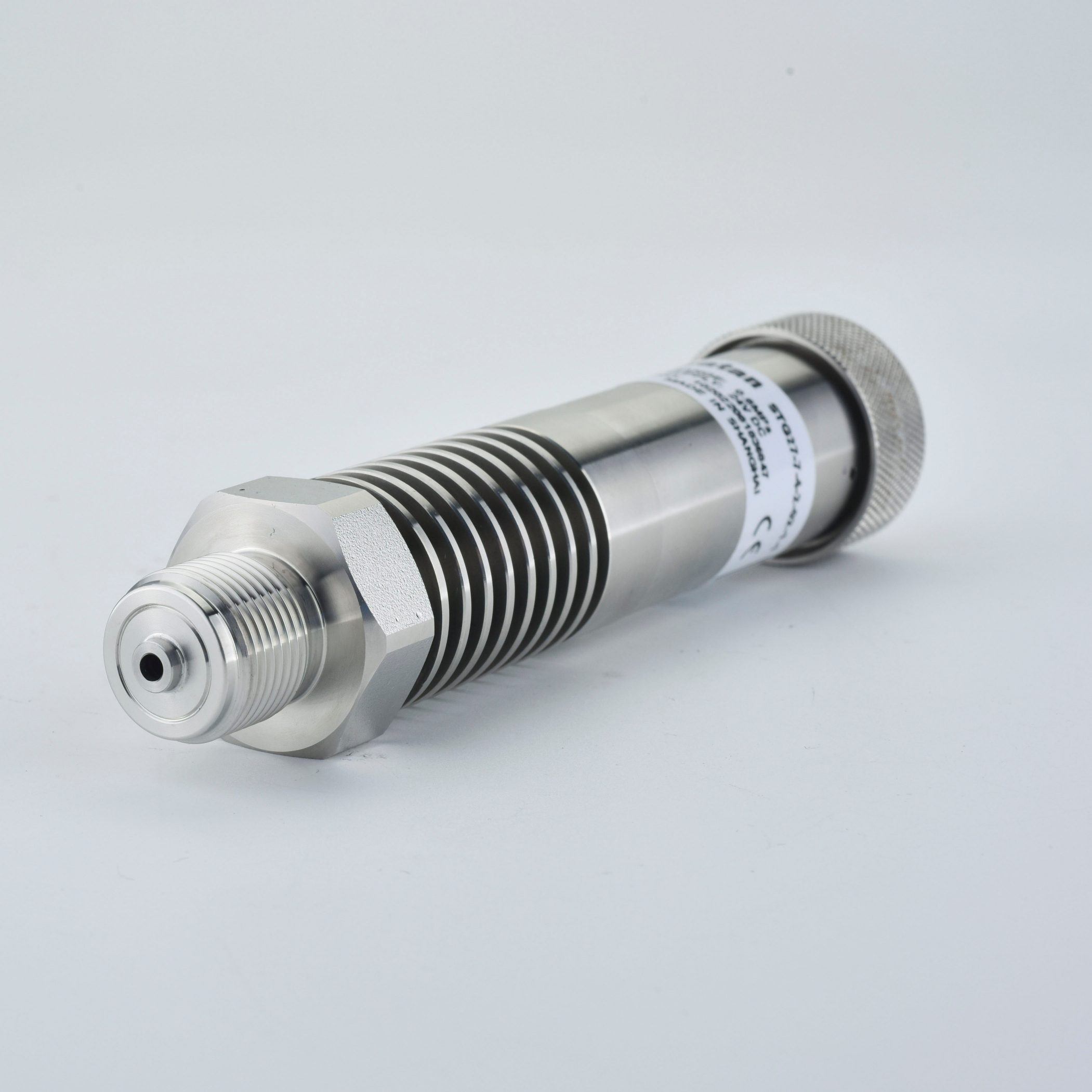

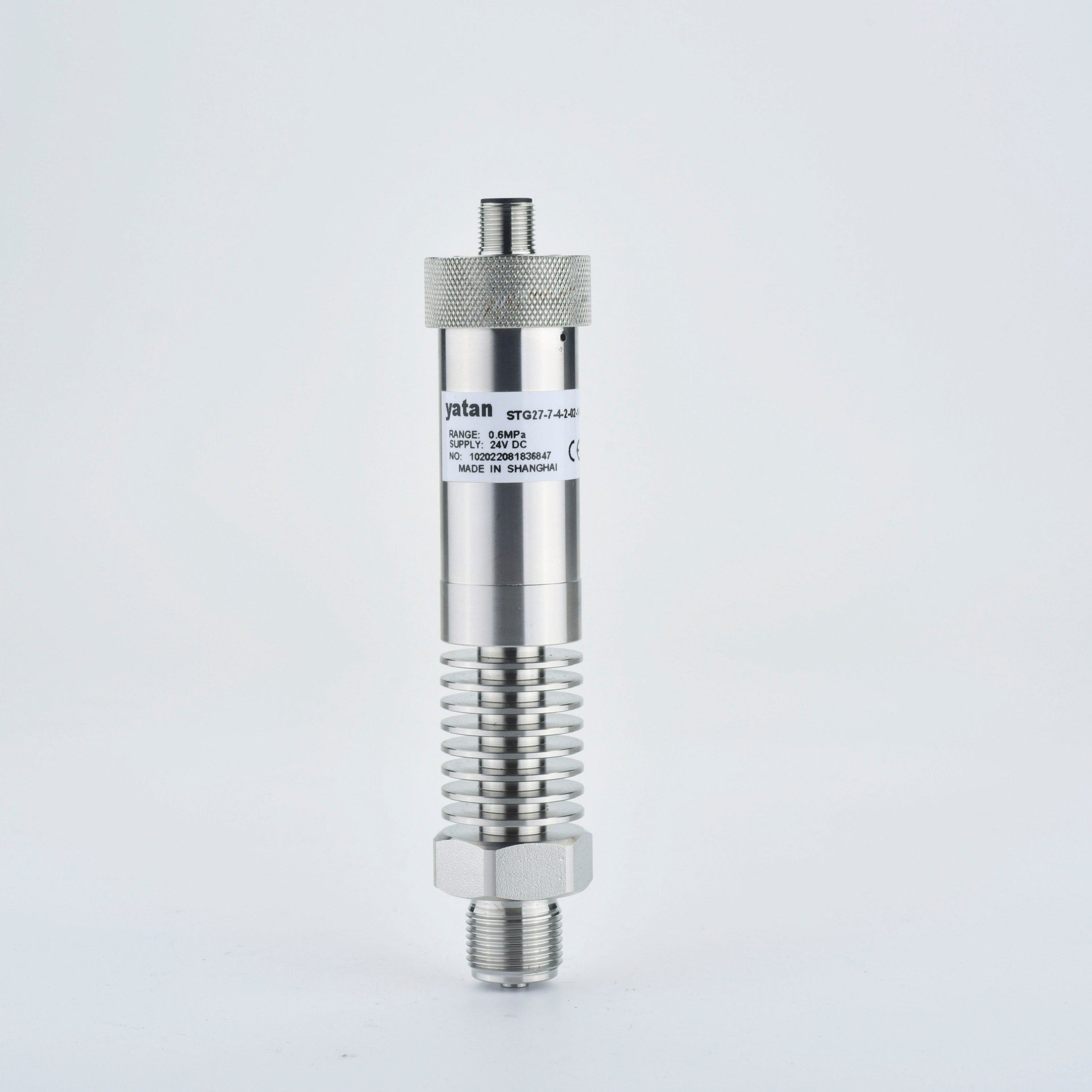

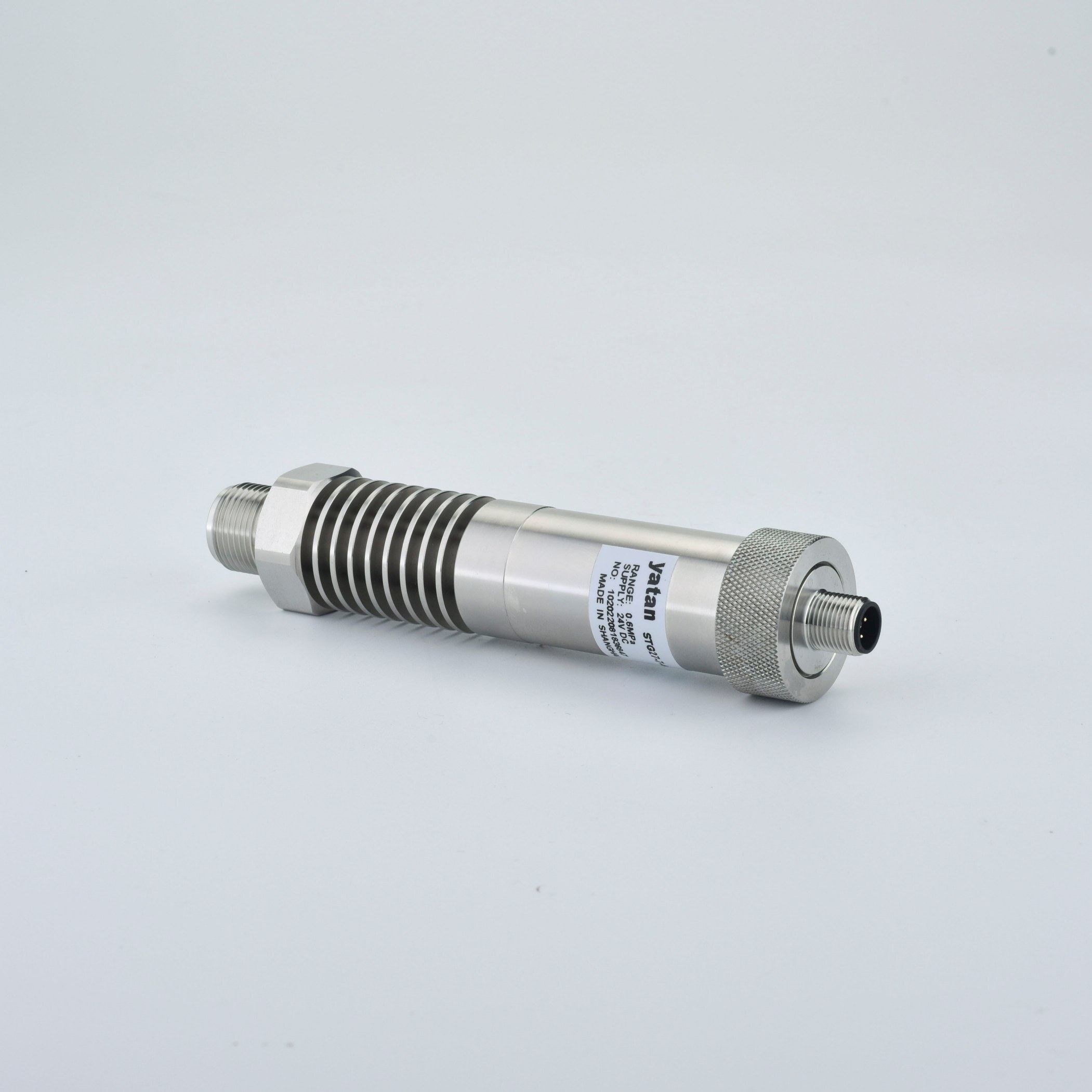

Q1: What applications is the STG27 Medium Temperature Pressure Transmitter suitable for?
The STG27 Medium Temperature Pressure Transmitter is widely used in steam systems, petrochemical industries, metallurgy, hydraulic systems, and industrial automation, especially for pressure measurement in medium to high temperature environments.
Q2: What is the maximum temperature the STG27 Medium Temperature Pressure Transmitter can measure?
The STG27 Medium Temperature Pressure Transmitter can measure media temperatures up to 300°C, with a built-in heat dissipation structure to ensure stable performance.
Q3: What output signals does the STG27 Medium Temperature Pressure Transmitter support?
It supports multiple standard industrial outputs, including 4-20mA, 0-5V, and 0-10V, ensuring compatibility with various control systems.
Q4: What is the protection rating of the STG27 Medium Temperature Pressure Transmitter?
The standard protection rating is IP67, with optional IP68, making it suitable for harsh and outdoor environments.
Q5: How accurate is the STG27 Medium Temperature Pressure Transmitter?
The Transmitter offers high accuracy of ±0.5% FS (optional ±0.2% FS) with excellent long-term stability for demanding industrial applications.
Q6: Can the STG27 Medium Temperature Pressure Transmitter be customized?
Yes, it supports customization of pressure connections, output signals, and electrical interfaces, with OEM/ODM services available.
Q7: Is the STG27 Medium Temperature Pressure Transmitter suitable for high-temperature steam applications?
Yes, the STG27 Medium Temperature Pressure Transmitter is designed for medium to high temperature environments, supporting media temperatures up to 300°C. Its built-in heat dissipation structure ensures reliable performance in steam systems and boiler applications.
Q8: Is the STG27 Medium Temperature Pressure Transmitter corrosion-resistant?
Yes, the STG27 Medium Temperature Pressure Transmitter features a stainless steel housing (304) and is compatible with 316L media, providing excellent corrosion resistance for use in harsh environments such as petrochemical and industrial processes.
