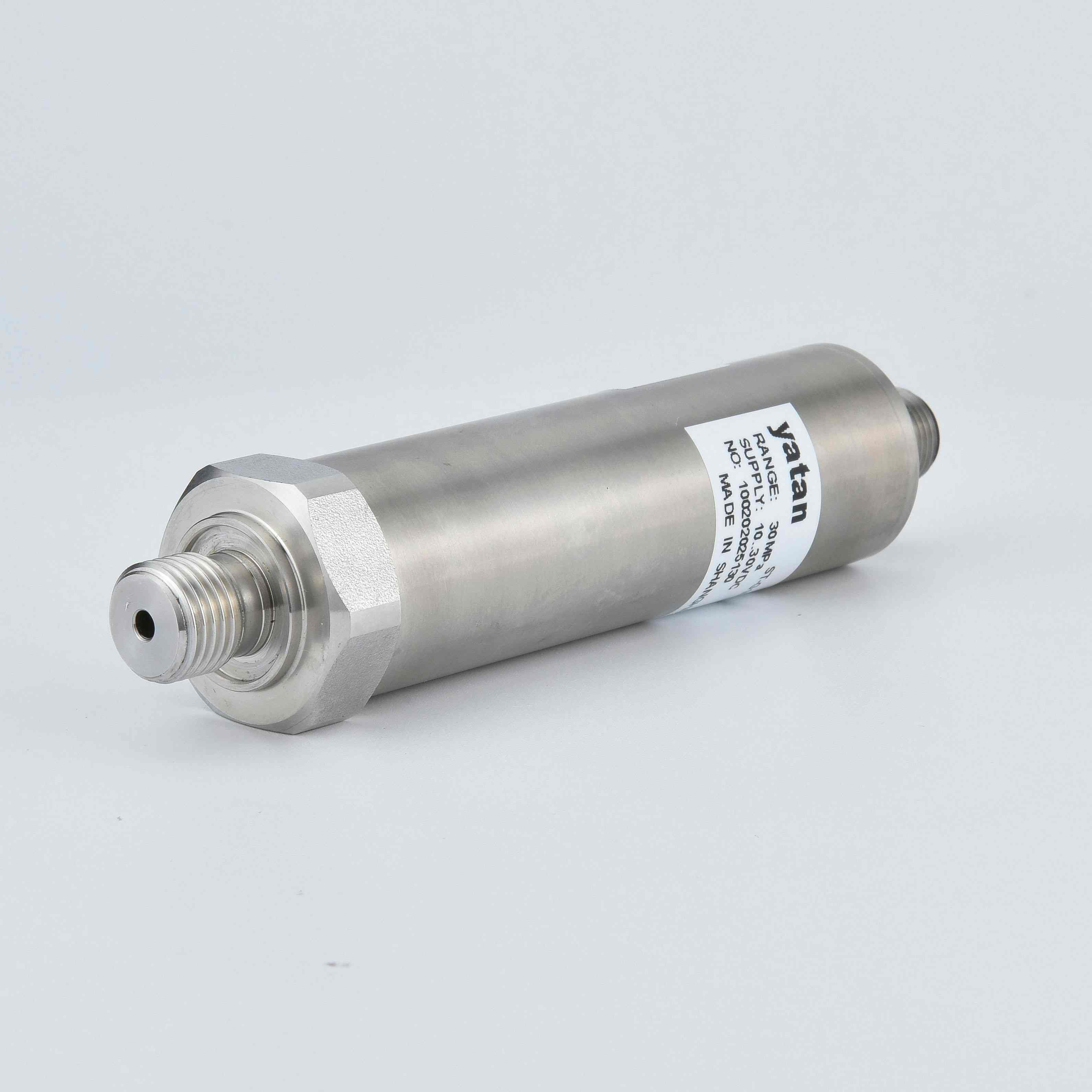

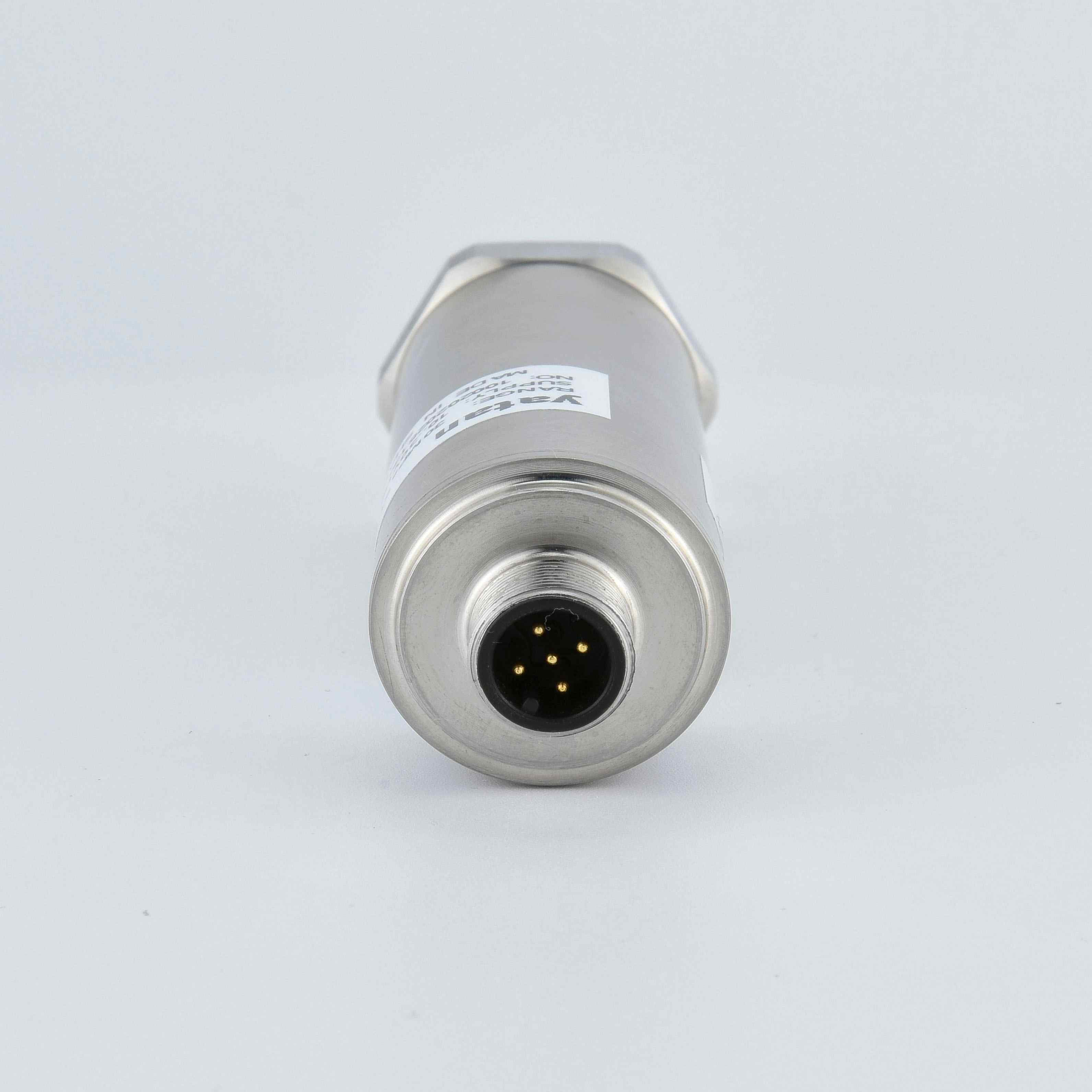

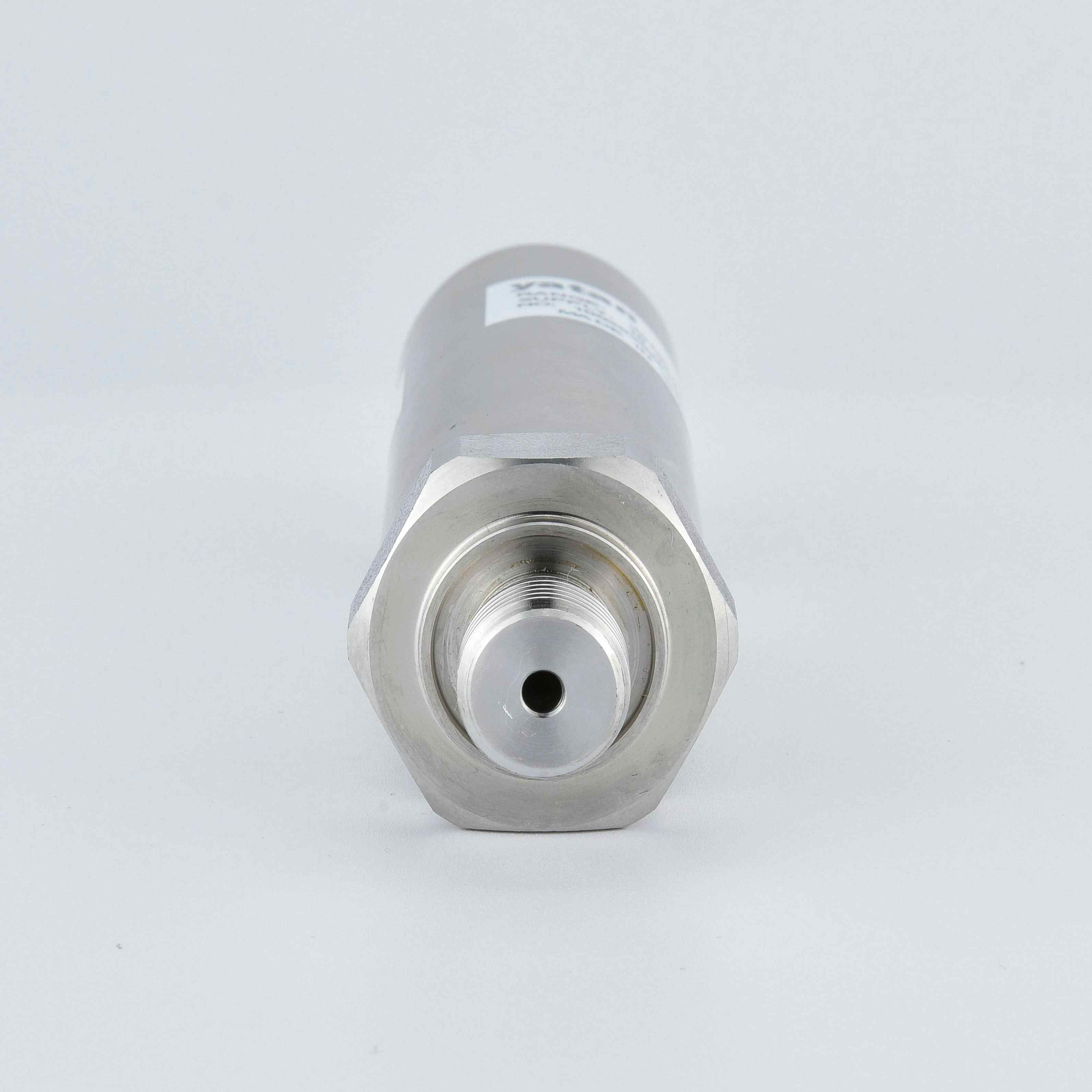

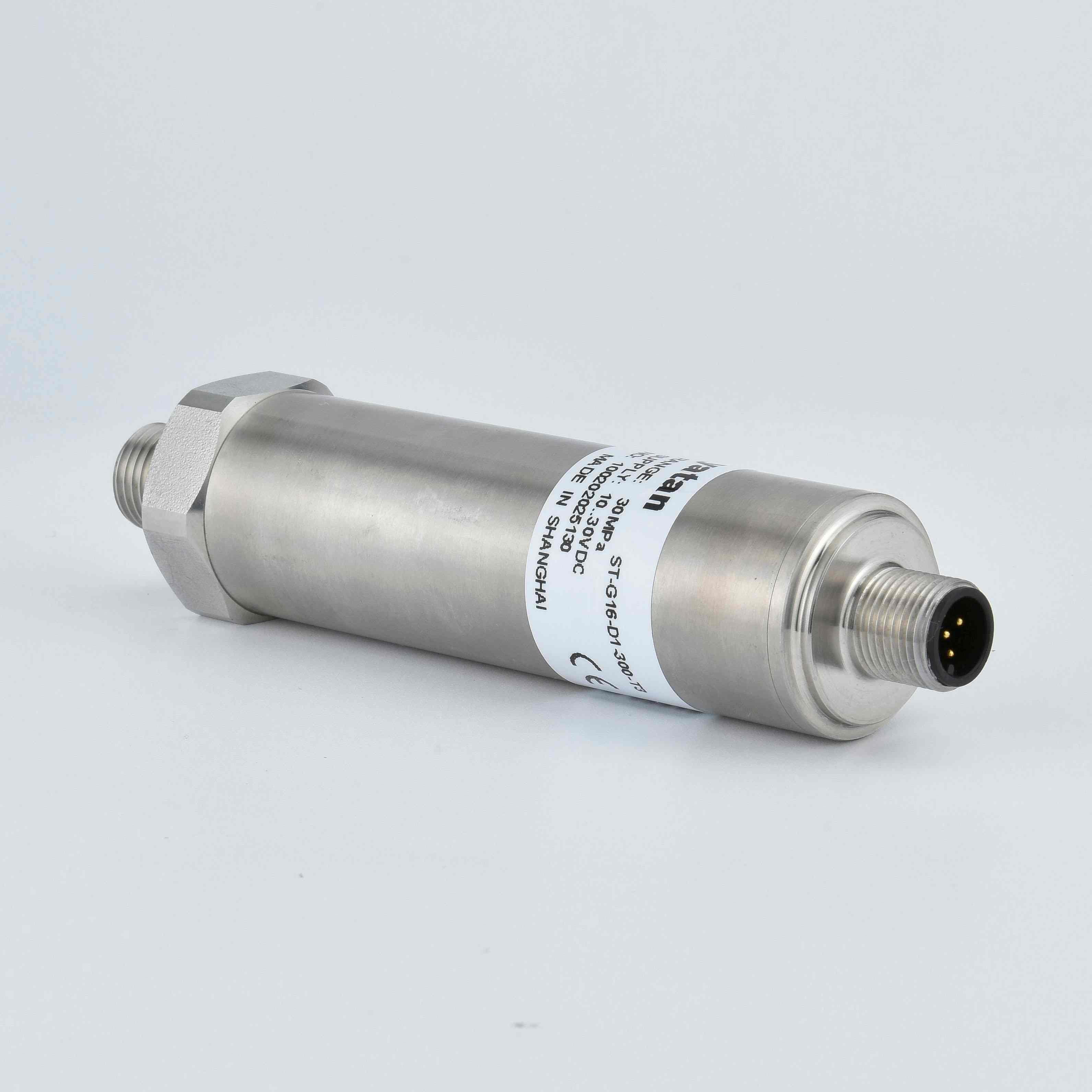

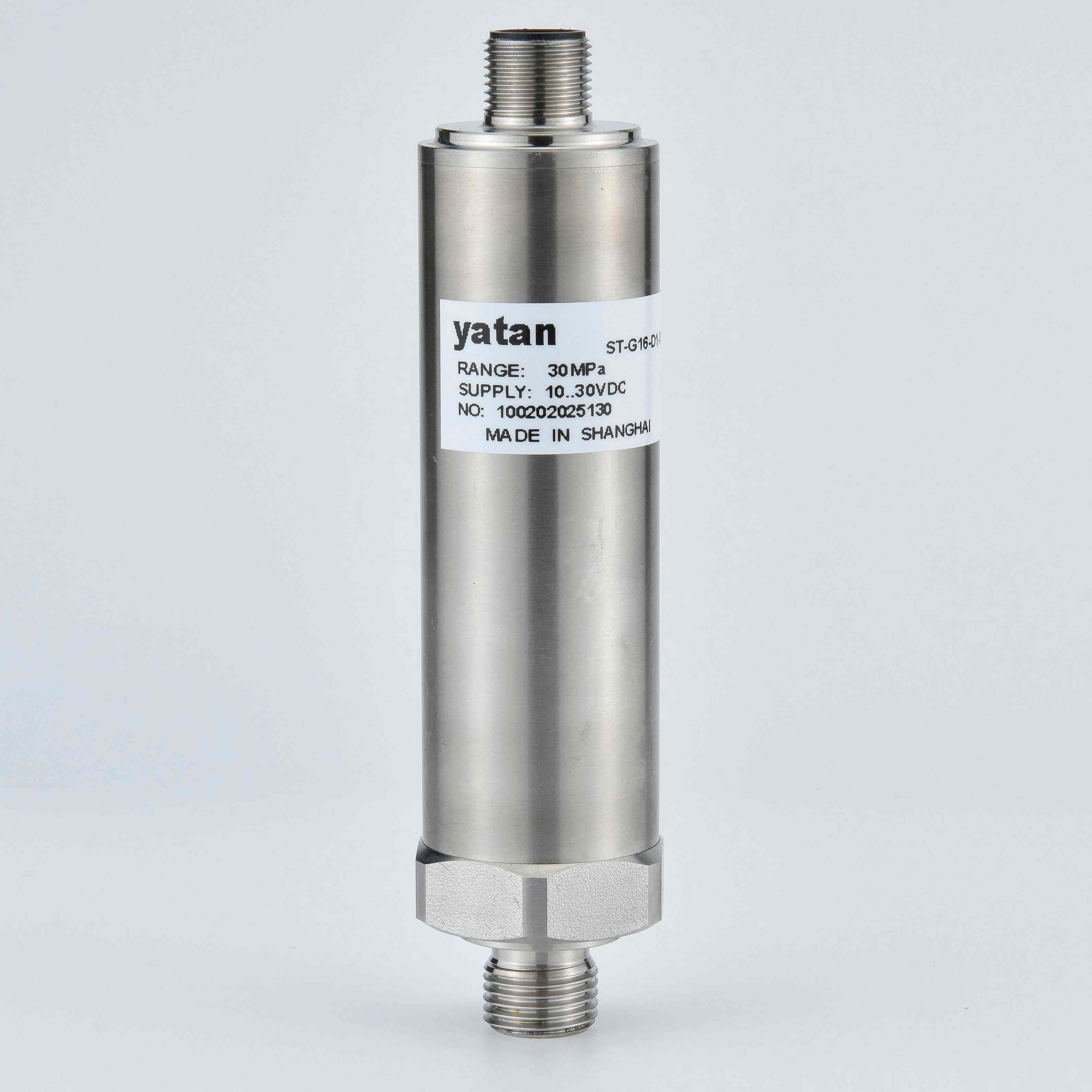

STG16 Integrated Temperature and Pressure Transmitter

The STG16 integrated temperature and pressure transmitter is a high-precision industrial sensor designed for simultaneous pressure and temperature measurement. It adopts a stainless steel isolated diaphragm silicon piezoresistive sensor for pressure detection and integrates a high-accuracy PT100 temperature sensor. With advanced laser calibration and full temperature compensation technology, it ensures stable and reliable performance across a wide temperature range. The transmitter supports multiple output options including Modbus-RTU RS485, CANopen, dual 4-20mA, and 4-20mA + PT100, meeting diverse industrial communication requirements. Featuring a fully stainless steel structure with IP67/IP68 protection, it offers excellent resistance to vibration, shock, and electromagnetic interference (EMC compliance). It is widely used in construction machinery, industrial automation, hydraulic systems, scientific instruments, and harsh industrial environments for accurate pressure and temperature monitoring.

Request a Quote

1. Key Features

Integrated pressure and temperature measurement
All stainless steel construction
Waterproof aviation connector output with IP67 protection rating
Multiple output signal types and various pressure connection options
Compliant with EMC protection requirements

2. Technical Specifications

General Electrical Data

Pressure Range	0–0.1 to 700 bar
Temperature Measurement Range	-40°C to 125°C
Pressure Reference	Gauge
Output signals	ModbusRTU(RS485), CANopen, dual 4–20mA outputs, 4–20mA + PT100
Supply Voltage	24VDC

Performance Specifications

Accuracy	±0.5%F.S.,±0.2%F.S.
Long-term Stability	≤ ±0.2%F.S./year
Overpressure	200% FS
Burst pressure	500% FS
Temperature Compensation Range (accuracy maintained within this range)	-20°C to +85°C, -40°C to +125°C
Operating temperature range	−40 to +125°C
Storage temperature range	−40 to +125°C
Media Temperature Range	-40°C to +125°C

3. Applications

Suitable for scientific instruments
Industrial equipment
Construction machinery
Industrial automation and control systems
Other industrial applications

4. Selection Guide

Pressure Sensor Selection Key Points: Confirm the measuring range, match the output signal, ensure media compatibility, select the appropriate mounting interface, and define the accuracy requirements.

5. FAQ (Frequently Asked Questions)

Q1: Does the STG16 comply with EMC standards?

Yes, it complies with IEC 61000 EMC standards, ensuring strong resistance to electromagnetic interference.

Q2: Can the STG16 be customized?

Yes, it supports various pressure connections (G1/4, NPT, M12, etc.) and output signals, and customization is available upon request.

Q3: Is the STG16 waterproof?

Yes, it features a stainless steel housing with IP67 or IP68 protection rating, providing excellent resistance to water and dust.

Q4: How accurate is the STG16 transmitter?

The STG16 offers high accuracy of up to 0.2% FS and excellent long-term stability (≤±0.2% FS/year), ensuring reliable performance.

Q5: What is the measurement range of the STG16?

The pressure range is from 0~0.1 up to 700 bar, and the temperature range is from -40°C to +125°C, suitable for harsh industrial environments.

Q6: What applications is the STG16 suitable for?

It is widely used in construction machinery, hydraulic systems, industrial automation, scientific instruments, and process control where both pressure and temperature monitoring are required.

Q7: What output signals does the STG16 support?

The STG16 supports multiple output options including Modbus-RTU RS485, CANopen, dual 4-20mA, and 4-20mA with PT100, making it compatible with various industrial control systems.

Q8: What is a temperature and pressure transmitter?

A temperature and pressure transmitter is an integrated sensor that measures both pressure and temperature simultaneously. The STG16 combines a piezoresistive pressure sensor with a PT100 temperature sensor for efficient monitoring.

6. Related Products

7. Contact Us

📧 Email: sales@yatansensor.com, support@yatansensor.com

💬 WhatsApp:+86 185 1660 2370

8. Model Selection / Ordering Code

Please specify the full ordering code when requesting a quotation.

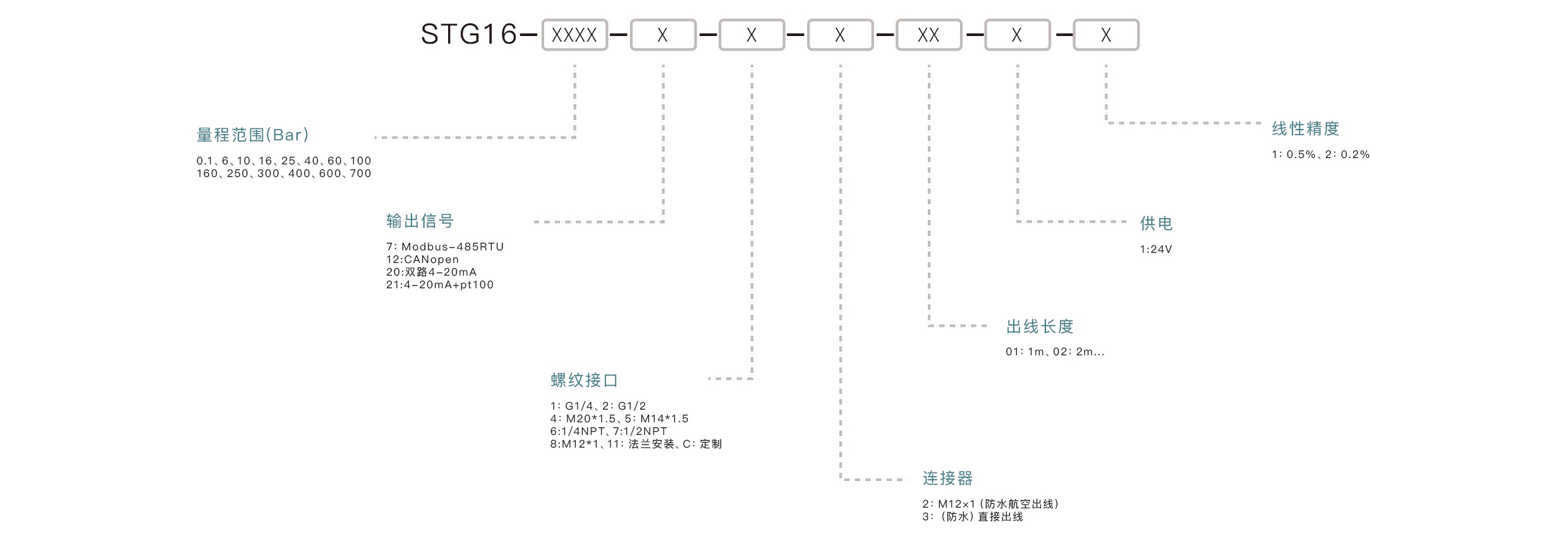

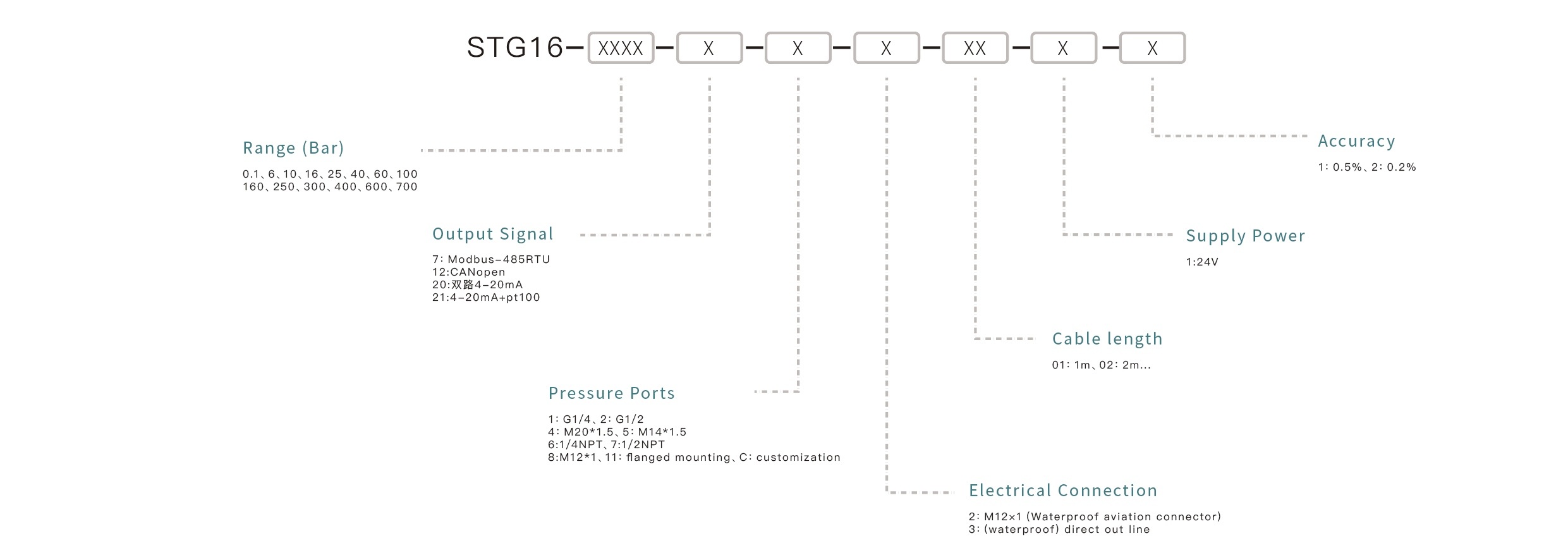

        Quantity - Model - Range - Output - Accuracy - Electrical Interface - Connector - Cable Length - Supply Voltage

        Example:
        1 pcs - STG16 - 0~100bar - 4-20mA - 0.5%- G1/4 - M12 - 1m - 24V
