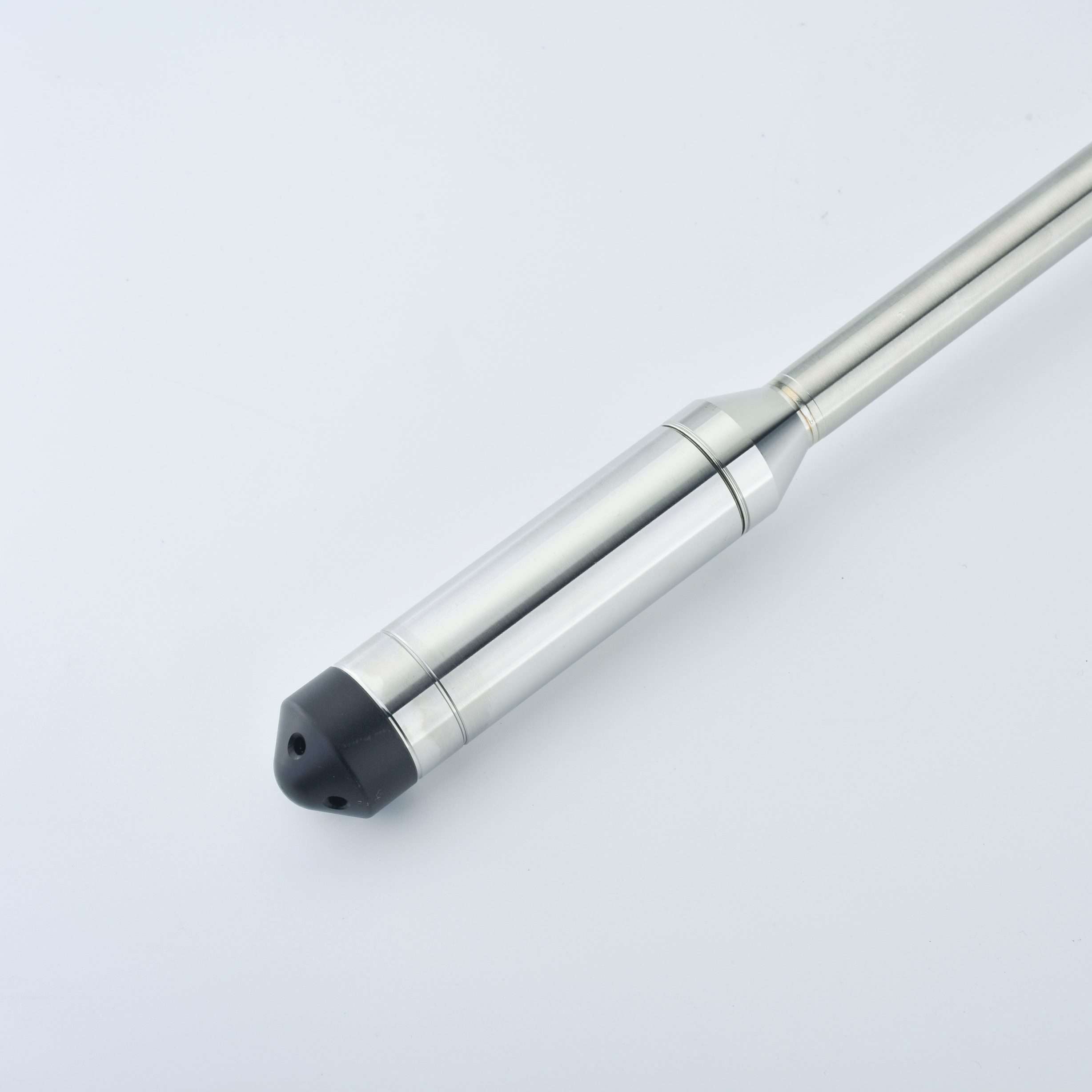

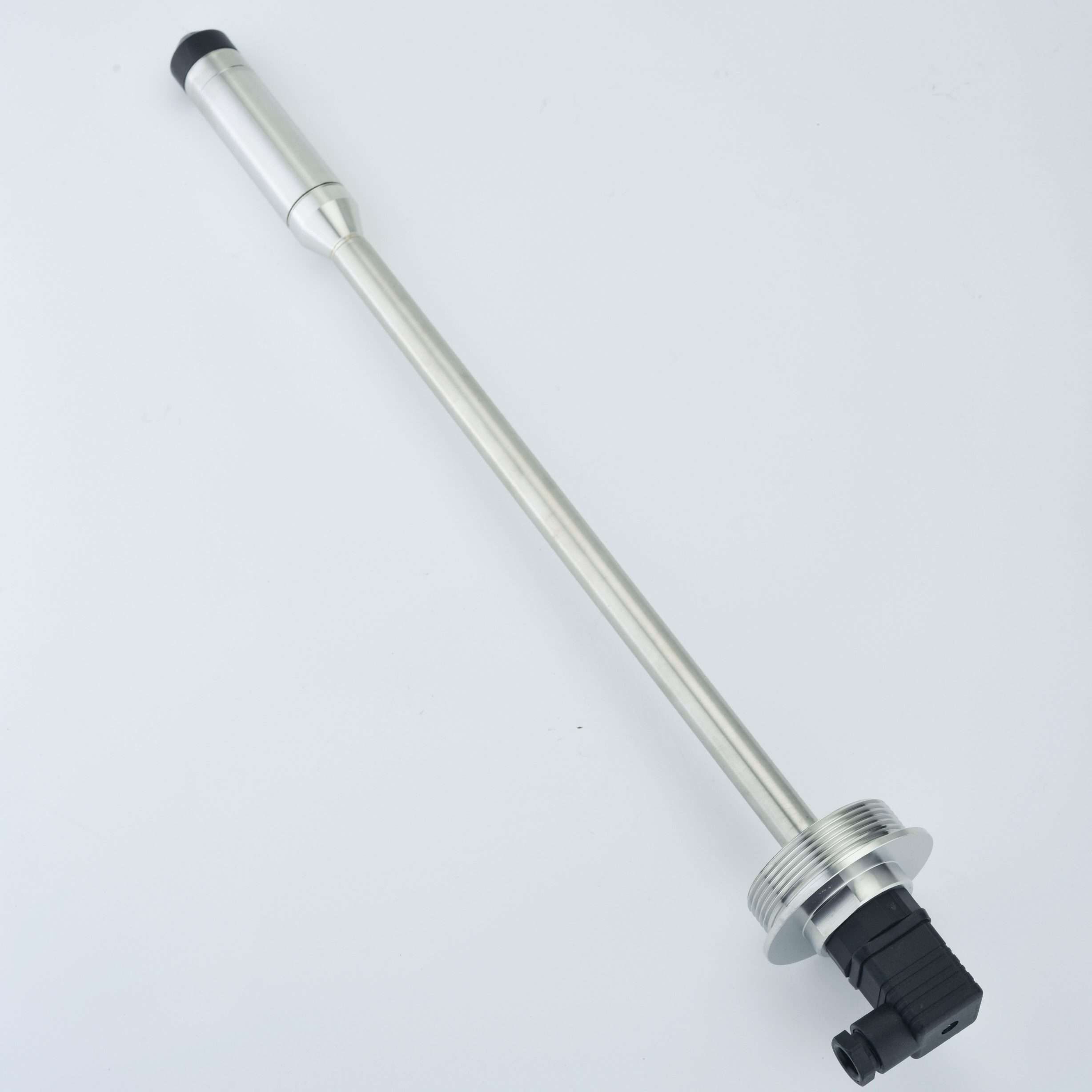

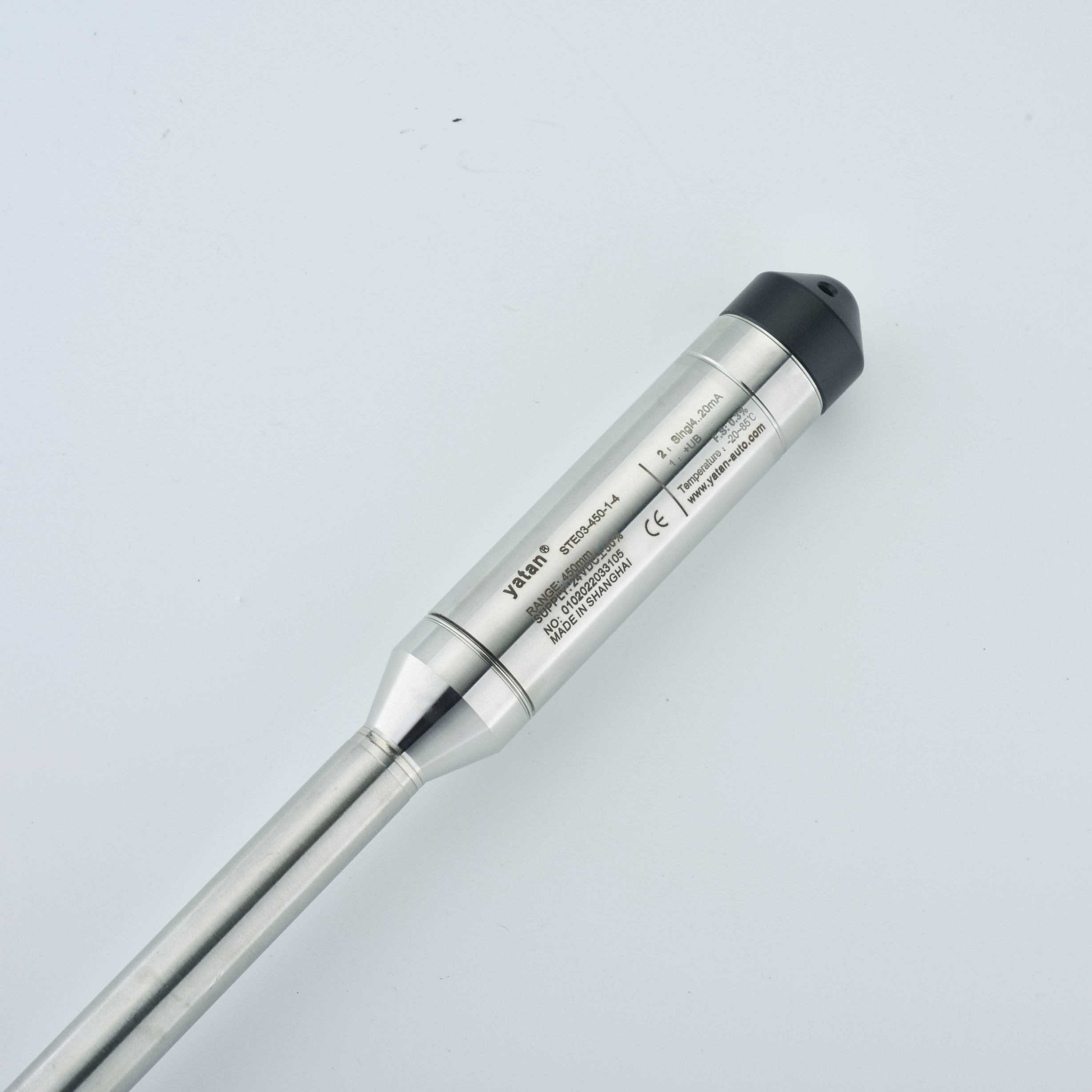

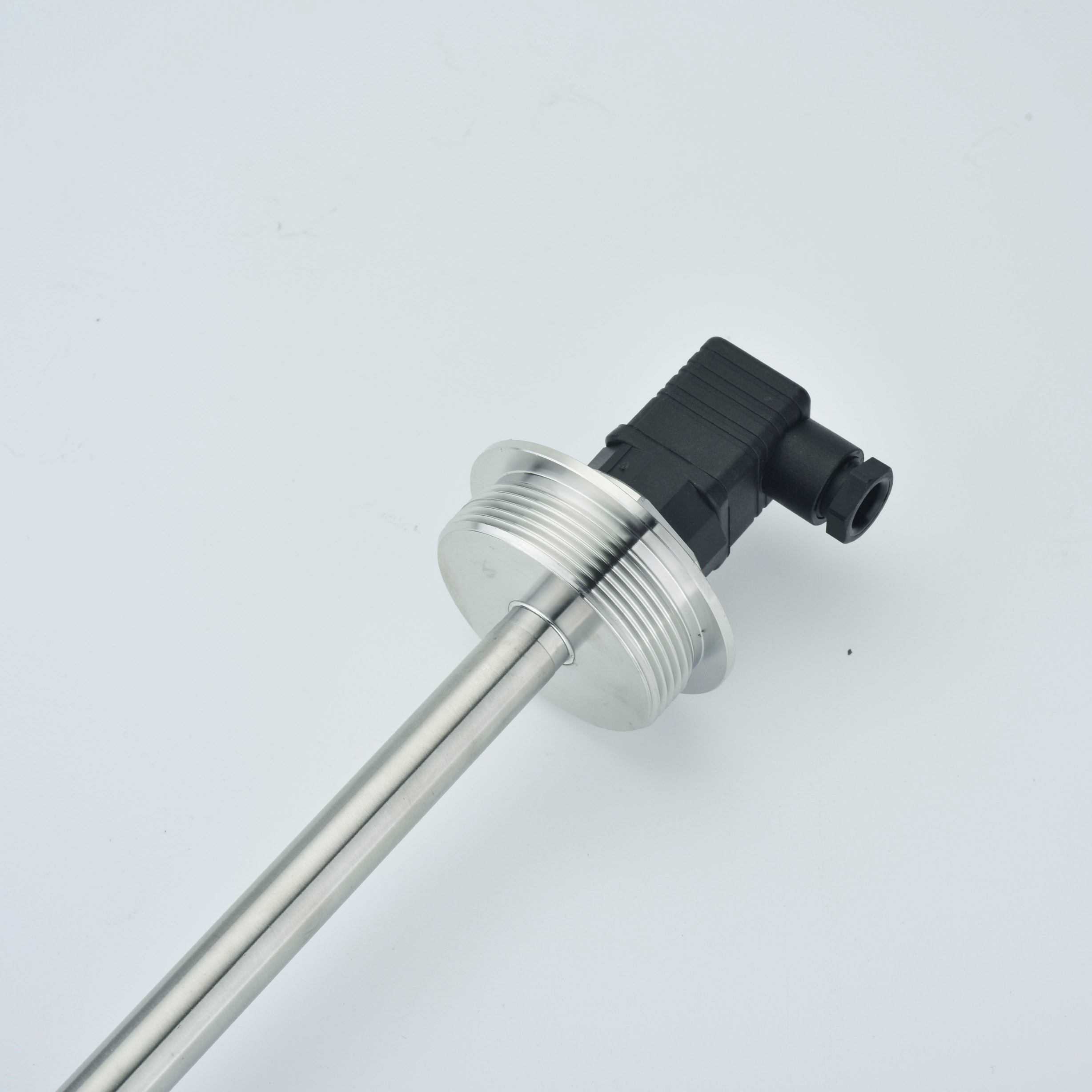

STE05 Level Sensor with Temperature Measurement
This submersible level transmitter features a probe-type insertion measurement design for easy installation and is widely used in water tanks, wells, rivers, and industrial water applications. Constructed with a full metal armored structure made of 304/316L stainless steel, it offers excellent corrosion resistance and high mechanical strength, making it suitable for harsh environments such as wastewater and seawater. Equipped with a high-precision sensing element, it achieves an accuracy of up to ±0.2% F.S and ensures long-term stability. The standard 4–20mA output signal allows seamless integration with various industrial control systems. With multiple protection designs and an IP67 rating, it provides strong resistance to vibration and shock, ensuring reliable performance in demanding conditions. An optional LCD display enables real-time level monitoring. With a measurement range of 0–200mH2O, it is an ideal solution for hydrostatic level measurement in tanks, reservoirs, lakes, and other liquid media applications.
