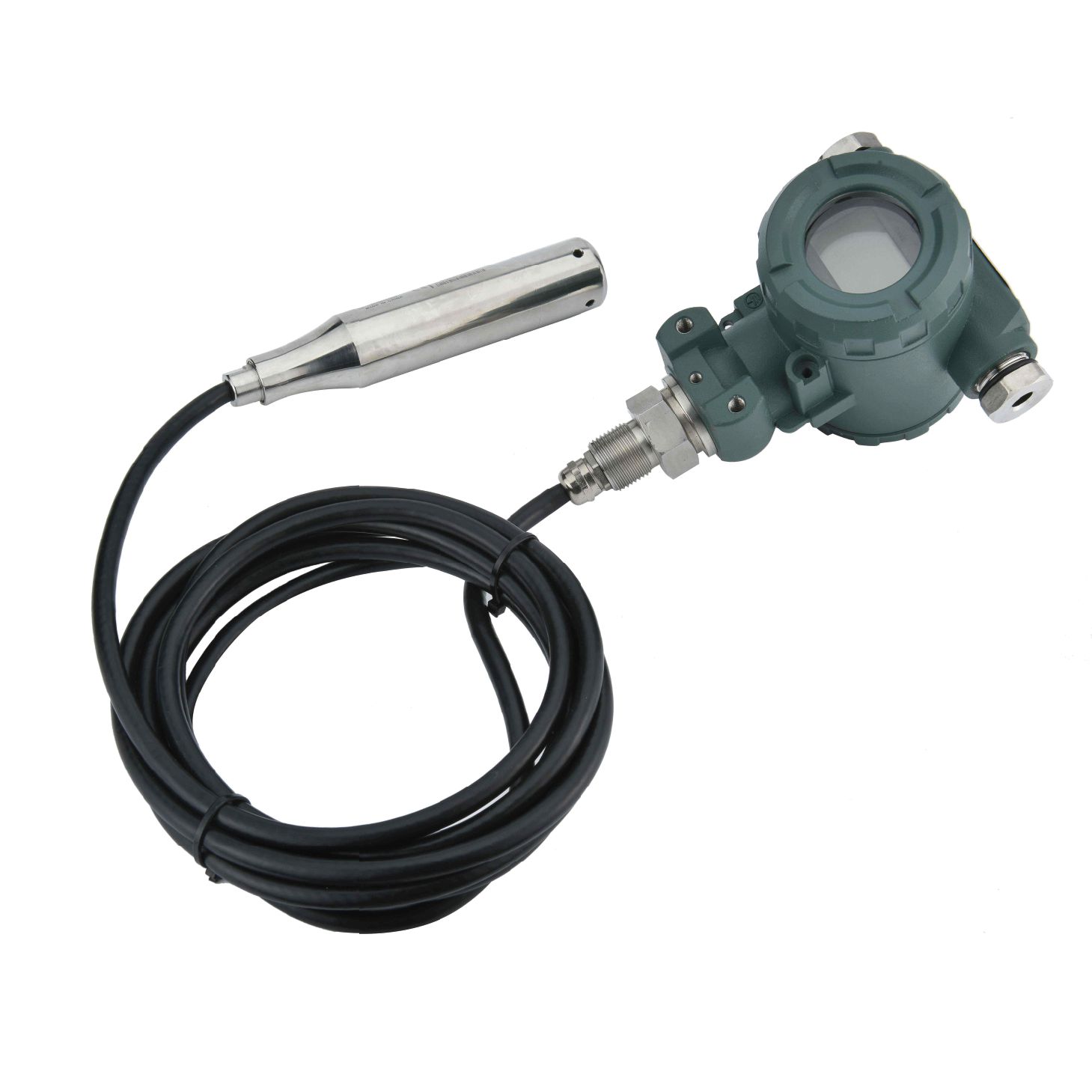

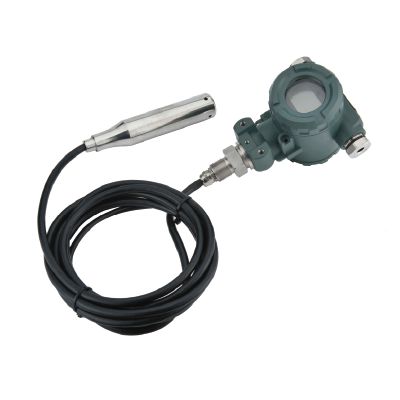

STE02 Smart Submersible Level Transmitter (IP68 High Accuracy) image frontSTE02 Smart Submersible Level Transmitter (IP68 High Accuracy) image back
STE02 Smart Submersible Level Transmitter (IP68 High Accuracy) main image

STE02 Smart Submersible Level Transmitter (IP68 High Accuracy)

The STE02 Level Transmitter utilizes high-performance diffused silicon or titanium alloy sensing elements to accurately measure hydrostatic pressure proportional to liquid depth and convert it into a standard 4–20mA output signal. This enables precise and reliable liquid level monitoring. Featuring an IP68 protection rating and submersible split-type design, the transmitter offers compact structure, excellent durability, and stable performance even in high-temperature and harsh environments. An integrated LCD display provides real-time level readings for improved on-site usability. The STE02 is widely used in industries such as oil & gas, chemical processing, power plants, municipal water supply, wastewater treatment, and hydrological monitoring. It is suitable for applications involving tanks, wells, sewage systems, rivers, seawater, and more. With high accuracy (up to ±0.1% F.S), outstanding long-term stability, and strong anti-interference capability, the STE02 is an ideal solution for industrial liquid level measurement and control.

1. Key Features

2. Technical Specifications

General Electrical Data

Pressure range 0–0.5 to 200 mH2o
Pressure Reference Gauge
Output Signal 4–20mA
Supply Voltage 12 VDC / 24 VDC

Performance Specifications

Accuracy ±0.5% F.S., ±0.2% F.S., ±0.1% F.S.
Long-term Stability ≤ ±0.2%F.S./year
Overpressure 200% FS
Burst pressure 500% FS
Temperature Compensation Range (accuracy maintained within this range) -20°C to +85°C, -40°C to +125°C
Operating Temperature -40°C to +125°C
Storage temperature range −40 to +125°C
Media Temperature Range -40°C to +125°C

3. Applications

4. Selection Guide

Pressure Sensor Selection Key Points: Confirm the measuring range, match the output signal, ensure media compatibility, select the appropriate mounting interface, and define the accuracy requirements.

5. FAQ (Frequently Asked Questions)

Q1: What is the working principle of the STE02 Submersible Level Transmitter?

The STE02 Submersible Level Transmitter measures hydrostatic pressure proportional to liquid depth and converts it into a 4–20mA output signal. This ensures accurate and linear liquid level measurement for water, sewage, and industrial applications.

Q2: What media is the STE02 Level Transmitter suitable for?

The STE02 Level Transmitter is suitable for liquids that are non-corrosive to stainless steel 304/316L or titanium alloy, including water, wastewater, industrial liquids, rivers, and seawater.

Q3: How do you install the STE02 Submersible Level Transmitter?

The STE02 Submersible Level Transmitter is installed by directly immersing the probe into the liquid. Proper cable fixing and avoiding sediment contact are recommended to ensure stable and accurate measurement.

Q4: Can the STE02 Level Transmitter be used in high-temperature environments?

Yes, the STE02 Level Transmitter supports media temperatures up to 125°C, making it suitable for high-temperature liquid level measurement applications.

Q5: What is the accuracy of the STE02 Submersible Level Transmitter?

The STE02 Submersible Level Transmitter offers high accuracy up to ±0.1% F.S and excellent long-term stability of ≤±0.2% F.S/year, making it ideal for industrial automation systems.

Q6: What output signal does the STE02 Level Transmitter provide?

It provides a standard 4–20mA output signal, ensuring strong anti-interference capability and reliable long-distance transmission.

Q7: What are the typical applications of the STE02 Submersible Level Transmitter?

Typical applications include wells, tanks, wastewater treatment, rivers, seawater monitoring, oil & gas, chemical processing, power plants, and municipal water systems.

Q8: Is the STE02 Level Transmitter waterproof?

Yes, the STE02 Level Transmitter has an IP68 protection rating, allowing long-term submersion and reliable operation in harsh environments.

6. Related Products

7. Contact Us

📧 Email: sales@yatansensor.com,   support@yatansensor.com

💬 WhatsApp:+86 185 1660 2370

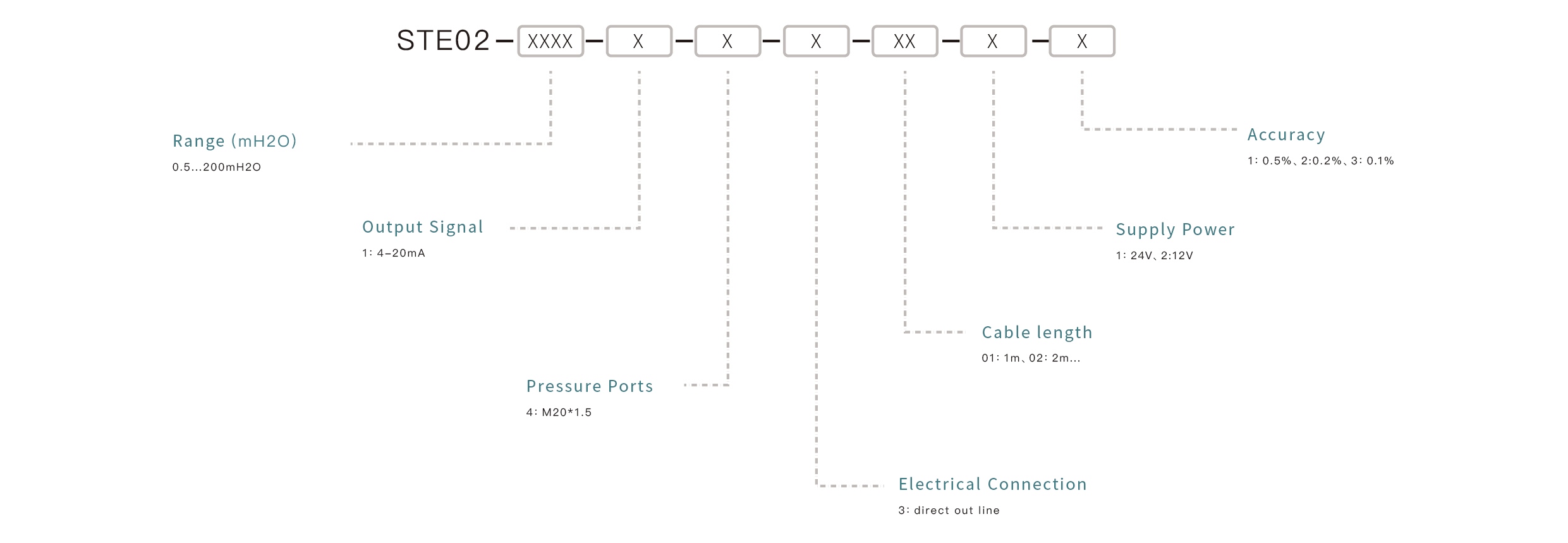

8. Model Selection / Ordering Code

Please specify the full ordering code when requesting a quotation.

        Model - Measuring Range - Output Signal - Thread Interface - Connector - Cable Length - Power Supply - Linearity Accuracy

        Example:
        STE01 - 100mH2O - 4~20mA - M20*1.5 - Direct cable outlet - 1m - 12VDC - 0.5%
